In the world of industrial automation, if there were an award for the most diligent "executor," the pneumatic cylinder would undoubtedly be among the top contenders. From welding and gripping on automotive production lines to precision assembly in electronics factories, and pushing and packing on food packaging lines, the pneumatic cylinder converts the energy of compressed air into mechanical power, completing one "push" and "pull" action after another.
And in the global pneumatics technology field, SMC is an unavoidable name. This Japanese company boasts over 11,000 basic series and more than 610,000 specifications of products, with its pneumatic components widely used in the automotive, semiconductor, robotics, and food packaging industries.As one of SMC's flagship products, the cylinder has evolved far beyond simple linear reciprocating motion, moving towards integration, intelligence, and high adaptability.
Today, let's talk about some of the star products in the SMC cylinder family and see how they excel in their respective "positions".
I. CQ2 Series: The "Space Magician" Among Thin-Type Cylinders
In many automated devices, space is a precious resource. Traditional round cylinders are often a headache for designers when it comes to layout due to their large size. SMC's CQ2 series slim cylinders were developed to solve this problem.

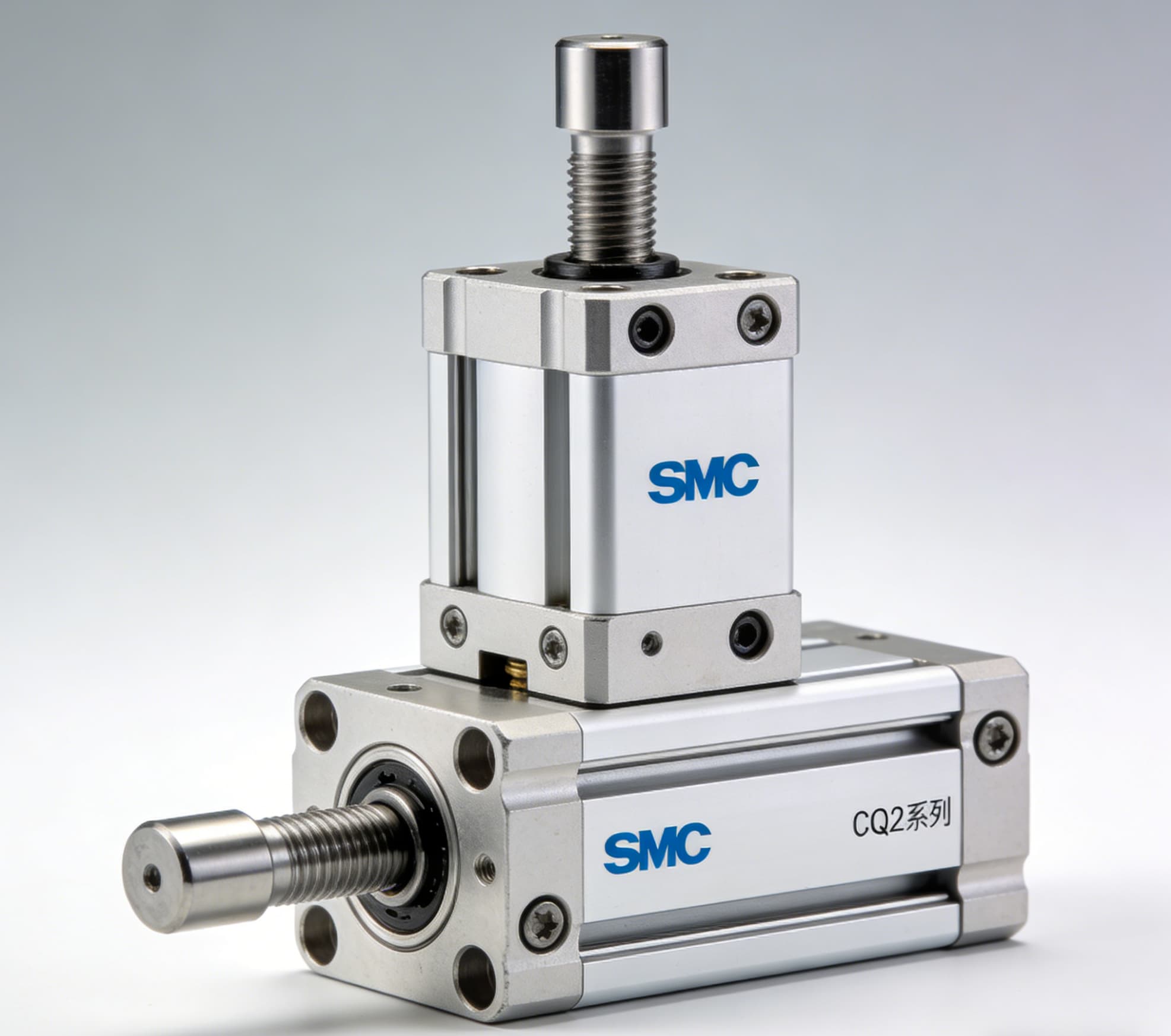

The most striking feature of the CQ2 series is its thinness. It integrates piping and magnetic switches on the same mounting surface, with the magnetic switch completely concealed within the cylinder body. This compact design allows for a smaller and lighter overall structure for the fixture and equipment. Imagine the design flexibility a successfully slimmed-down cylinder can offer within the confined space of a mobile phone assembly line.
Even more remarkable is that the CQ2 series doesn't sacrifice performance or adaptability while pursuing compactness. Its cylinder diameter covers an ultra-wide range from ø4 to ø200, handling everything from minute precision operations to heavy-duty industrial applications. Whether in cleanrooms, standard workshops, or harsh environments containing water, oil, dust, or even welding slag, the CQ2 series offers corresponding expansion options. According to customer field data, its long-life specifications have accumulated over 100 million cycles, demonstrating its exceptional reliability.
In short, the CQ2 series is an ideal choice for space-constrained scenarios; it is thin yet powerful, small yet extraordinary.
II. IN-777 Series: Servo Cylinders, Enabling Precise Positioning Even with Pneumatics
In most people's minds, the positioning accuracy of pneumatic cylinders is inferior to that of electric cylinders or servo motors because they rely on the compressibility of gas, and their speed is easily affected by load changes. However, SMC's IN-777 series servo cylinders break this stereotype.
The IN-777 series is a revolutionary product that integrates a servo valve, controller, and cylinder into a single design. It achieves multi-point positioning and precise control that traditional pneumatic cylinders struggle to accomplish, with a repeatability of ±0.5mm (tested under the conditions of a ø200mm cylinder, 200mm stroke, and a 70kg load). This means that pneumatic solutions can be applied in many scenarios where a certain level of positional accuracy is required, but extremely high precision is not necessary.
For example, in gate control at wastewater treatment plants or in flotation processes at mineral processing plants, valve openings need to be adjusted according to water level or slurry concentration. The IN-777 series can precisely control the cylinder's extension position like a servo electric cylinder, while retaining the advantages of pneumatic systems such as simple structure, lower cost, and explosion-proof safety.
In addition, it features several intelligent functions: self-diagnostic capabilities (via LED lights and signal outputs), easy initial setup (position setting via I/O signals), 10-level speed adjustment, and an emergency stop function in case of gas or power outages. These features simplify maintenance, eliminating the need for complex adjustments even when replacing parts.
In short, the IN-777 series is a perfect fusion of pneumatics and electronic control, providing a cost-effective new option for applications requiring multi-point positioning and process control.
III. MKB & MRQBS Series: Integrated "Compound Sports Experts"
In many automated processes, a single workstation may need to simultaneously perform compound actions such as clamping and rotating or extending and swinging. Traditional solutions often require separate linear and rotary cylinders, combined through complex connecting mechanisms, which is both space-consuming and increases potential failure points.
SMC's solution is to introduce functionally integrated cylinders, such as the MKB series rotary clamping cylinders and the MRQBS series extending and swinging cylinders.
MKB Series: Rotary Clamping Cylinder
The MKB16-20LZC is a typical rotary clamping cylinder that integrates rotation and clamping functions, achieving simultaneous 90° precise rotation and powerful clamping through pneumatic drive. With a 16mm bore and 20mm stroke, its extremely compact structure makes it particularly suitable for applications with high space utilization requirements, such as electronics assembly and automotive parts processing. Repeatability is ±0.1mm, and core components undergo special hardening treatment, ensuring a service life of over 10 million cycles. In robotic end-effector gripping, automated inspection equipment, or mold positioning, the MKB series effectively solves the problems of large space occupation and low coordination efficiency associated with traditional separate solutions.
MRQBS Series: Extending and Swinging Cylinder
If the MKB series solves the problem of "clamping + rotation," then the MRQBS series solves the problem of "linear extension + rotation" combined motion. Taking the MRQBS32-50CA as an example, it achieves a 50mm linear stroke plus a 90° rotation through a precision gear and rack transmission structure. This design can replace the traditional "linear cylinder + rotating unit" combination, saving over 40% of installation space and shortening the combined motion cycle by 30% compared to separate solutions. In scenarios such as chip rotation and mounting in electronic assembly and flipping assembly of automotive parts, the MRQBS series significantly improves equipment efficiency while reducing potential failure points.
In short: The MKB and MRQBS series are "composite motion masters" in the pneumatic field, achieving two functions with a single unit, providing core support for equipment miniaturization and high efficiency.
IV. Special Environment Series: Making Cylinders "Fearless of Wind and Rain"
Industrial production environments vary widely, some even qualifying as "harsh." SMC has developed a variety of environmentally adaptable cylinders to address these challenging conditions.
For example, the CG5-S series stainless steel cylinders feature external components made entirely of SUS304 stainless steel and are equipped with special scrapers to prevent water ingress. Internally, they use FDA-compliant food-grade grease. They are particularly suitable for the humid, high-cleanliness environments required in food and beverage machinery, ensuring hygienic and durable performance even under stringent washing conditions.
For applications involving flying fine powders such as ceramic powder, toner, and paper dust, SMC offers powder-resistant cylinders (such as the CM2/CQ2/MGP-XC92 series). By installing two iron-nickel scraper rings on the guide rod, they prevent the intrusion of dust particles smaller than 30μm, improving durability by four times compared to standard products.
In short: From food processing to dusty environments, SMC has provided cylinders with tailor-made "protective suits," ensuring stable operation in any harsh environment.
Conclusion
From simple "push" and "pull" to precise positioning control, and then to complex compound movements and adaptation to extreme environments, the technological evolution of SMC cylinders is itself a microcosm of industrial automation's continuous pursuit of higher efficiency, smaller size, and stronger functionality.
SMC pneumatic components, with their solenoid valve lifespan exceeding 30 million cycles, oil-free lubrication technology, and IO-Link real-time monitoring capabilities, have built a stable, efficient, and intelligent pneumatic ecosystem. In this era of pursuing intelligent manufacturing and flexible production, the cylinder may be one of the most traditional actuators, but thanks to SMC's innovation, it is constantly being revitalized, becoming an indispensable "master of motion" in automated equipment.
Next time you see a high-speed automated production line, perhaps you can consider how many SMC cylinders are silently and precisely fulfilling their mission behind the scenes.
