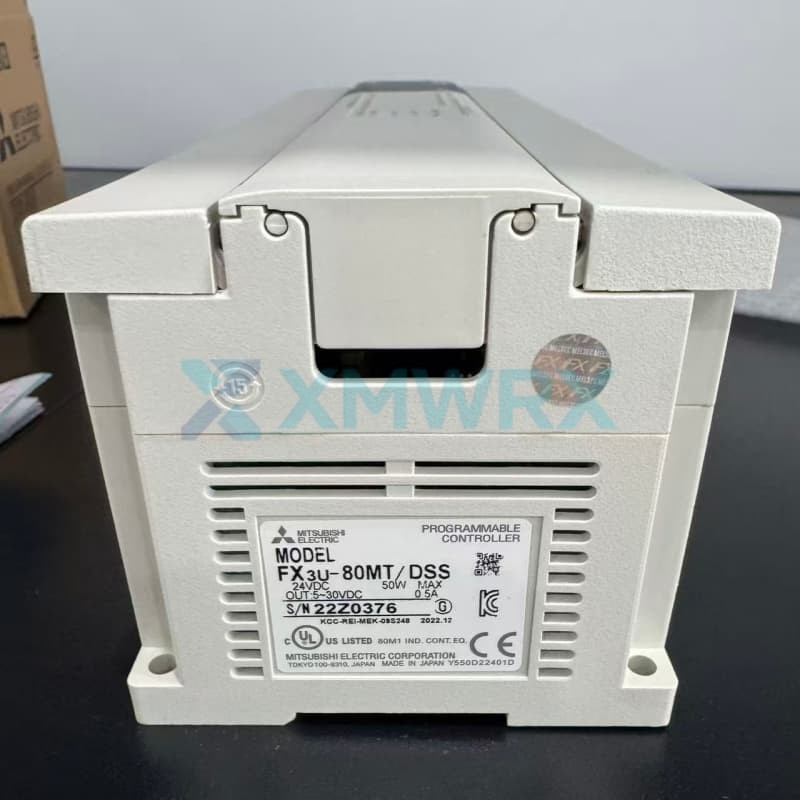

Mitsubishi FX3U-80MT/DSS PLC Main Unit, 80 I/O Transistor (PN: 231507)

FX3U-80MT/DSS High-Performance Small Programmable Logic Controller

The FX3U-80MT/DSS is the most widely compatible PLC on the market.

Mitsubishi FX3U-80MT/DSS PLC Main Unit, 80 I/O Transistor (PN: 231507)

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC, FX3U Base Unit DC 24 V: 40 inputs DC 24 V; 40 transistor outputs

Brand :
MITSUBISHI

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Mitsubishi FX3U-80MT/DSS is a high-performance, compact, general-purpose basic unit belonging to the FX3U series.

Material Number: 231507

It provides 80 I/O points (40 inputs/40 outputs), operates on a 24V DC power supply, and features transistor-source (Sink) outputs.

It boasts high-speed processing capabilities and strong expandability, making it suitable for complex, high-precision automated control systems.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Brand	Mitsubishi Electric
Series	MELSEC-F SERIES
Type	FX3U
Power Supply (V)	24
Current Type	DC
Program Memory	64K STEPS
Program Memory Unit	RAM
Integrated Digital Inputs	40
Integrated Digital Outputs	40
Output Type	TRANSISTOR
Output Logic	SOURCE
Local I/O Points	256
Local + Remote I/O Points	384
Expandable	YES
Cycle Time LD (ns)	65
Cycle Time MOV (ns)	642
USB	OPTION
RS-422	1
Power Consumption (W)	45
Buffer Battery	YES
Protection Class	IP10
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, KR, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Mechanical manufacturing and automated production lines: Used to control complex assembly, processing, and testing processes.
Packaging and food processing machinery: Utilizes high-speed counting and pulse output capabilities to control servo motors, achieving precise cutting, sealing, and conveyor belt synchronization.
Logistics and warehousing systems: Controls sorting machines, stacker cranes, and conveyor be
Textile and printing machinery: Equipment requiring multi-axis linkage and high-precision tension control.

Engineer's Tip: The FX3U-80MT/DSS is a controller designed for automation equipment requiring high speed, high reliability, and a medium number of I/O points (80 points). It is best suited for servo/stepper motor positioning control, high-speed counting, and DC control systems requiring frequent switching outputs, and is a core component for single-machine equipment control in modern smart factories.
