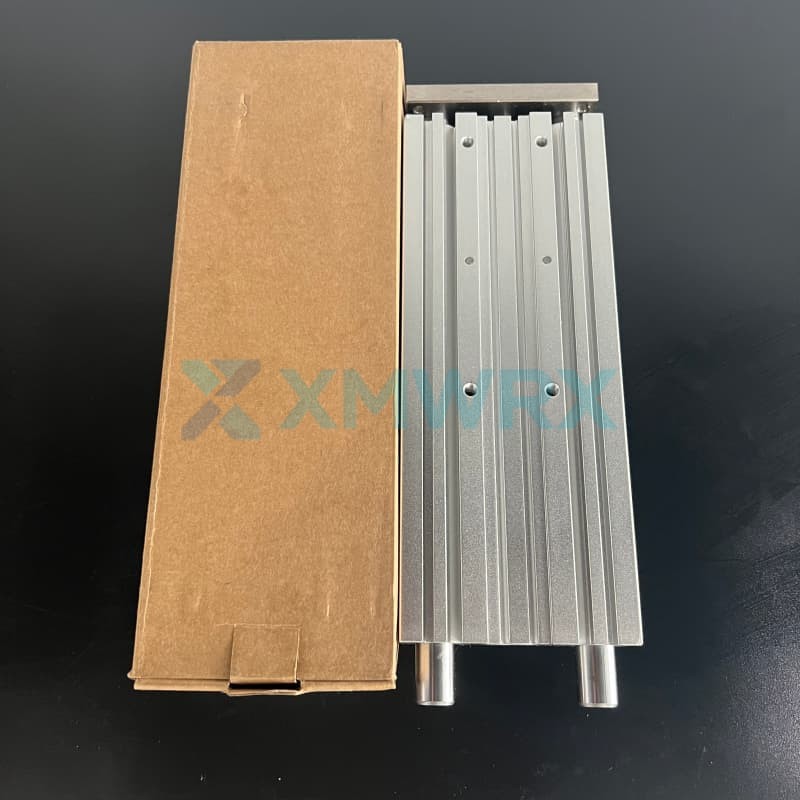

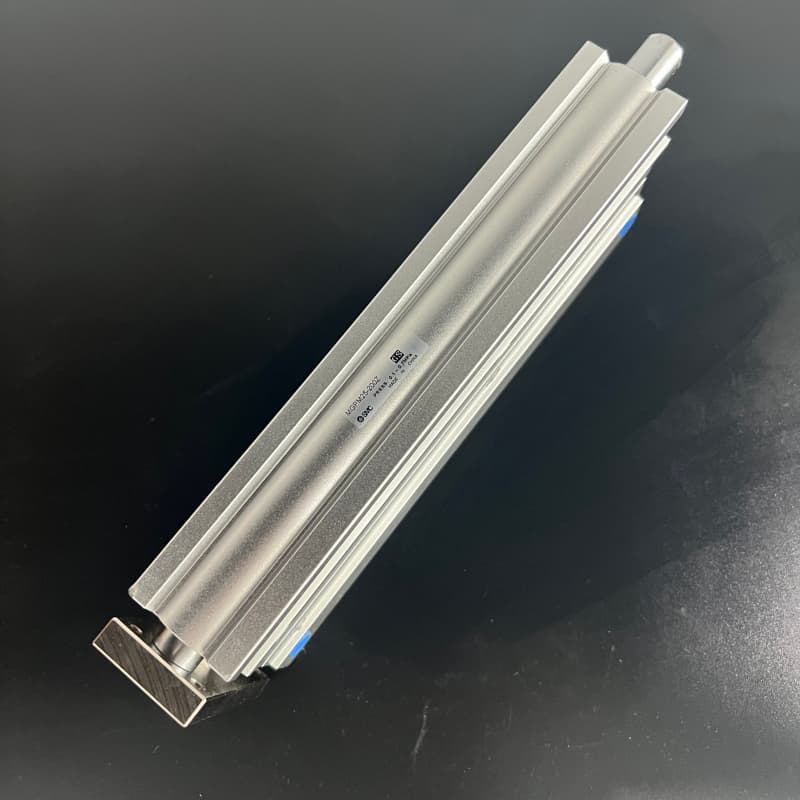

The MGPM25-200Z is a thin-film cylinder with a guide rod from the SMC MGP-Z series. It has a 25mm diameter, a 200mm stroke, and weighs approximately 3.01kg.
Utilizing a sliding bearing structure, it integrates the guide rod and cylinder into a single unit, enabling it to withstand significant lateral loads and torques while maintaining high rotational precision. By shortening the guide rod and altering the end plate thickness, it achieves a weight reduction of up to 24%, saving installation space. It is widely used in automated production lines in industries such as electronics, packaging, and automotive, suitable for workstations requiring high guiding precision, including handling, lifting, stopping, and positioning.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Frequently Asked Questions
Q: What are the suitable applications for the MGPM25-200Z with a 200mm stroke?
A: It is suitable for workstations requiring medium stroke and capable of withstanding lateral loads. Examples include long-distance material pushing on production lines, guiding lifting platforms, and long-stroke stop mechanisms requiring precise positioning. A 200mm stroke is relatively long within the MGP25 series, yet it maintains good load capacity and guiding accuracy.
Q: What is the load capacity of this long-stroke cylinder with a guide rod?
A: Load capacity is related to stroke. The MGP series uses a design where the guide rod bearing length increases with stroke, thus maintaining high load capacity and torque resistance even with a 200mm stroke. However, the specific lateral force or torque it can withstand (in kilograms) needs to be determined by referring to the load curve diagram in the SMC official technical manual.
Q: What precautions should be taken during installation? How should the magnetic switch be matched?
A: Please note two points:
Installation space: Although the MGP-Z series has been optimized to save space, the 200mm stroke is relatively long. Before installation, please ensure there is no interference within the movement trajectory range.
Switch sold separately: The main unit has a built-in magnetic ring but does not include a switch. A magnetic switch (such as the D-M9* series) must be purchased separately according to the control requirements. It can be directly installed on the cylinder block groove surface without a bracket.
