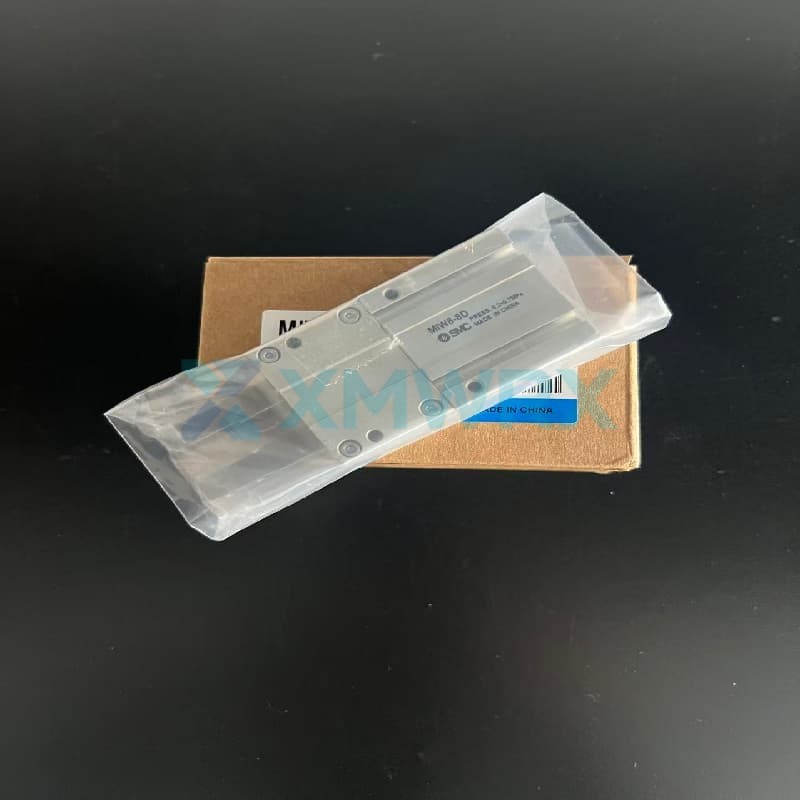

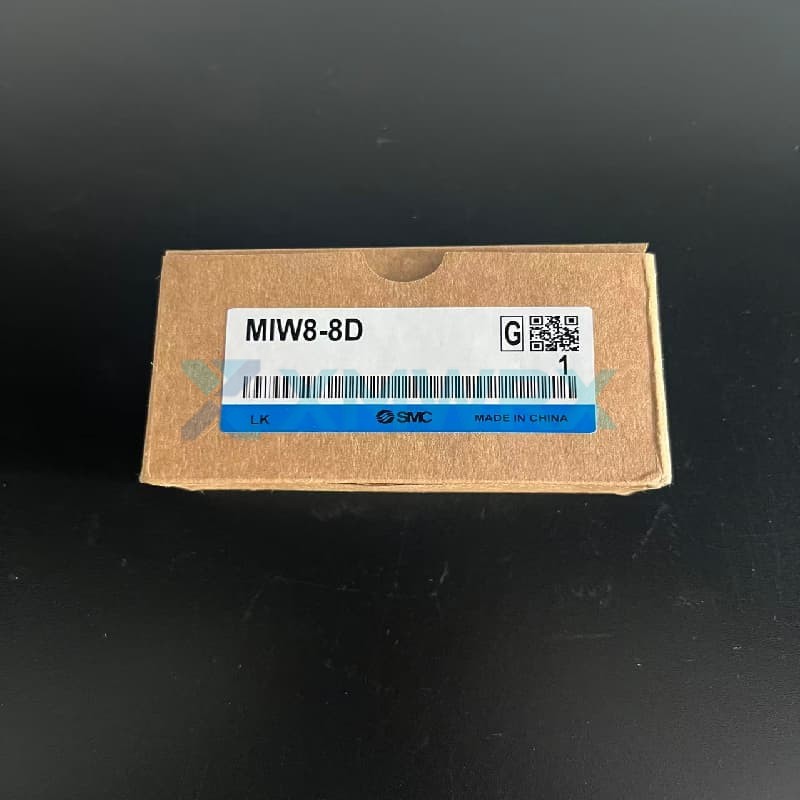

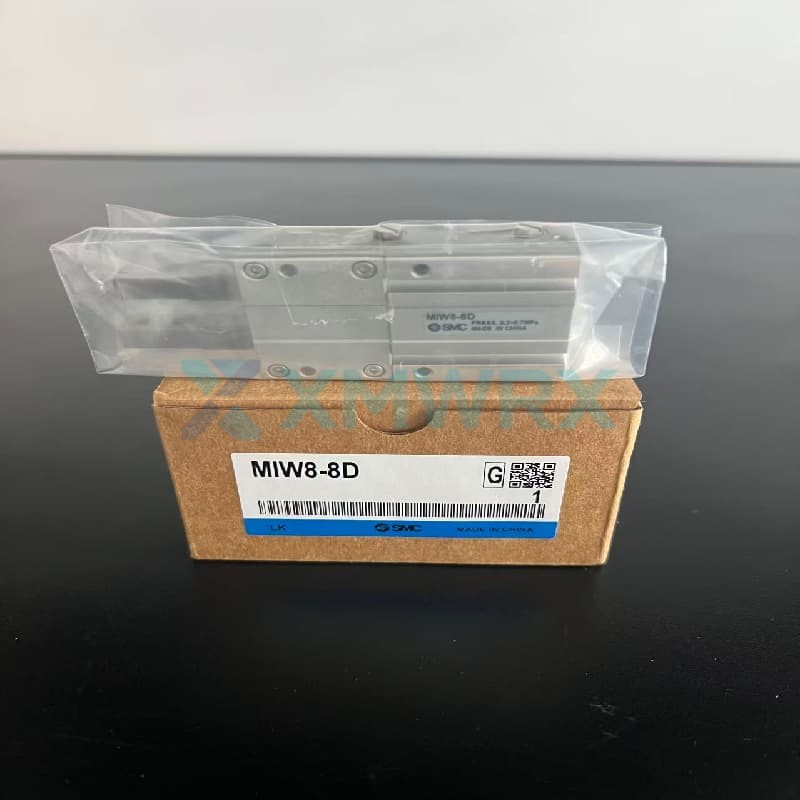

SMC MIW8-8D Double-Finger Type Material Stopping Gripper / Blocking Cylinder

Name: SMC MIW8-8D Double-Finger Type Material Stopping Gripper / Blocking Cylinder
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MIW8-8D
Product Type	Double-finger type material stopper / blocking cylinder
Product Origin	Japan
Shipping Port	Xiamen
Weight	0.21 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The SMC MIW8-8D is a two-finger pneumatic gripper manufactured by SMC of Japan, used for precise separation and individual release of workpieces on automated production lines.

It features a two-finger sequential action and an internal floating mechanism, requiring only a single control valve for reliable control and easy finger replacement. It has an 8mm cylinder diameter, 8mm stroke, double-acting mechanism, and an operating pressure range of 0.2~0.7MPa.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Precise workpiece separation: Reliably separates continuously flowing workpieces on the production line, preventing stacking or collisions.
✓ Sequential release feeding: Controls workpieces to pass through sequentially according to the production cycle, ensuring the orderly progress of subsequent assembly or inspection processes.
✓ Two-finger sequential action: Two fingers apply pressure and release air in sequence, achieving reliable blocking and release control.

Technical Specifications

Brand	SMC
Model / Part Number	MIW8-8D
Product Type	Double-finger type pneumatic gripper / blocking cylinder
Cylinder Diameter	8 mm
Stroke	8 mm
Actuation Method	Double-acting
Operating Pressure Range	0.2 ~ 0.7 MPa
Operating Fluid	Air

Frequently Asked Questions

Q: What kind of production line is this cylinder suitable for?

A: It can be used for separating lightweight workpieces on conveyor lines, such as feeding electronic components, small plastic parts, or metal parts one by one. As long as the workpiece conveying speed is stable and the impact force is not large, the MIW8-8D can reliably complete the blocking and releasing actions.

Q: How do the two fingers achieve sequential movement? Are there any special requirements during installation?

A: The internal interlocking cam structure allows the fingers to move automatically in sequence, without the need for an additional control circuit. During installation, ensure the cylinder is firmly fixed and the contact position between the fingers and the workpiece is aligned to avoid damage caused by lateral impacts.

Q: Is it easy to replace the fingers after they wear out?

A: Very easy. Due to the floating mechanism design, replacing the fingers does not require disassembling the cylinder body; simply remove and install the fingers. Maintenance is simple and downtime is short.
