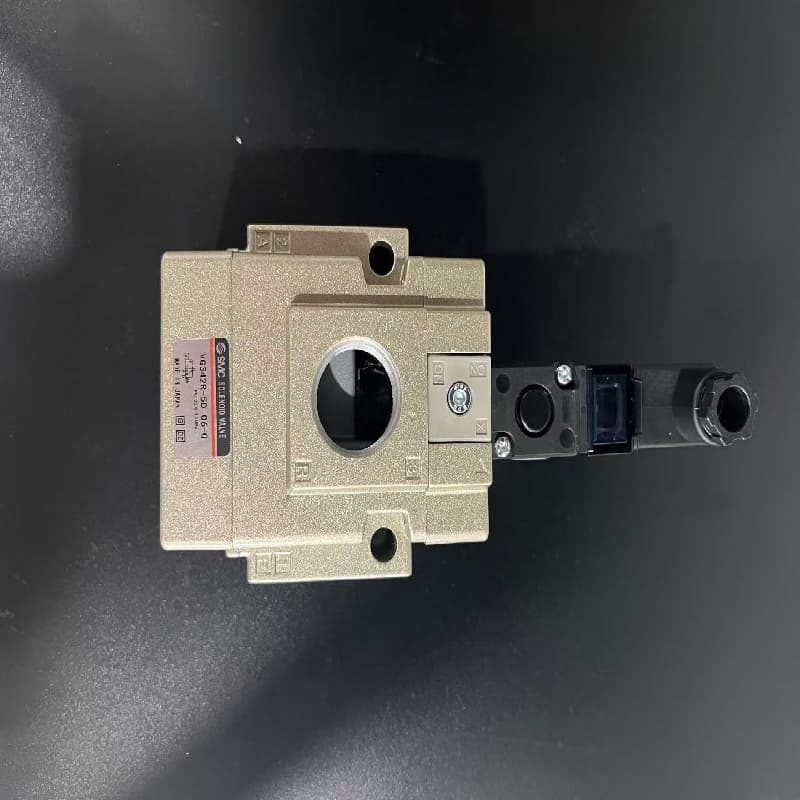

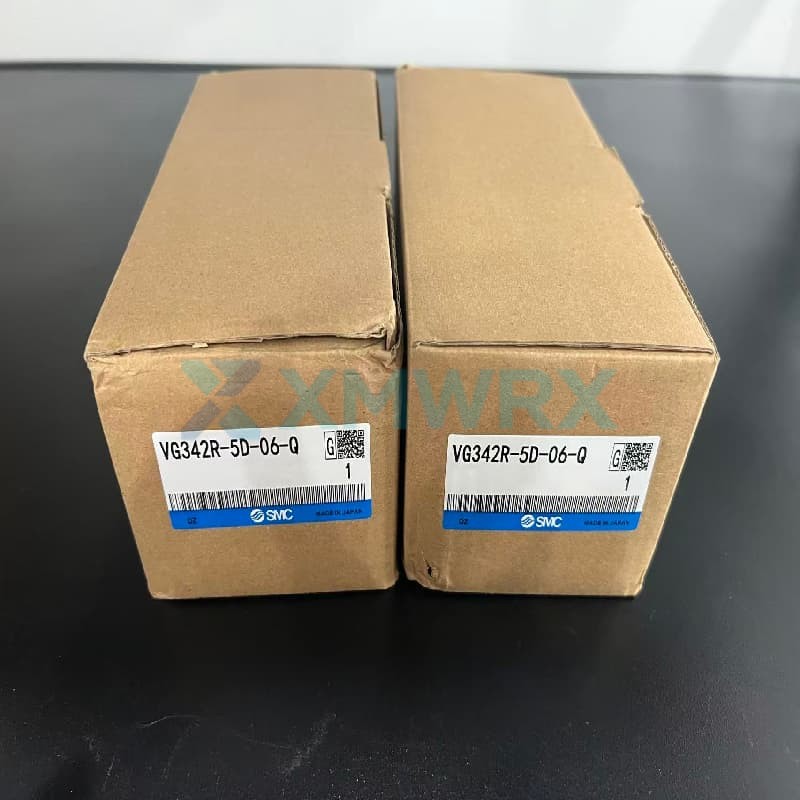

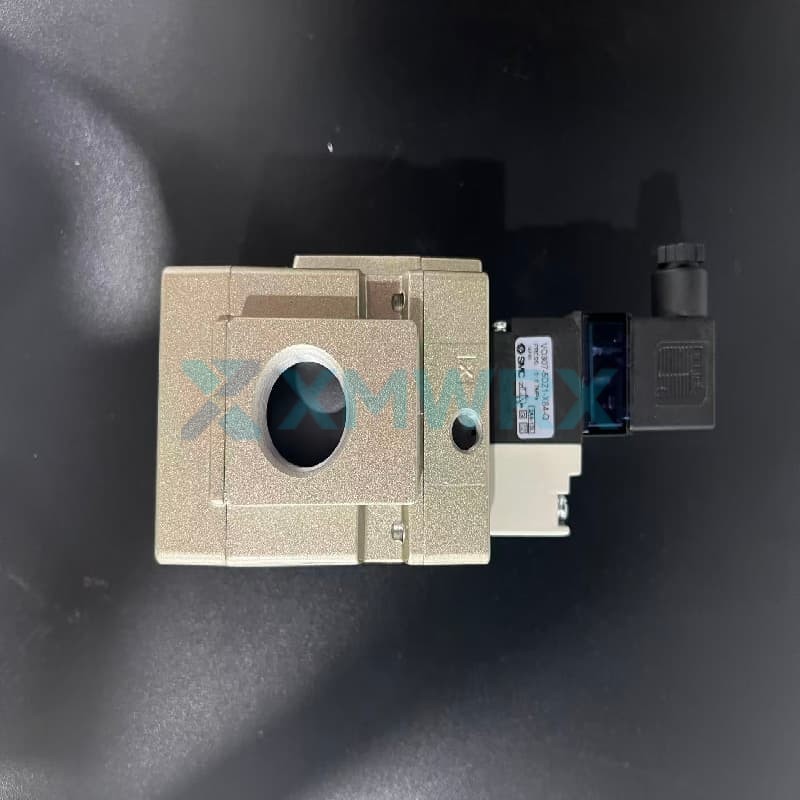

SMC VG342R-5D-06-Q VG342 series 3-way solenoid valve (pilot-operated seat valve, resilient seal)

Name: SMC VG342R-5D-06-Q VG342 series 3-way solenoid valve (pilot-operated seat valve, resilient seal)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	VG342R-5D-06-Q
Product Type	3-way solenoid valve (pilot-operated seat valve, resilient seal)
Product Origin	Japan
Shipping Port	Xiamen
Weight	3.32 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The SMC VG342R-5D-06-Q is a 3-way pilot-operated seated solenoid valve with a resilient seal, allowing it to be switched between normally open and normally closed modes via an external pilot gas.

It is suitable for a wide pressure range from vacuum (-101.2 kPa) to 0.9 MPa and can be used as a selector or divider valve. This model features an Rc 3/4 interface, DC 24V voltage, DIN terminal connection, and is CE

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Three-way switching control: As a 3-way valve, it can switch between on/off and exhaust airflow within a single valve body, precisely controlling the movement of single-acting cylinders or pneumatic actuators.
✓ Wide pressure range applicability: Utilizing a pilot-operated seat valve structure, it can operate stably across a wide pressure range from vacuum (-101.2 kPa) to medium pressure (0.9 MPa) without requiring valve replacement.
✓ Normally open/normally closed switchable: By changing the connection method of the external pilot gas, the same valve body can switch between normally open (N.O.) and normally closed (N.C.) functions, increasing operational flexibility.
✓ High flow rate capacity: With its high Cv value of 9.8, this valve can support high airflow rates, meeting the application requirements of fast response or driving large-volume pneumatic devices.

Technical Specifications

Brand	SMC / VG342 series
Model / Part Number	VG342R-5D-06-Q
Product Type	3-way solenoid valve (pilot-operated seat valve, resilient seal)
Connector diameter	Rc 3/4
Voltage	24 V DC
Pressure range	-0.1 to 0.9 MPa
Cv value	9.8
Drive method	External pilot type

Frequently Asked Questions

Q: Can this valve be used in vacuum adsorption applications?

A: Yes. This valve has a pressure range of -0.1 to 0.9 MPa and is compatible with low vacuum environments (-101.2 kPa). Therefore, it can be used for both positive pressure pneumatic control and vacuum adsorption systems as a switching valve for vacuum circuits.

Q: Will it work properly if the system gas source pressure is very low (e.g., below 0.2 MPa)?

A: Note: The VG342R-5D-06-Q is an externally piloted solenoid valve. Its main valve switching depends on the external pilot gas pressure. If the gas source pressure is too low (usually below 0.2 MPa), the pilot valve may not be able to drive the main valve core to switch properly. It is recommended to verify whether the pilot pressure meets the requirements under low-pressure conditions, or consider using an internally piloted derivative model.

Q: My current pipe threads are NPT standard. Can this valve be installed directly?

A: No, it cannot be installed directly. This model's interface thread is Rc 3/4 (Japanese/International tapered thread standard). Although both are tapered threads and NPT (American standard tapered thread), their pitch and taper are different. Directly screwing it in will damage the thread or cause leakage. An adapter (Rc to NPT) is required for compatibility.
