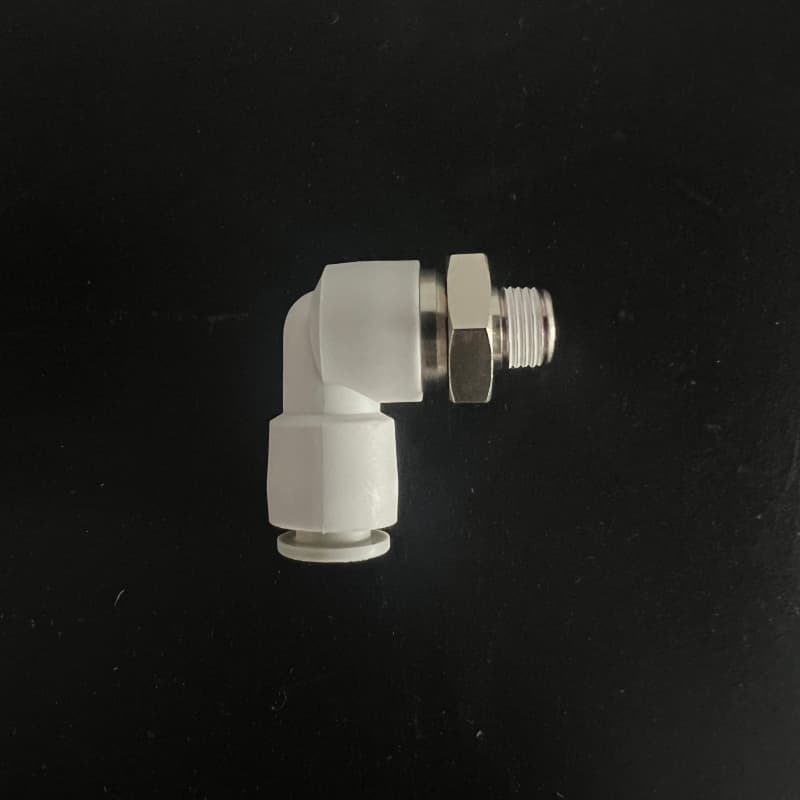

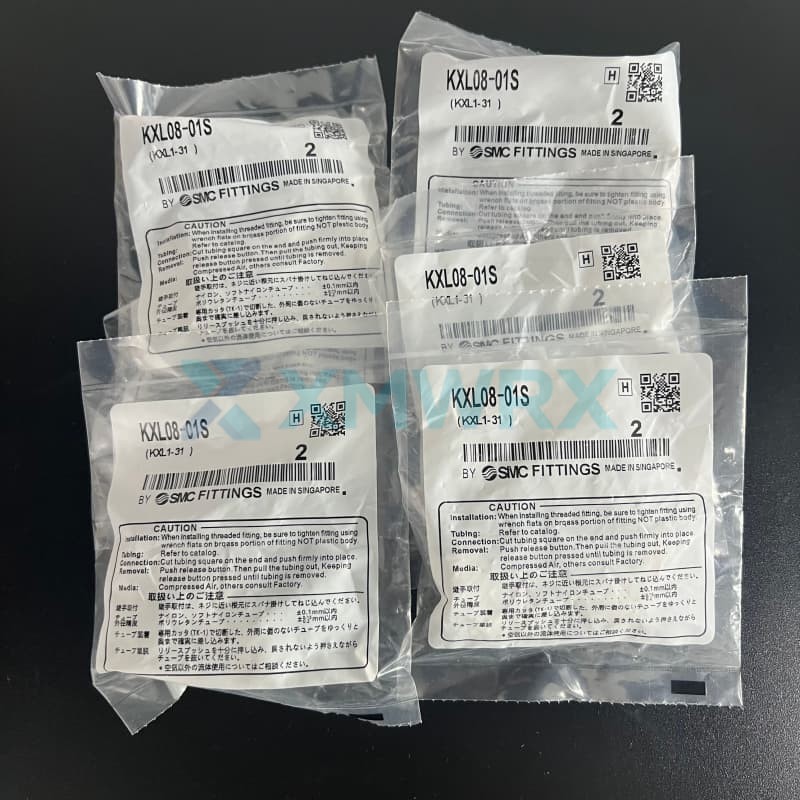

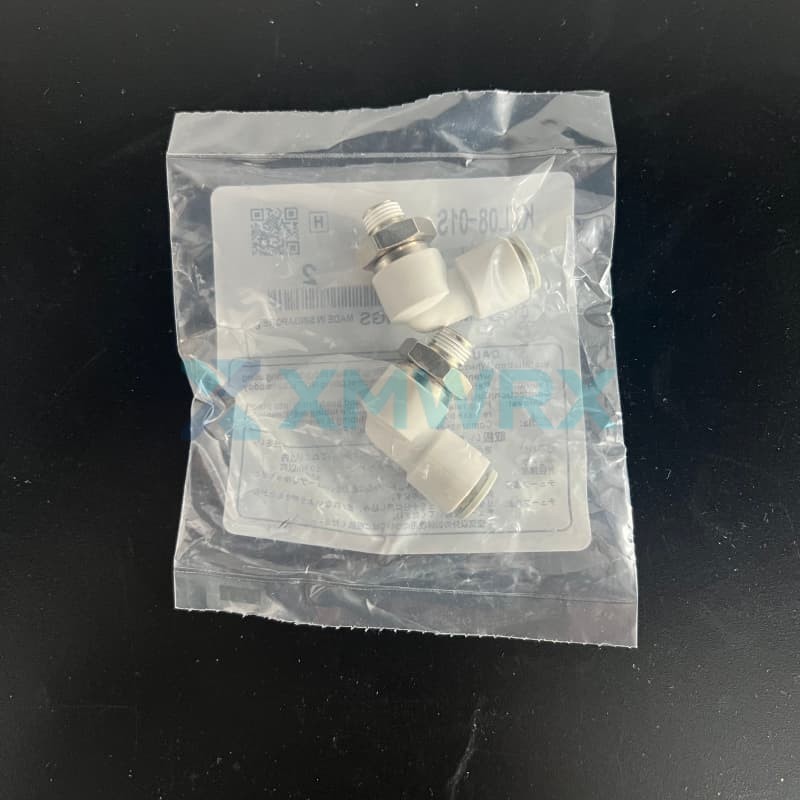

SMC KXL08-01S rotary fitting, KX ROTARY FITTING (sold in packages of 2; price is per piece)

Name: SMC KXL08-01S rotary fitting, KX ROTARY FITTING (sold in packages of 2; price is per piece)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	KXL08-01S
Product Type	KX series high-speed rotary quick-change couplings, elbow type
Product Origin	Singapore
Shipping Port	Xiamen
Weight	0.062 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The KXL08-01S is an SMC KX series high-speed rotary quick-change coupling, elbow type, suitable for pipes with an outer diameter of 8mm and R1/8 thread.

It employs a double ball bearing structure, enabling high-speed rotary motion up to 20 rpm with extremely low rotational torque, making it suitable for oscillating/rotating parts of robots. After pipe insertion, a gripper mechanism prevents the pipe from falling out during rotation. The main body is nickel-plated for a copper-free design. It is suitable for air and vacuum systems, with an operating pressure range of -0.1 to 1 MPa.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-speed rotation: Employs a double ball bearing structure, allowing for high-speed rotational motion up to 20 rpm.
✓ Ultra-low torque: Rotational torque is only 0.014 N·m, suitable for oscillating/rotating parts in robots and other applications.
✓ Anti-pipe detachment: After pipe insertion, a gripper mechanism prevents the pipe from detaching during rotation.
✓ Copper-free and environmentally friendly: The main body is nickel-plated, achieving a copper-ion-free design.

Technical Specifications

Brand	SMC
Model / Part Number	KXL08-01S
Series	KX (High-Speed Type)
Type	L (Elbow)
Applicable Pipe Outer Diameter	8 mm
Connecting Diameter	R1/8 (Rc1/8)
Working Fluid	Air
Operating Pressure Range	-0.1 ~ 1 MPa

Frequently Asked Questions

Q: Where is the KXL08-01S suitable for use?

A: Primarily suitable for pneumatic pipeline connections requiring continuous oscillation or rotation. For example, joints of industrial robots, rotary tables of automated equipment, or any moving parts requiring follow-up air supply. It can withstand high-speed rotation (up to 20 rpm) with extremely low torque, without interfering with the mechanism's movement.

Q: Can this connector be used in vacuum systems?

A: Yes, it can be used in vacuum systems. Its operating pressure range is -0.1~1 MPa, covering vacuum to positive pressure. However, please note: SMC explicitly states that this series cannot be used in leak detectors or applications with extremely high vacuum pressure requirements, as zero leakage cannot be guaranteed; additionally, grease may seep into the interior during vacuum use.

Q: What should be noted during installation? Are there any requirements for piping?

A: Note three points:

Pipe material: Suitable for FEP, PFA, nylon, soft nylon, polyurethane, etc., with an outer diameter of 8mm.

Thread pre-coated: Standard products come with sealant; no additional Teflon tape is required during installation.

Do not disassemble: The high-speed rotary joint has a delicate internal structure; do not attempt to disassemble it to avoid damaging the bearings and seals.
