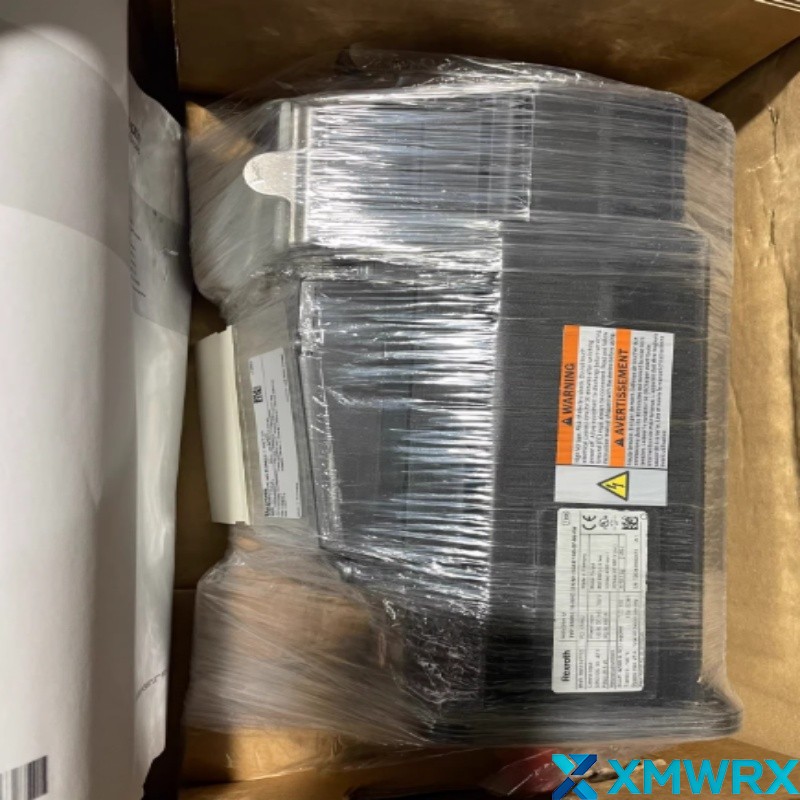

KSM02.1B-061C-35N-M1-HG2-ET-NN-D7-NN-FW model reflects the modern technology of Rexroth Indramat.
The KSM02.1B distributed servo drive has several applications in the domain of robotics, mounting systems, and automated handling systems. The IndraDrive Mi servo motor is engineered to operate at a rated voltage range of 580 – 750 V power supply. In continuous operation, the distributed servo drive consumes power of 140 W while operating at a current of 25 A. The motor is designed to operate with an ambient temperature ranging from 0 to +40 degree Celsius and is cooled by the phenomena of natural convection for maintaining the temperature. The model KSM02.1 has a mass of 10 kg and can be mounted at any permissible place with M8 screws. The screws must be tightened with 25 Nm torque. The servo motor can operate at a maximum revolution of 4300 per minute. The servo motor is insulated with a class 155 insulation. The servo motor is equipped with a multiturn-absolute Hiperface optical encoder with 128 increments. A shaft with a keyway is provided for undisturbed power delivery.
Identified by material number R911337713, Designed for rapid commissioning and reliable operation, it simplifies motion control cabinets and reduces assembly steps. Its compact size and fanless design enhance operational reliability in harsh industrial environments.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓Integrated Design: The IndraDrive Mi series features a design where the driver is directly mounted on the servo motor, saving space in the control cabinet and reducing wiring work.
- ✓Communication: Supports EtherCAT bus, suitable for automation applications with high dynamic response.
- ✓High RPM Winding: Rated for speeds up to 4,300 min-1, maximizing machine throughput.
- ✓Application areas: Widely used in industrial scenarios requiring modular drive, such as packaging machinery, food processing, logistics conveying systems, and assembly lines.
Technical Specifications
| Brand |
Bosch Rexroth |
| Model / Part Number |
KSM02.1B-061C-35N-M1-HG2-ET-NN-D7-NN-FW |
| Material Number (MNR) |
R911337713 |
| Product Type |
Motor Integrated Servo Drives |
| Motor Size & Rotor |
02 Size | Low Inertia |
| Maximum Speed |
4,300 RPM (min-1) Winding |
| Cooling Method |
Self Cooling (Natural Convection) |
| Est. Weight |
37 lbs |
Frequently Asked Questions
Q: Does the KSM02.1B-061C-35N-M1-HG2-ET-NN-D7-NN-FW require an external cooling fan?
A: No. As indicated by its specifications, this specific model features a "Self Cooling" design, relying on natural convection to dissipate heat, saving space and reducing maintenance.
Q: What drive controllers are compatible with this motor?
A: This motor is fully compatible with Bosch Rexroth's advanced drive ecosystems, including the widely used IndraDrive and the latest ctrlX DRIVE platforms.
