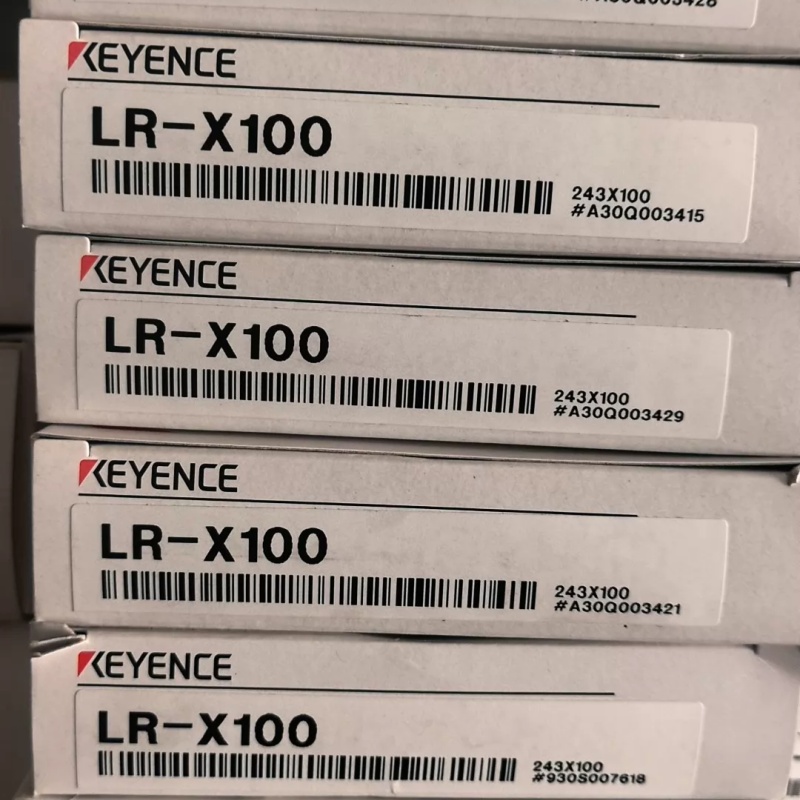

KEYENCE LR-X100 Standard Model, Cable Type, 100mm range

Name: KEYENCE LR-X100 Standard Model, Cable Type, 100mm range
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original KEYENCE Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	LR-X100
Product Type	Compact Laser Sensor
Product Origin	Japan
Shipping Port	Xiamen
Weight	90g

Brand :
Keyence

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The LR-X100 is an ultra-compact reflective digital laser sensor from Keyence, belonging to the LR-X series.

Its main selling point is its "ultra-compact size × stable detection," enabling installation in extremely confined spaces and overcoming the influence of workpiece color, shape, and material to achieve high-precision, stable detection.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Detection Principle and Distance: Employs a new triangulation system, determining the presence of a workpiece by detecting its distance (rather than the amount of light received). The standard detection distance is 25.0 to 100.0 mm.
✓ High-Precision Recognition: Standard detection step difference as low as 1.0 mm, with a display resolution of 0.1 mm, easily detecting thin workpieces or those with minute step differences.
✓ Strong Anti-Interference Capability: Possesses a high-definition dynamic range of up to 3 million times, achieving stable detection of highly reflective metals, curved surfaces, black rubber, and workpieces with uneven coloring.
✓ Light Source and Spot Size: Utilizes a 505 nm green laser (Class 1 laser product, safe and harmless), with a spot size of approximately 0.3 mm × 2 mm at a detection distance of 100 mm.

Technical Specifications

Brand	KEYENCE
Model / Part Number	LR-X100
Type	Compact Laser Sensor
Detection distance	25.0 to 100.0 mm
Standard detection step	1.0 mm
Display resolution	0.1 mm
Spot size	Approx. 0.3 mm × Approx. 2 mm (at a detection distance of 100 mm)
Response time	Supports switching between 500 μs / 1 ms / 3 ms / 10 ms / 200 ms
Light source type	Green laser (wavelength 505 nm)
Laser class	Class 1 laser product
Environment protection rating	-IP65 / IP67 (IEC60529)
Ambient temperature	-10℃ to +50℃ (non-freezing)
Ambient humidity	35% to 85%RH (non-condensing)
Weight	90g

Frequently Asked Questions

Q: How effective is the innovative orientation monitoring function of this product?

A: The LR-X100 has a built-in orientation sensor. When the sensor rotates or becomes misaligned due to external forces such as collisions, it can actively report the anomaly, effectively reducing the risk of production line failures caused by sensor displacement.

Q: How environmentally resistant is the LR-X100?

A: Its enclosure protection rating reaches IP65/IP67, allowing it to operate stably in ambient temperatures ranging from -10℃ to +50℃, and it possesses excellent vibration and shock resistance.

Q: How are the communication and output functions of the LR-X100?

A: It supports IO-Link (Specification v1.1 / COM2) communication. The control output is NPN/PNP open-collector switching and features multiple protection circuits, including power reverse connection and output overcurrent protection.
