Mitsubishi LD77MS16 MELSEC-L Series Simple Motion Control Module (PN: 268201)

Name: Mitsubishi LD77MS16 MELSEC-L Series Simple Motion Control Module (PN: 268201)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

L-Series Simple Motion Module; 16 Axes (SSCNET III/H)

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

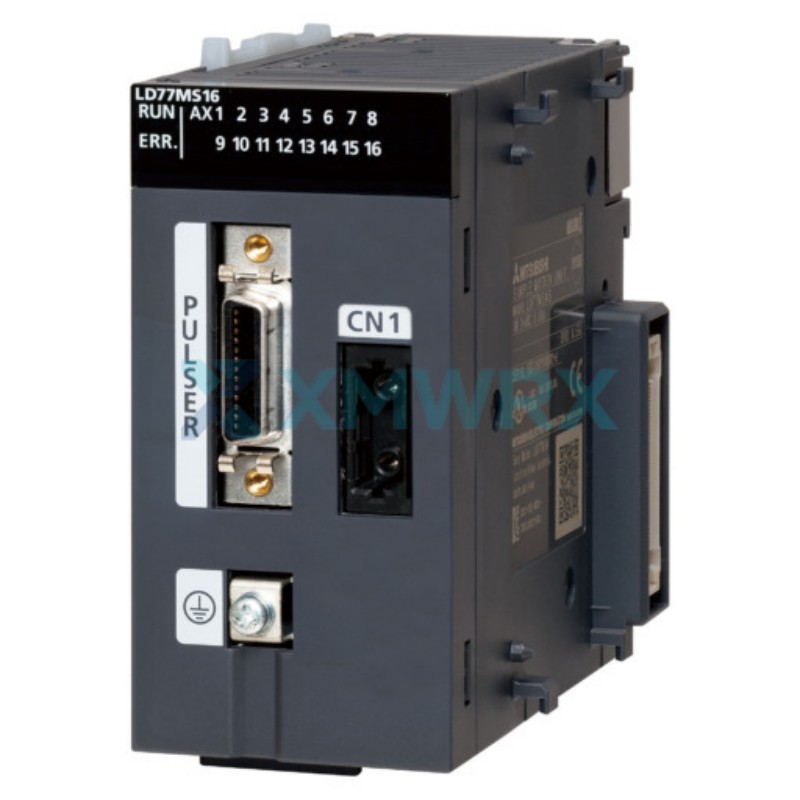

The Mitsubishi MELSEC-L series LD77MS16 is a 16-axis simple motion control module that supports SSCNETⅢ/H network connectivity. It integrates advanced motion control functions such as positioning, electronic gearing, electronic cams, and synchronization control, enabling high-speed, high-precision servo system control across multiple axes via a single cable.

Material Number: 268201

High scalability: Seamlessly integrates with the MELSEC-L series PLC system, offering flexible installation without requiring a large control cabinet space.

Easy maintenance: Supports digital oscilloscope functionality, amplifier-less operation, and diagnostic functions such as servo amplifier communication disconnection.

Multiple unit settings: Supports multiple position control units including mm, inch, degree, and PLS, adapting to diverse industry needs.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-L SERIES
Type	SIMPLE MOTION MODULE
Command Interface	SSCNET III/H, SSCNET III
Number of Axes	16
Program Capacity	600
Program Capacity Unit	POSITIONING DATA/AXIS
Inputs	4

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Complex Multi-Axis Synchronous Control: Supports independent control of up to 16 axes and complex linear/circular interpolation, commonly used in high-precision dispensing machines, insertion machines, and synchronous operations on multi-station rotary tables.
High-Speed Packaging and Labeling Equipment: In high-speed packaging production lines, it enables high-precision electronic cam synchronization, tracking, and cutting control at each station, ensuring seamless production line integration.
Flat Panel Display and Semiconductor Manufacturing: In highly precise optical inspection, LCD/OLED panel bonding, and handling equipment, it utilizes the strong anti-interference and high-speed response capabilities of its fiber optic bus to achieve sub-micron level precision positioning and motion trajectory control.
Large-Scale Automated Production Lines: Combined with Mitsubishi's Q-series/L-series CPUs, it can schedule various servo drives in large factory production lines to complete automated material conveying, high-speed sorting, and assembly.

Engineer's Tip: When using the Mitsubishi LD77MS16 simple motion module, strictly adhere to wiring safety and parameter specifications. Power off before installation. Never touch the terminals while they are powered on, and use dust covers and grounding as required. Synchronous network communication requires a dedicated SSCNETⅢ/H cable, and it should only be plugged in or unplugged after the servo amplifier is powered off to prevent damage to the communication port.
