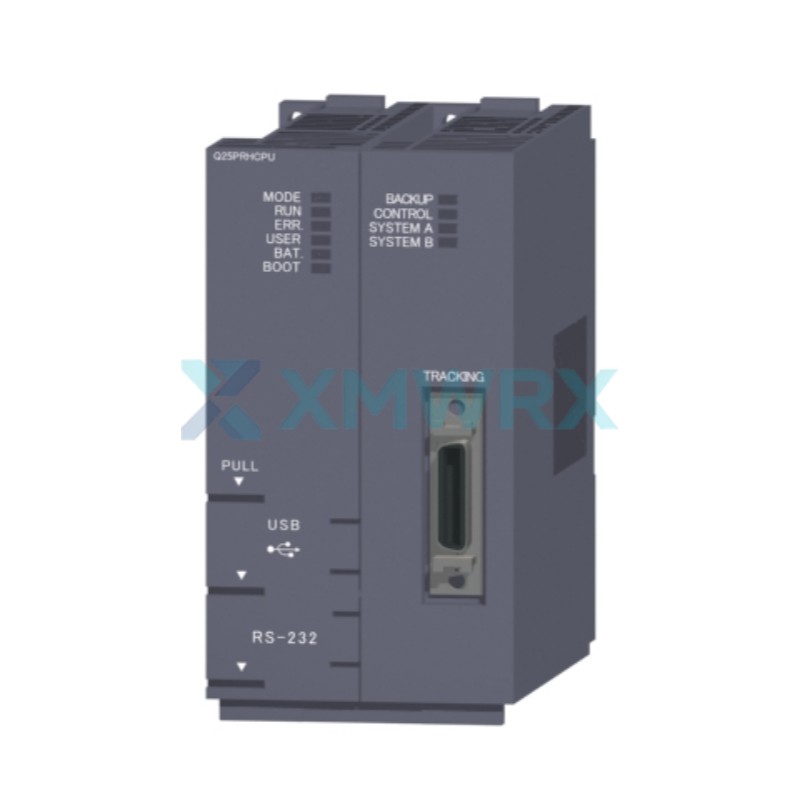

Mitsubishi Q25PRHCPU Q Series High-Performance Redundancy Control CPU Module

Name: Mitsubishi Q25PRHCPU Q Series High-Performance Redundancy Control CPU Module
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Q25PRHCPU is a high-performance redundant control CPU module in Mitsubishi Electric's Q-series PLCs. It is designed for industrial automation scenarios that require a combination of precise motion control and logic control, and is especially suitable for complex applications such as multi-axis synchronous control, precision positioning, CNC machine tools, and robots.

Redundancy and Full-Duplex System: As a redundant control CPU, the Q25PRHCPU supports a power full-duplex system and has full-duplex functionality corresponding to process control languages, greatly improving the reliability of industrial control systems.

Integrated Motion Control: Built-in motion control commands enable high-precision motion functions such as linear interpolation, circular interpolation, electronic gear and cam synchronization without the need for additional dedicated modules, typically controlling 16 axes or more.

Rich Communication Interfaces: Built-in USB, RS-232, and memory card interfaces support CC-Link IE and MELSECNET/H dedicated networks, facilitating programming tool connection, high-speed communication debugging, and external device linkage.

Compact Design: Small size saves installation space and supports connection of up to 7 expansion base devices.

Easy Maintenance: Supports automatic writing to standard ROM, external forced input/output ON/OFF, and remote password setting, improving debugging and maintenance efficiency.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-Q SERIES
Type	CPU module
Number of I/O points	4096
I/O device points	8192
program capacity	252K steps
basic operation processing speed (LD X0)	34 ns
program memory capacity	1008K bytes
external interface	USB/RS-232, with memory card interface, process control language supported, redundant function

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

High-end CNC machine tools and precision machining equipment: Utilizing its built-in high-speed motion control function, it easily achieves multi-axis linear interpolation, circular interpolation, and high-precision positioning, ensuring extremely high dimensional accuracy and surface quality of machined parts.
Robot and robotic arm systems: Capable of precisely coordinating the synchronous movement of multiple servo axes, achieving complex trajectory planning and high-speed start-stop, while ensuring smooth motion and repeatability.
Semiconductor and electronics manufacturing equipment: In micron-level precision assembly and handling processes, the Q25PRHCPU's high-speed processing capability (34ns basic instruction) ensures extremely short response latency, significantly improving production cycle time and yield.
Packaging and printing machinery: Through electronic gears and electronic cams, it perfectly achieves strict synchronization between multiple axes such as unwinding, traction, cutting, and sealing, avoiding material stretching or misregistration, and adapting to high-speed continuous production.
Process control systems with extremely high reliability requirements: The core advantage of the Q25PRHCPU lies in its redundant control. In industries where downtime would result in significant economic losses or safety hazards, its full-duplex system enables seamless switching in the event of a main CPU failure, ensuring 24/7 uninterrupted production.
Large-scale Logistics Conveying and Warehousing Systems: Supporting up to 4096 I/O points and robust network communication capabilities (CC-Link IE / MELSECNET / H), it can easily manage vast conveyor networks, achieving precise material tracking and high-speed distribution.

Engineer's Tip: It must be used in an environment that meets general technical specifications (operating temperature 0~55℃, no corrosive gases) and must be installed inside the control panel. Exceeding these limits may result in electric shock, fire, or product damage.
