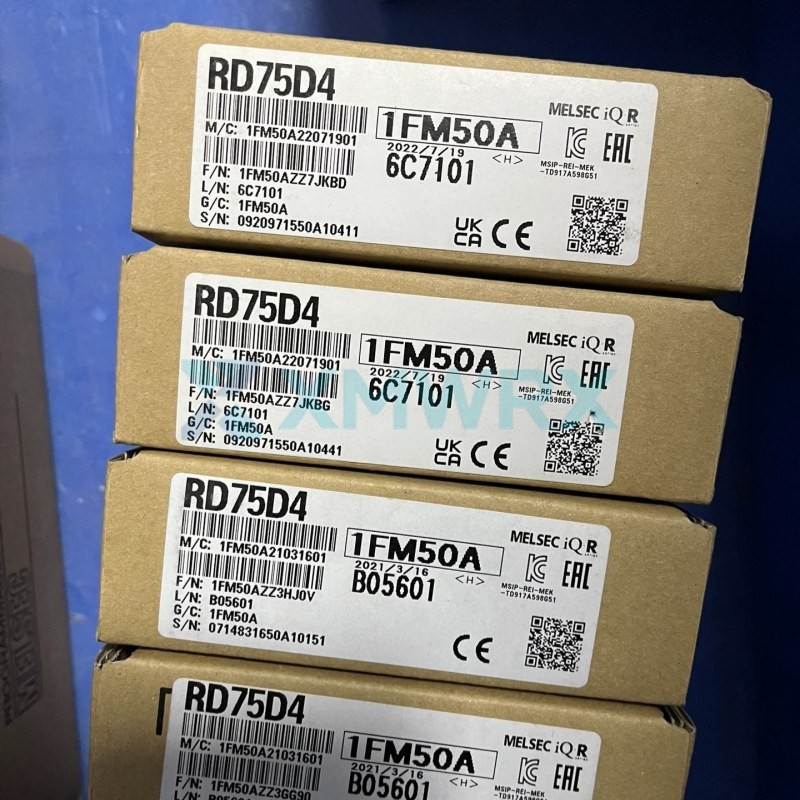

Mitsubishi RD75D4 MELSEC iQ-R Series High-Performance 4-Axis Intelligent Positioning Control Module (PN: 279565)

Name: Mitsubishi RD75D4 MELSEC iQ-R Series High-Performance 4-Axis Intelligent Positioning Control Module (PN: 279565)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC iQ-R Series; Differential driver output module, 4 axis

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

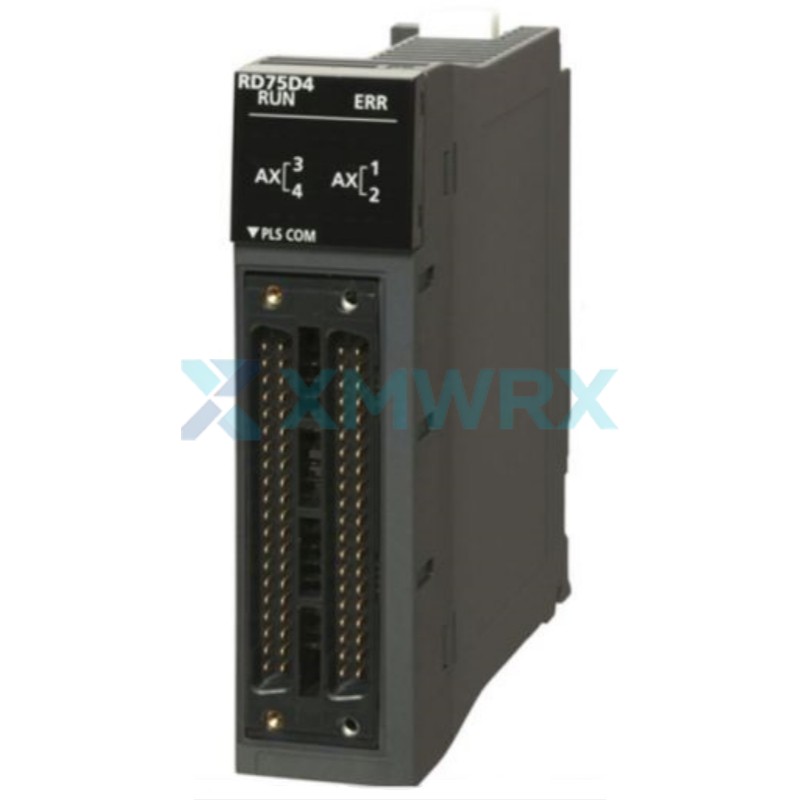

The RD75D4 is a high-performance 4-axis intelligent positioning control module in Mitsubishi Electric's MELSEC iQ-R series PLCs.

Material Number: 279565

4-Axis Independent/Interpolation Control: Supports independent control of up to 4 axes, including linear and circular interpolation, easily handling complex trajectory movements.

High-Speed System Bus: Utilizing the iQ-R series' high-speed system bus, inter-module data communication speed is significantly improved, achieving microsecond-level high-precision response and shorter cycle times.

Multiple Control Modes: Built-in positioning control, speed control, speed-position switching control, position-speed switching control, and manual pulse generator (handwheel) operation.

Rich Instruction Set: Supports positioning via absolute position (ABS) and relative position, meeting the needs of various industrial scenarios such as packaging, handling, cutting, and assembly.

Differential Drive Output: Employs differential drive, providing strong anti-interference capabilities and high-resolution pulse output.

Inter-Module Synchronization: Enables high-precision synchronization with other input/output and network modules within the system, optimizing overall equipment operating efficiency.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC IQ-R SERIES
Type	DIFFERENTIAL DRIVER OUTPUT
Number of Axes	4
Int. Current Consumption (A)	0,78

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Packaging and labeling machines: Achieve high-speed and precise material handling and positioning.
Dispensing and engraving machines: Utilize multi-axis interpolation to create complex trajectories.
Precision handling and robotic arms: Achieve precise point gripping and placement of materials through an absolute positioning system.

Engineer's Tip: Emergency stop circuits, protection circuits, and interlocking circuits to prevent mechanical damage (such as forward/reverse interlocks and upper/lower positioning limits) must be installed outside the PLC to prevent major accidents caused by module failure or power supply abnormalities.
