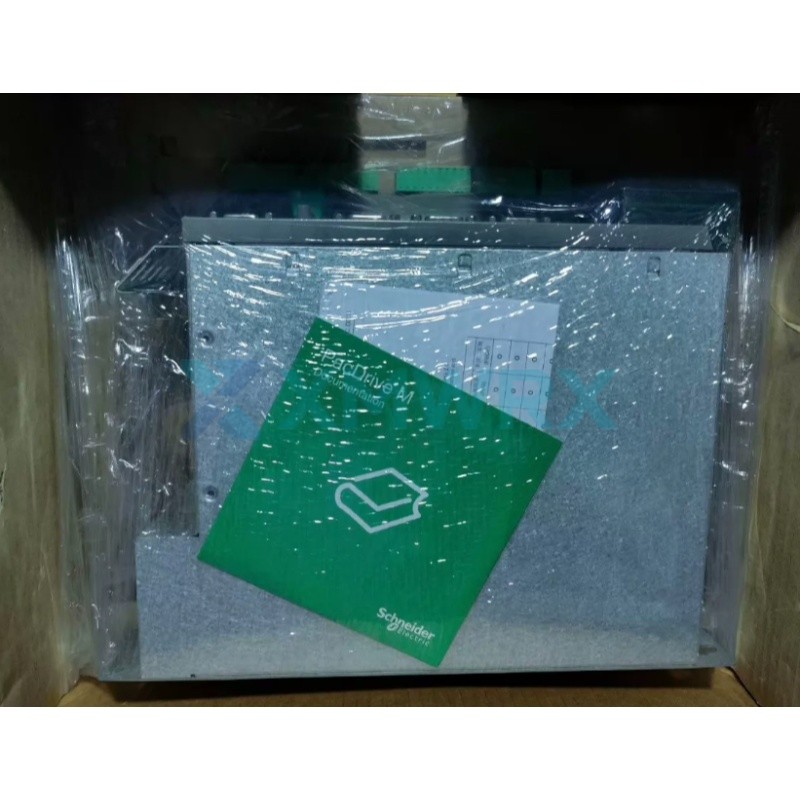

Schneider ELAU MAX-4/11/03/016/08/1/1/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/016/08/1/1/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/016/08/1/1/00
Product Type	Motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	3.9 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/016/08/1/1/00 is a compact motion controller from Schneider Electric's ELAU PacDrive MAX-4 series. It features a 32-bit hard real-time floating-point processor and only 16KB of program storage. The "08" in the model name indicates support for up to 8-axis servo synchronous linkage; the suffix "1/1" indicates that it has complete digital I/O and analog signal channels, eliminating the need for additional expansion modules to acquire tension and pressure signals. It uses a SERCOS III servo bus with VDM series servo drives, making it suitable for small-scale bag-making, labeling, and pharmaceutical sealing equipment with up to 8 axes. The VxWorks hard real-time system has a minimum motion cycle of 250μs, stably completing mainstream motion processes in small to medium-sized equipment such as electronic cams, synchronous feeding, and simple flying shears. It is suitable for automated equipment with simple control logic and a small number of axes.

Core Features

✓ 8-axis precise synchronous control: A single controller can manage up to 8 servos, supporting multiple cam curve switching, and stably realizing light-load synchronous processes such as electronic gear, tracking synchronization, fixed-length cutting, and micro-tension control.
✓ Integrated onboard I/O: It comes with 20 digital DI channels, 16 digital DO channels, and 2 AI and 2 AO analog channels, which can be directly connected to various sensors, simplifying control cabinet wiring and eliminating the need for expansion module costs.
✓ IEC61131-3 Standardized Programming: Supports mainstream programming methods such as structured text, ladder diagrams, and function blocks; logic operations and motion control are executed in parallel, resulting in fast real-time response.
✓ DIN rail compact modular installation: Compact size, suitable for dense layout of small electrical control cabinets, easy to disassemble and maintain.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/016/08/1/1/00
Product Type	Motion controller
Processor	32-bit floating-point real-time processor
Program storage area	16KB non-volatile memory, saves recipes and cam programs even when power is off.
Main power supply	DC24V control power supply
Est. Weight	3.9 KG

Frequently Asked Questions

Q: Does the MAX-4/11/03/016/08/1/1/00 have built-in analog input channels? Does it require an expansion module to acquire sensor signals?

A: It has 2 built-in analog inputs and 2 analog outputs, and is also equipped with multiple digital inputs and outputs. It can directly connect to tension and pressure analog sensors without the need for additional analog expansion modules.

Q: What communication interfaces does the MAX-4/11/03/016/08/1/1/00 have, and what external devices can it connect to?

A: It integrates multiple interfaces including SERCOS servo bus, Ethernet, Profibus DP, CANopen, and RS485, allowing connection to HMI touchscreens, host industrial computers, third-party frequency converters, and digital sensor acquisition modules.

Q: What debugging and diagnostic functions does the MAX-4/11/03/016/08/1/1/00 have?

A: The built-in 8-channel software waveform oscilloscope allows for real-time observation of servo operation waveforms, automatically saves complete fault logs, and, in conjunction with the machine's indicator lights, quickly troubleshoots bus, servo, and I/O point faults.
