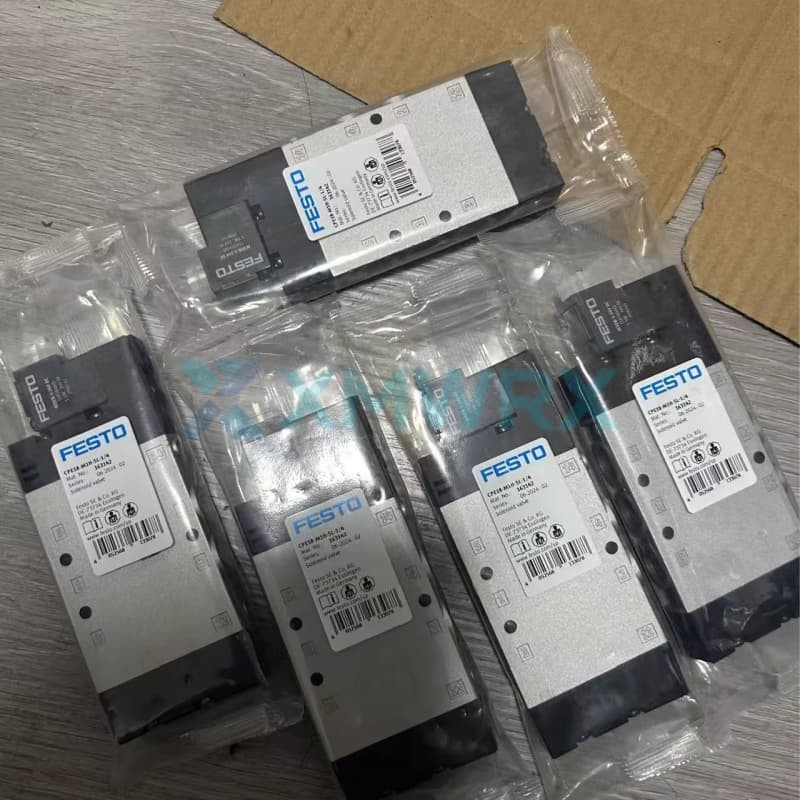

FESTO CPE18-M1H-5L-1/4 163142 CPE series compact solenoid valve 5/2-way solenoid valve, single solenoid control

Name: FESTO CPE18-M1H-5L-1/4 163142 CPE series compact solenoid valve 5/2-way solenoid valve, single solenoid control
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original FESTO Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CPE18-M1H-5L-1/4 163142
Product Type	CPE series compact solenoid valve
Product Origin	Germany
Shipping Port	Xiamen
Weight	0.485 lbs

Brand :
FESTO

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The CPE18-M1H-5L-1/4 is a compact solenoid valve in the FESTO CPE series, with a width of only 18mm.

This 5/2-way valve features a monostable design, electrically piloted operation, and a pneumatic spring return. It boasts high flow characteristics (standard rated flow rate of 1300-1500 L/min) and low power consumption (1.5W). Its IP65 protection rating makes it suitable for various industrial environments. It is widely used in automated production lines in automotive manufacturing, packaging equipment, and material handling

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Ultra-compact design: Only 18mm wide, saving installation space and suitable for high-density integration.
✓ High flow rate, low power consumption: Standard rated flow rate up to 1500L/min, with power consumption of only 1.5W.
✓ Fast response: Short switching time (26ms on/20ms off), improving equipment efficiency.
✓ Rugged and durable: Die-cast aluminum housing, IP65 protection rating, suitable for harsh industrial environments.

Technical Specifications

Brand	FESTO
Model / Part Number	CPE18-M1H-5L-1/4
Order No.	163142
Valve Function	5/2-way, Monostable
Actuation Method	Electrically piloted
Standard Rated Flow Rate	1300-1500 l/min
Air Connection	G1/4
Operating Pressure	2.5 ~ 10 bar
Operating Temperature	-5 ~ 50℃

Frequently Asked Questions

Q: What are the main applications of the CPE18-M1H-5L-1/4 valve?

A: Primarily used in automated equipment requiring high flow rates but limited space. Examples include packaging machinery, assembly lines, material handling systems, and automotive manufacturing. Its ultra-thin 18mm width makes it particularly suitable for installation in valve islands or compact control cabinets, and its high flow rate allows it to drive cylinders with larger diameters.

Q: Can this valve's response speed meet the requirements of high-speed applications?

A: Absolutely. With a switching time of only 20-26ms, combined with its high flow rate, it is suitable for applications requiring rapid action, such as high-speed material handling and quick clamping and releasing mechanisms.

Q: What should I pay attention to when purchasing? What are the installation requirements?

A: Pay attention to three points:

Coil Included: This model usually comes with a 24V DC coil, so it does not need to be purchased separately.

Installation Location: Supports installation in any location, offering high flexibility.

Air source quality: Compressed air must meet ISO 8573-1:2010 [7:4:4] standard; it is recommended to use filtered compressed air.
