FESTO VPPE-3-1-1/8-6-010-E1 557772 VPPE series pilot-operated proportional pressure valves

Name: FESTO VPPE-3-1-1/8-6-010-E1 557772 VPPE series pilot-operated proportional pressure valves
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original FESTO Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	VPPE-3-1-1/8-6-010-E1 557772
Product Type	Pilot-operated proportional pressure valve
Product Origin	Hungary
Shipping Port	Xiamen
Weight	1.03 lbs

Brand :
FESTO

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

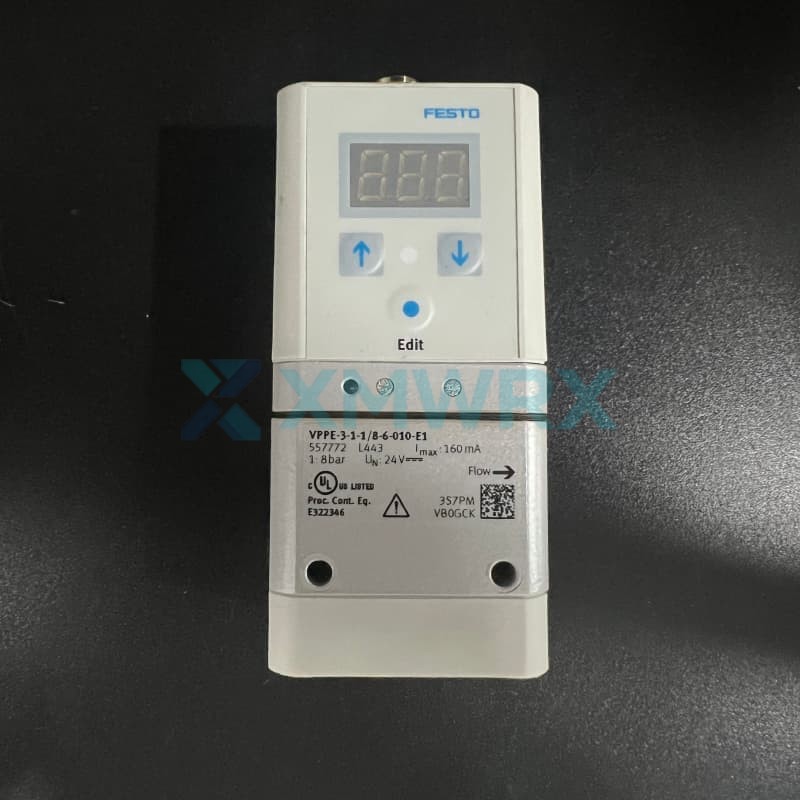

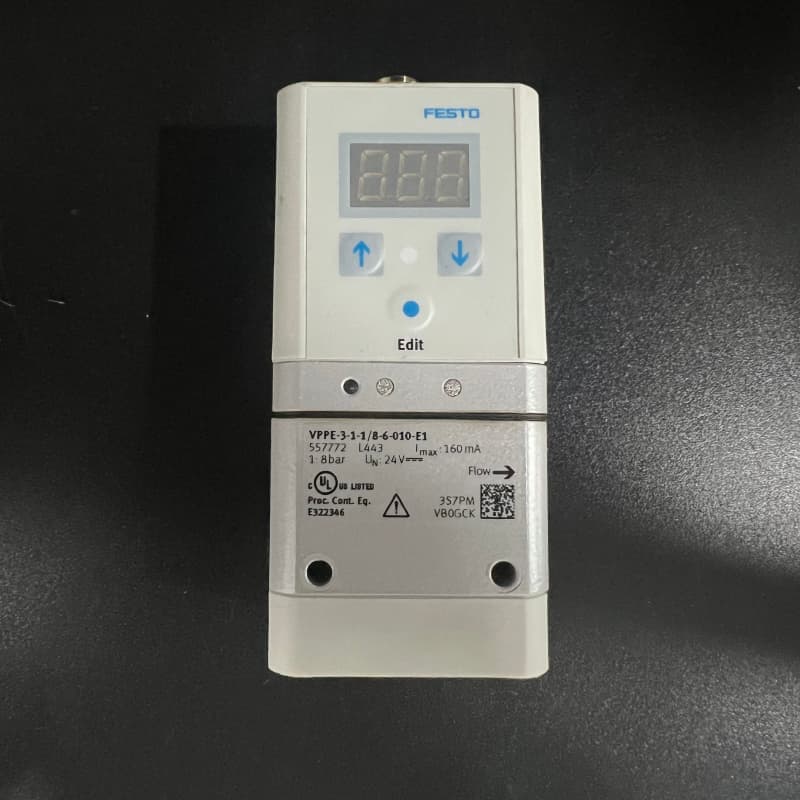

This product is a pilot-operated proportional pressure valve from Festo's VPPE series.

It proportionally converts the input electrical signal (0-10V) into a stable pneumatic pressure output, achieving precise stepless pressure regulation. Its compact design, along with an LED display, makes it ideal for industrial automation systems requiring dynamic and precise pneumatic pressure control.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Electrical proportional control: Precisely controls output pressure by receiving analog voltage signals from 0-10V.
✓ Three-way valve function: Not only regulates air supply but also controls exhaust, achieving precise pressure build-up and release.
✓ Closed-loop control: Features high linearity, low hysteresis, and high repeatability, ensuring stable and consistent pressure output.
✓ Diagnostics and display: Built-in 3-digit LED display screen allows for quick and easy on-site monitoring of pressure and diagnostics of equipment status.

Technical Specifications

Brand	FESTO
Model / Part Number	VPPE-3-1-1/8-6-010-E1 557772
Order No.	557772
Valve Function	Three-way proportional pressure regulating valve
Pressure Adjustment Range	0.06 bar ... 6 bar
Inlet Pressure	6 bar ... 8 bar
Standard Rated Flow	800 l/min
Air Interface	G1/8
Signal Input/Output	0 - 10 V Analog
Operating Voltage	DC 21.6 V ... 26.4 V (Typical 24V DC)
Electrical Connection	M12 plug, 5 pins
Protection Rating	IP65

Frequently Asked Questions

Q: Can this valve be used in applications requiring precise pressure control?

A: Yes. Its closed-loop control characteristics (linearity ±1% FS, repeatability ±0.5% FS) make it ideal for pressure-dependent applications such as leak testing, precision clamping, and dispensing control.

Q: Can it be directly controlled by my PLC?

A: Yes. It accepts standard 0-10V analog signals and uses a common 24V DC power supply, making it easily integrated with most PLC (Programmable Logic Controller) systems.

Q: What special considerations are needed when installing this proportional valve?

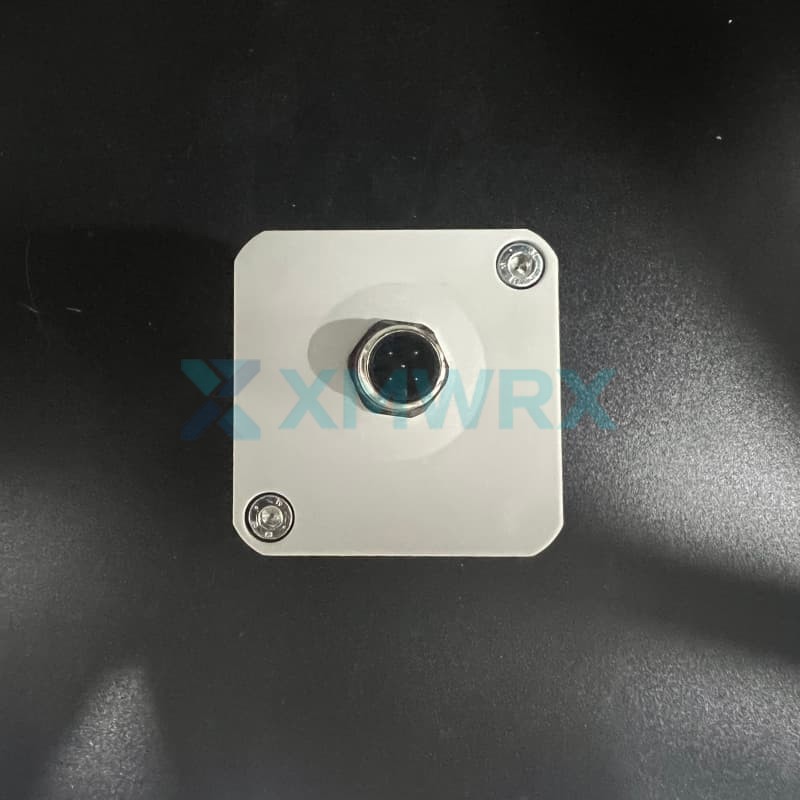

A: Two points need attention: 1) The compressed air used must be clean (compliant with ISO 8573-1:2010 [7:4:4] standard), and oil mist lubrication is not allowed. 2) Its electrical interface is an M12x1, 5-pin male connector, requiring a corresponding female connector cable.
