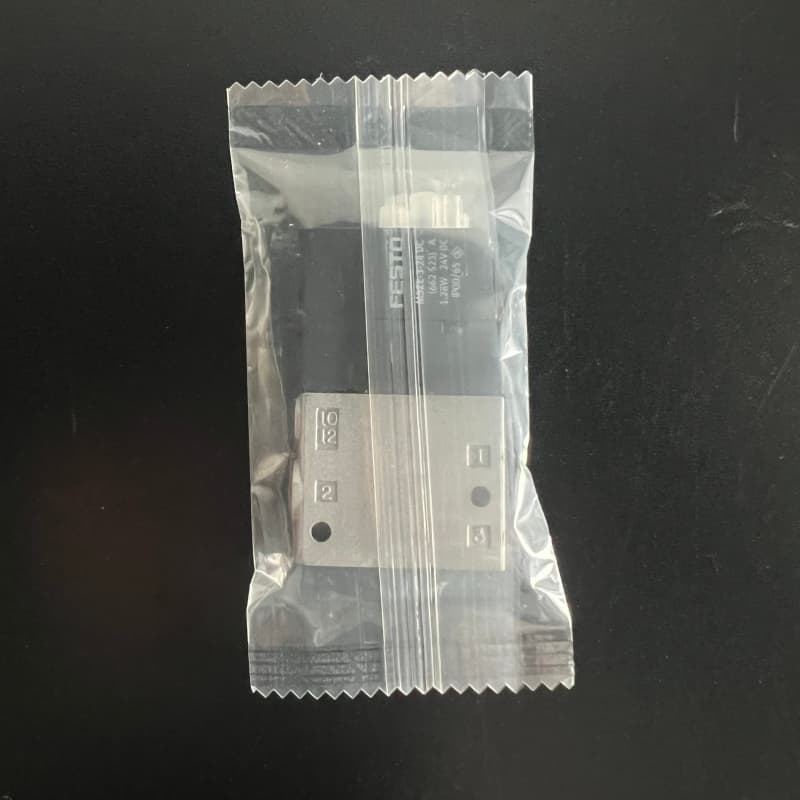

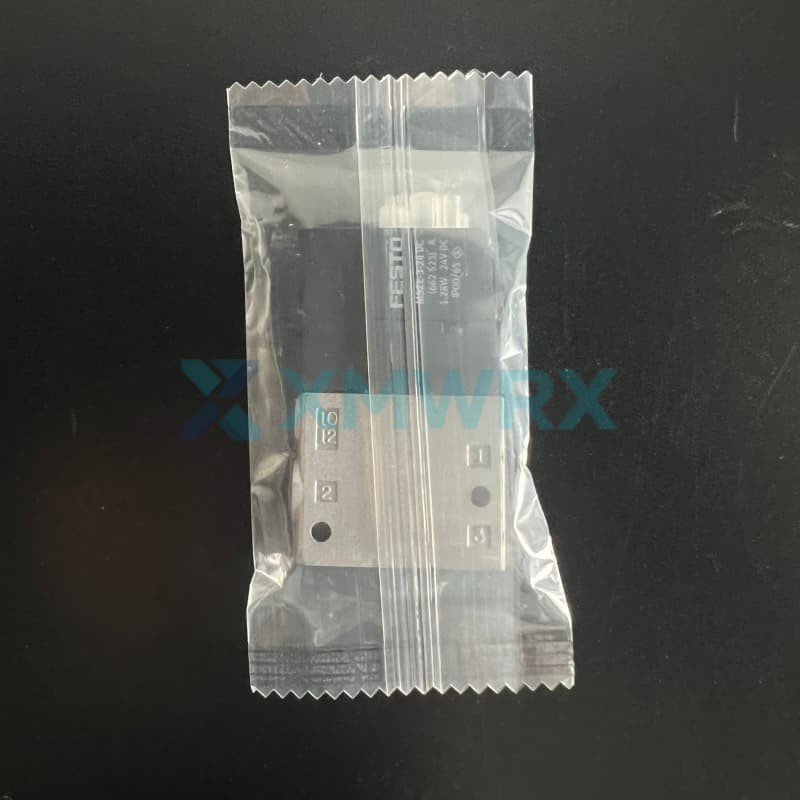

FESTO CPE10-M1BH-3GLS-M7 196916 CPE10 series compact solenoid valve

Name: FESTO CPE10-M1BH-3GLS-M7 196916 CPE10 series compact solenoid valve
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original FESTO Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CPE10-M1BH-3GLS-M7 196916
Product Type	Compact solenoid valve
Product Origin	Germany
Shipping Port	Xiamen
Weight	0.09 lbs

Brand :
FESTO

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

This is a compact solenoid valve from the Festo CPE10 series, product number 196916.

It is a 3/2 normally closed single-electro-operated valve with a width of only 10mm, designed for reliable control in high-density installations. The valve features both electro-hydraulic and pneumatic spring return, operates from -0.9 bar to 10 bar, and has a die-cast aluminum housing.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Control Function: 3/2 normally closed single-electrode control, automatically shuts off in case of power failure.
✓ Compact Installation: Valve body width is only 10mm, suitable for high-density integrated installation.
✓ Reliable Performance: Standard rated flow rate is 400 L/min, response time is 14ms.

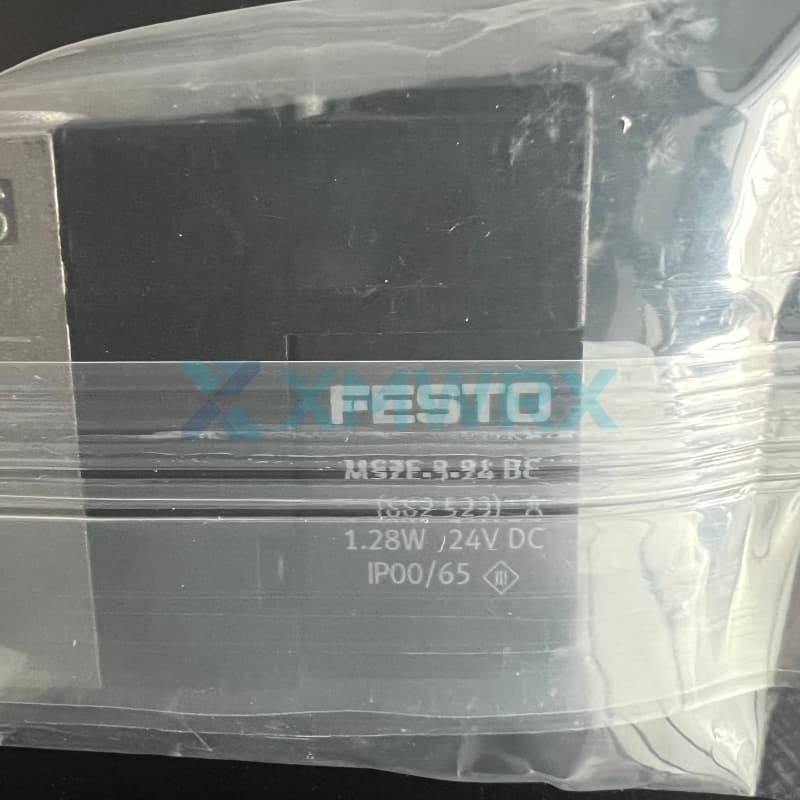

✓ Power Supply: Uses 24V DC low-power coil, power is 1.28W.

Technical Specifications

Brand	FESTO
Model / Part Number	CPE10-M1BH-3GLS-M7
Order No.	196916
Valve Function	3/2 Normally Closed, Single Electrical Control
Width	10 mm
Standard Rated Flow Rate	400 l/min
Operating Medium	Compressed Air (compliant with ISO 8573-1:2010 [7:4:4])
Pilot Pressure	2.5 bar ... 8 bar
Operating Pressure	-0.9 bar ... 10 bar
Operating Temperature	-5 ~ 50℃
Rated Operating Voltage	24V DC
Coil Characteristics	24V DC: 1.28W
Switching Time (On/Off)	14 ms / 14 ms
Protection Rating	IP65 (with socket)
Pneumatic Interface	M7
Seal Material	NBR (Nitrile Butadiene Rubber)
Valve Body Material	Die-cast Aluminum
Corrosion Resistance Rating (CRC)	2 (Medium Corrosion Stress)

Frequently Asked Questions

Q: Can this valve be used to control a single-acting cylinder?

A: Absolutely. As a 3/2 normally closed single-electro-operated valve, it is specifically designed for controlling single-acting cylinders or actuators. When energized, port P (port 1) connects to port A (port 2), pushing the cylinder out; when de-energized, port A (port 2) connects to the exhaust port (port 3), and the cylinder automatically retracts under spring force.

Q: Can it be used in a vacuum system?

A: Yes. The valve has a lower operating pressure limit of -0.9 bar, therefore it can be used as a vacuum breaker valve in vacuum or adsorption systems.

Q: What type of electrical plug and tubing connector does this valve use?

A: Electrically, it uses a two-pin connection. For tubing connections, all ports (ports 1, 2, and 3) are M7 threads, requiring the purchase of appropriate M7 quick-connect fittings or tubing.
