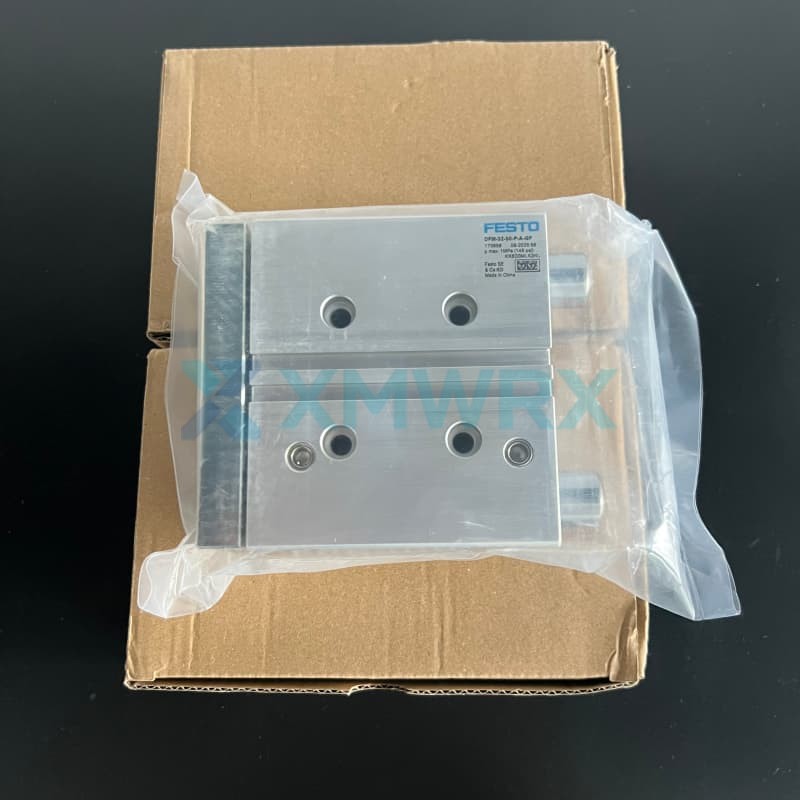

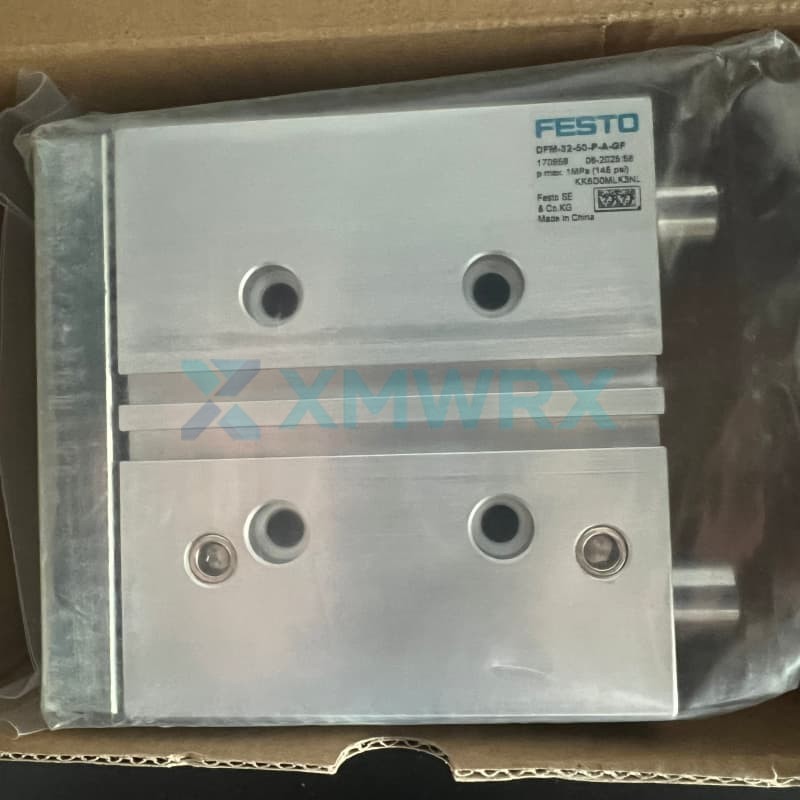

FESTO DFM-32-50-P-A-GF 170858 DFM Guided Pneumatic Actuator, Twin Piston Rod Design, 32mm Bore x 50mm Stroke

Name: FESTO DFM-32-50-P-A-GF 170858 DFM Guided Pneumatic Actuator, Twin Piston Rod Design, 32mm Bore x 50mm Stroke
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original FESTO Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	DFM-32-50-P-A-GF 170858
Product Type	Double rod guide cylinder
Product Origin	Germany
Shipping Port	Xiamen
Weight	4.95 lbs

Brand :
FESTO

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The DFM-32-50-P-A-GF is a guide rod cylinder from Festo

It integrates the drive and guide units into a robust housing, specifically designed to handle high torque and lateral forces. Its compact design allows it to reliably move large loads in confined spaces.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Integrated Guiding and Drive: Combines linear drive and guiding functions, saving installation space.
✓ High Torque and Lateral Force Resistance: Robust structure capable of withstanding large torque and lateral loads.
✓ Double Acting: The piston rod applies force pneumatically in both directions, achieving pushing and pulling motion.
✓ Elastic Cushioning: Equipped with elastic buffer rings/plates at both ends, effectively reducing operating noise and impact.

Technical Specifications

Brand	FESTO
Model / Part Number	DFM-32-50-P-A-GF
Order No.	170858
Cylinder Bore	32 mm
Stroke	50 mm
Air Inlet	G1/8
Operating Pressure	1.5 bar to 10 bar
Operating Temperature	-20 °C to 80 °C
Cushioning Type	P: With elastic buffer rings/pads at both ends
Position Detection	Detectable via proximity switch
Theoretical Force (6 bar)	483 N

Frequently Asked Questions

Q: What is the main function of this cylinder?

A: It is suitable for tasks such as clamping, lifting, and stopping. Its high resistance to lateral forces makes it ideal for automated handling, assembly, and material handling scenarios that require withstanding large loads or torques.

Q: Why choose a guided cylinder instead of a regular cylinder with a guide rod?

A: This model integrates the drive and precision guidance into a single housing, resulting in a more compact and rigid structure. Compared to assembling a regular cylinder and guide unit separately, it simplifies design and installation and can more reliably withstand high torque and lateral forces.

Q: What are its installation options?

A: This cylinder offers highly flexible installation, supporting installation in any orientation. Furthermore, its air port positions are available in multiple options to flexibly adapt to different machine layouts and piping connection requirements.
