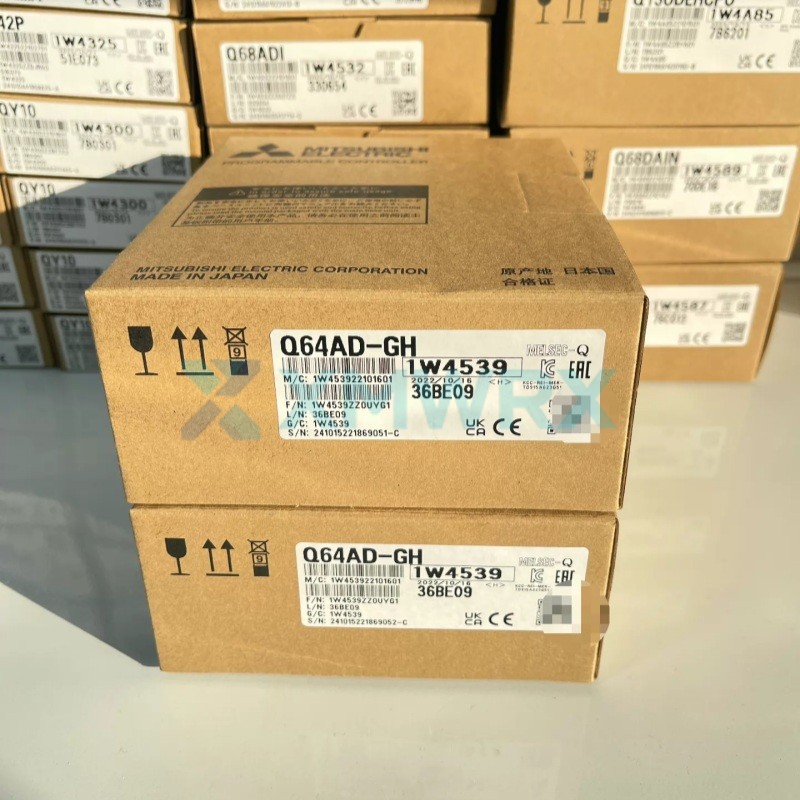

Mitsubishi Q64AD-GH PLC Q Series 4 channel analog input module (PN: 143542)

Name: Mitsubishi Q64AD-GH PLC Q Series 4 channel analog input module (PN: 143542)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC Q Series 4 channel analog input module, high-resolution, galvanic isolated

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Q64AD-GH is a high-resolution, channel-isolated analog input module for Mitsubishi Electric's MELSEC-Q series programmable logic controllers (PLCs).

Material Number: 143542

Channel Isolated: Optical couplers and transformers isolate each analog input channel from the input terminals and from the controller power supply, effectively suppressing ground loop interference and surges, greatly improving the system's anti-interference capability and safety.

High Resolution and Accuracy: Supports 16-bit signed binary conversion (-32768 ~ 32767) or 32-bit extended mode, with a reference accuracy of ±0.05%, enabling precise capture of extremely small industrial signals.

Wide signal range compatibility: All four channels are flexibly configurable, supporting voltage signal (maximum -10V ~ 10V) and current signal (0 ~ 20mA, supports 4 ~ 20mA) inputs, adapting to various types of sensors.

High conversion speed: The full 4-channel A/D conversion speed can reach 10ms, meeting the real-time requirements of most industrial process control applications.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-Q SERIES
Type	ANALOG INPUT
Occupied I/O Points on PLC	16
Integrated Analogue Inputs	4
Input Voltage Range (V)	-10-10; 0-10; 0-5; 1-5
Input Current Range (mA)	0-20; 4-20
Wiring	SCREW
Int. Current Consumption (A)	0,89

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, DNV GL, LR, NK
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

High-precision process control systems: In chemical, water treatment, or boiler control applications, it works with sensors for temperature, pressure, and flow to collect minute fluctuation signals, ensuring precise system operation.
Highly resistant to interference in harsh environments: Thanks to its excellent inter-channel isolation characteristics, it can stably read weak voltage/current differential signals even under harsh conditions such as high inverter interference and common-mode voltage.
Industrial weighing and batching: Connects to electronic scales, weighing transmitters, or tension controllers to accurately process weight and tension data at high resolution (up to -32000 ~ 32000 or 0 ~ 64000).
Automated production lines and robotic arms: Provides high-response (10ms/4 channels) feedback for multi-axis servo control or displacement measurement systems, ensuring the dynamic adjustment accuracy of the production line.

Engineer's Tip: It is primarily used to convert analog voltage or current signals from the field into digital signals for precise logic control and data processing by the PLC.
