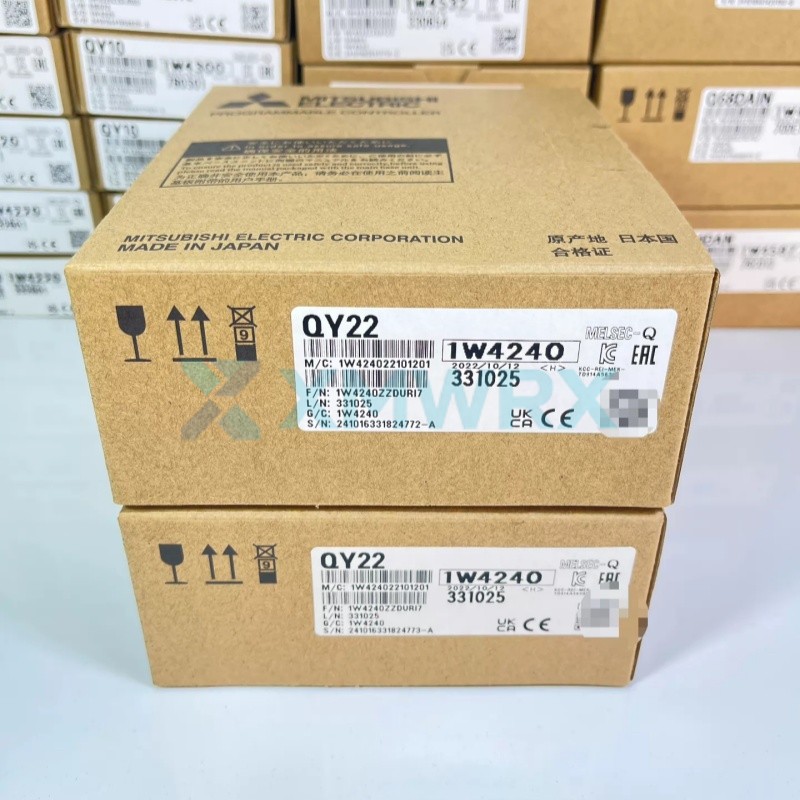

Mitsubishi QY22 MELSEC-Q series PLC AC bidirectional thyristor output module (PN: 136402)

Name: Mitsubishi QY22 MELSEC-Q series PLC AC bidirectional thyristor output module (PN: 136402)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC Q Series Output module; 100-240V AC; 0.6A, 16 triac outputs; screw terminals

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Mitsubishi QY22 is an AC bidirectional TRIAC output module for the MELSEC-Q series programmable logic controllers (PLCs).

Material Number: 136402

Wide voltage and high load capacity: Supports 100V ~ 240V AC, with a maximum load current of 0.6 A/point (4.8 A at the common terminal).

High speed and no contact wear: Employing optocoupler isolation and TRIAC output, it not only eliminates the problem of mechanical contact aging but also achieves a fast response of less than 1 ms.

Built-in surge absorption: Integrated with a CR absorber, it effectively suppresses surge voltages from external switching equipment.

Multi-point sharing: Featuring a 16-point 1 common terminal architecture, coupled with a convenient 18-point terminal block, facilitating system wiring.

High reliability and compatibility: Supports Q-series multi-CPU collaborative architecture, with excellent vibration resistance and noise reduction capabilities, ensuring stable operation in harsh industrial control environments.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-Q SERIES
Type	TRIAC OUTPUT
Occupied I/O Points on PLC	16
Integrated Digital Outputs	16
Output Type	TRIAC
Rated Load Voltage (VAC)	100-240
Wiring	SCREW
Int. Current Consumption (A)	0,25

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Valve and Pump Control: Actuates AC solenoid valves, hydraulic valves, or water pump motors to start and stop.
Lighting Systems: Controls AC lighting circuits in factory workshops or large facilities.
Heating and Temperature Control: Drives heaters or industrial ovens by controlling AC contactors.
Alarms and Indicators: Triggers AC buzzers, alarm lights, or equipment status indicators.

Engineer's Tip: It is primarily used to convert the PLC's internal digital signals into AC control signals required by external devices, and is widely applicable to the switching control of various industrial AC loads.
