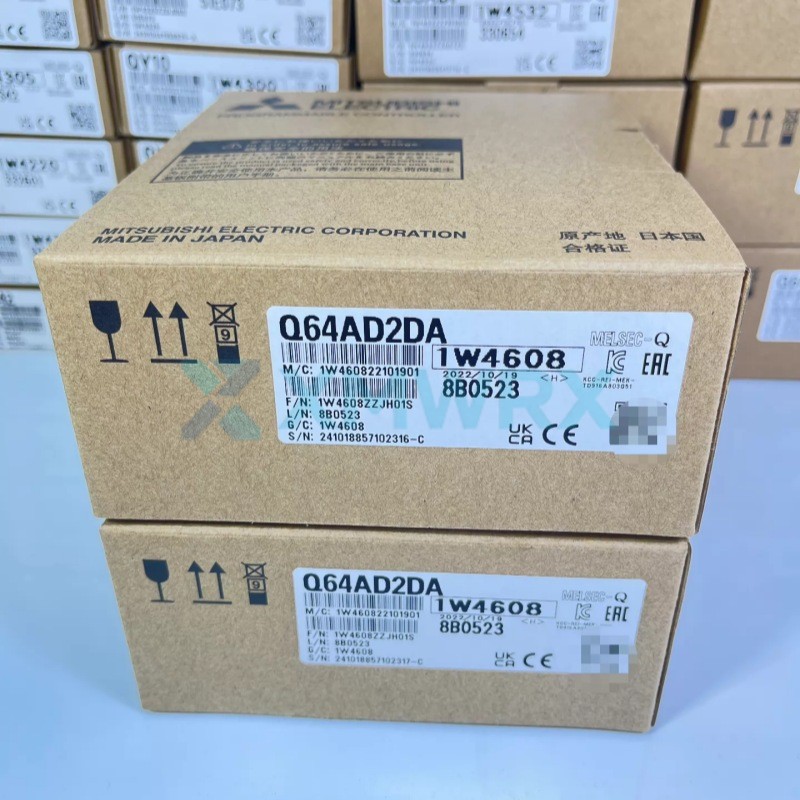

Mitsubishi Q64AD2DA PLC Q Series Multifunctional Analog Input/Output (I/O) Composite Module (PN: 229238)

Name: Mitsubishi Q64AD2DA PLC Q Series Multifunctional Analog Input/Output (I/O) Composite Module (PN: 229238)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Mitsubishi Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

PLC Q Series analog module; 4in-,2outputs; current and voltage 0/4..20mA

Brand :
MITSUBISHI

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Q64AD2DA is a multi-functional analog input/output (I/O) module from Mitsubishi Electric's MELSEC-Q series.

Material Number: 229238

High integration with unified input and output: A single module incorporates 4 channels of A/D conversion (analog to digital) and 2 channels of D/A conversion (digital to analog). It can simultaneously meet the needs of various sensor data acquisition and inverter/valve control, significantly saving control cabinet space and wiring costs.

High precision and wide-range signal processing: Supports voltage (-10V to +10V) and current (0 to 20mA) input and output. It offers a high-resolution mode with digital output values from -16000 to 16000, enabling precise measurement and control of minute variables.

Ultra-high-speed conversion performance: Both A/D and D/A conversion speeds reach 500 μs/channel, enabling rapid response to transient changes in the field and making it suitable for applications with extremely high real-time requirements.

Excellent anti-interference and electrical isolation: The module's I/O terminal block and controller power supply employ optical coupling isolation, providing an isolation voltage of up to 1500V in genuine original products, effectively blocking electrical noise and surge interference from the industrial environment.

Flexible filtering and scaling functions: Built-in moving average filtering function effectively eliminates signal fluctuations; and multiple output range modes can be flexibly set (such as 0~4000 or 0~16000), perfectly matching the upper-level system without complex external programming.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Series	MELSEC-Q SERIES
Type	ANALOG INPUT/OUTPUT COMBINED
Power Supply (V)	24
Current Type	DC
Occupied I/O Points on PLC	16
Integrated Analogue Inputs	4
Integrated Analogue Outputs	2
Input Voltage Range (V)	-10-10; 0-10; 0-5; 1-5
Input Current Range (mA)	0-20; 4-20
Output Voltage Range (V)	-10-10; 0-5; 1-5
Output Current Range (mA)	0-20; 4-20
Wiring	SCREW
Int. Current Consumption (A)	0,17

Conformity & Certifications

CE	COMPLIANT
UL / cUL	COMPLIANT
UKCA	COMPLIANT
Shipping Approvals	ABS, BV, DNV GL, LR, NK, RINA
EAC	NON-COMPLIANT

Why Source This Module From Us?

Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
End-to-End Support: From pre-sales model verification to after-sales wiring guidance, our engineering team ensures a hassle-free procurement process.
Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

Variable Frequency Drive (VFD) and Servo Motor Speed Control: Frequency commands are sent to the VFD via the module's analog output channels (e.g., 0~10V or 4~20mA) to achieve precise speed control and regulation of conveyor belts, mixers, or water pumps.
Industrial Environmental Temperature and Pressure Monitoring: Utilizing its high-precision input channels, various field sensors (such as RTDs and pressure transmitters) are connected to perform rigorous real-time data acquisition of the production workshop or equipment status.
PID Closed-Loop Control System: Combined with the module's built-in isolation protection technology, a highly interference-resistant closed-loop control circuit can be constructed to automatically adjust valve openings to maintain constant temperature, constant pressure, or constant flow.

Engineer's Tip: It combines digital-to-analog (D/A) and analog-to-digital (A/D) conversion functions into one, primarily used to convert analog signals from field instruments into digital values for the PLC, or to convert digital PLC commands into analog signals to control external devices.
