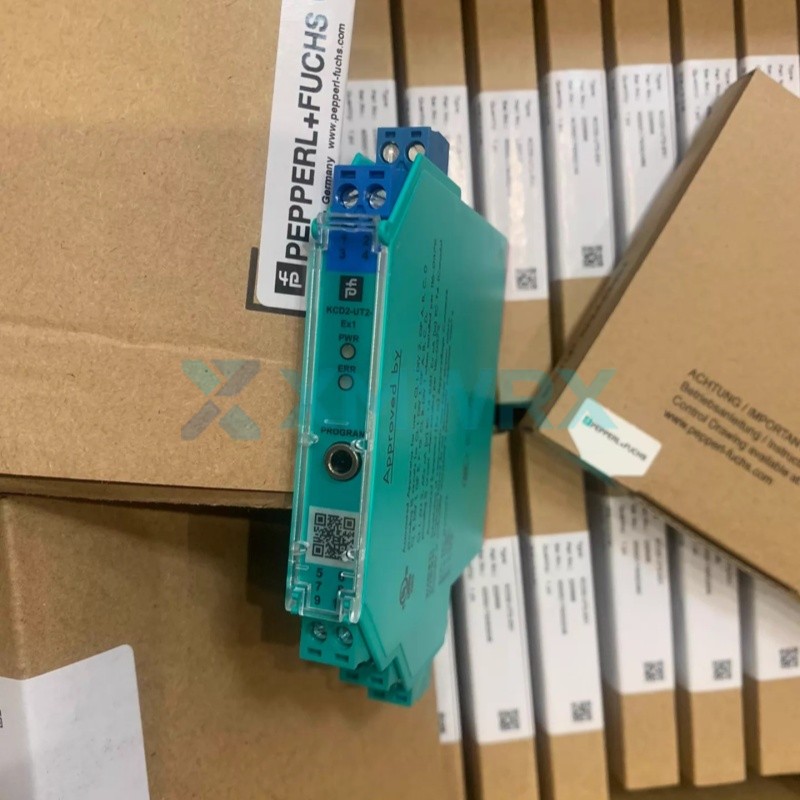

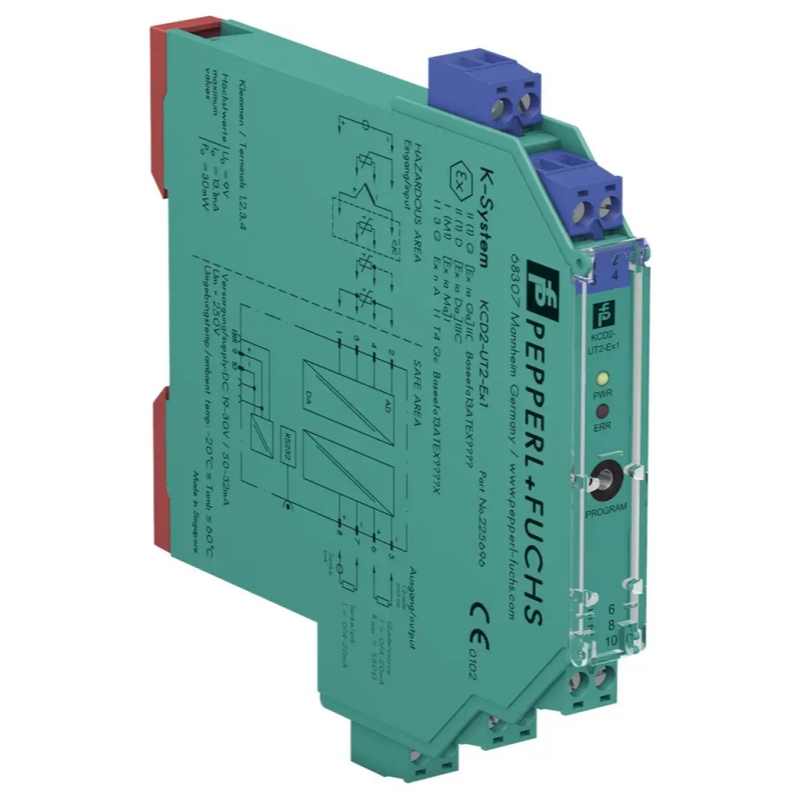

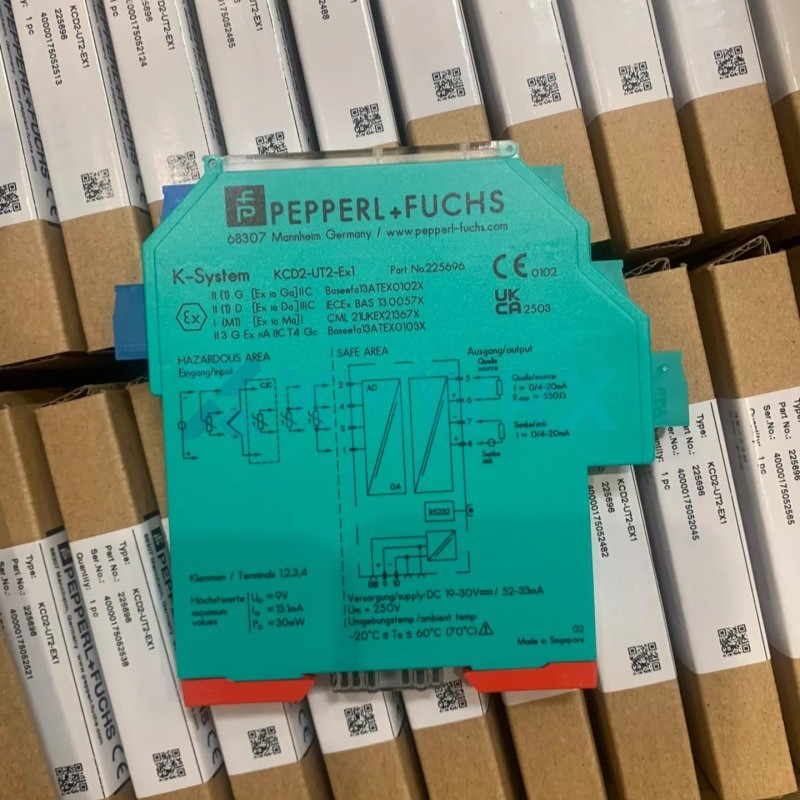

Pepperl+Fuchs KCD2-UT2-Ex1 Universal Temperature Converter / 225696

Pepperl+Fuchs KCD2-UT2-Ex1 Universal Temperature Converter / 225696

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original PEPPERL+FUCHS Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	KCD2-UT2-Ex1
Product Type	Universal Temperature Converter
Product Origin	Germany
Shipping Port	Xiamen
Weight	220g

Brand :
PEPPERL+FUCHS

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The KCD2-UT2-Ex1 is a high-performance, general-purpose temperature transducer (also known as a temperature safety barrier or isolator) from Pepperl+Fuchs, a German company.

It is primarily used in industrial automation control systems to isolate temperature sensor signals from hazardous areas and convert them into standard signals for transmission to safe areas. It is widely used in petrochemical, pharmaceutical, and metallurgical industries, among others, where strict explosion-proof requirements exist.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Signal Conversion: Accurately converts various temperature sensor signals from the field into standard 0/4 mA ... 20 mA analog current signals within a safe area.
✓ Software Configuration: Supports convenient parameter configuration and debugging via PACTware™ software.
✓ Fault Diagnosis: Features powerful line fault (LFD) detection capabilities, enabling real-time monitoring of sensor open circuits, short circuits, or burnouts, and providing alarms via LED indicators or fault outputs.
✓ Functional Safety: Complies with IEC 61508 / IEC 61511 standards, achieving a safety integrity level of up to SIL 2, providing reliable safety assurance for industrial process control.
✓ Compact Design: Employs a standard 1-channel isolation barrier design, with a housing width of only 12.5 mm, saving significant control cabinet space when mounted on DIN rails.
✓ Operating Environment: Standard operating temperature range is -20°C to 60°C, adaptable to various industrial environments.

Technical Specifications

Brand	Pepperl+Fuchs
Model / Part Number	KCD2-UT2-Ex1
Material Number (MNR)	225696
Rated Voltage	19 ... 30 V DC
Ripple	Within power supply capacitance difference range
Power Consumption	≤ 0.98 W
Safety Integrity Class (SIL)	SIL 2
Diagnostic Functions	Line Fault (LFD) detection
Isolation Features	1-channel isolation barrier (input, output, and power supply isolation)
Case Width	12.5 mm
Mounting Method	Standard DIN rail mounting
Programming Interface	Equipped with a programming socket

Frequently Asked Questions

Q: What are some typical application examples of this product?

A: The core function of the KCD2-UT2-Ex1 is to safely and accurately transmit temperature signals from hazardous areas (such as explosive or flammable environments) to safe areas such as control rooms. Based on its strong explosion-proof isolation capabilities and broad signal compatibility, it has typical applications in many industrial fields with extremely high safety requirements. In general, this product is a classic and reliable choice for scenarios involving "hazardous area temperature acquisition," "high-precision signal isolation," and "integration of signals from older potentiometers."

Q: What are its advantages compared to similar products?

A: The KCD2-UT2-Ex1's advantages lie in its high compatibility ("one machine for multiple uses"), convenient installation experience that eliminates the need for wiring, and intelligent safety diagnostics that meet international standards. It is ideal for complex industrial environments with strict requirements on cost, space, and safety.

Q: What precautions should be taken when installing and wiring?

A: If you encounter a fault during wiring or debugging, the LED indicators on the device and the Line Fault Diagnosis (LFD) function in the PACTware software can help you quickly locate whether it is a sensor disconnection, short circuit, or wiring error.
