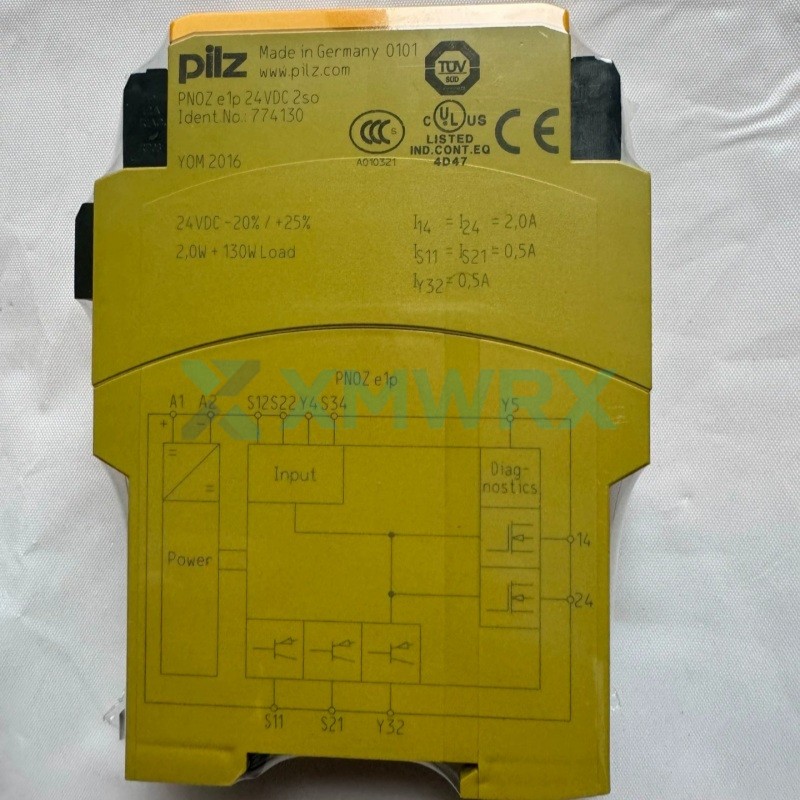

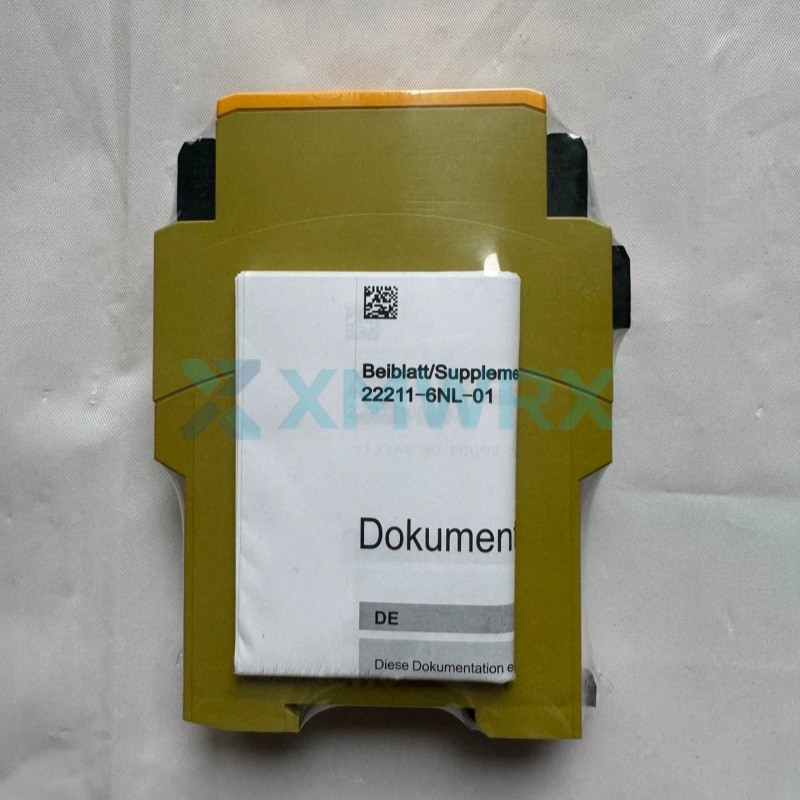

Pilz 774130 PNOZ e1p 24VDC 2so Safety relay

Compact safety relay with semiconductor (solid-state) output.

Pilz 774130 PNOZ e1p 24VDC 2so Safety relay

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Pilz Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	PNOZ e1p 24VDC 2so
Product Type	Safety relay
Product Origin	Germany
Shipping Port	Xiamen
Weight	0.27lbs

Brand :
Pilz

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The Pilz 774130 is a widely used safety relay in industrial automation.

It belongs to Pilz's classic PNOZ safety relay series and is primarily used to monitor various safety input devices, ensuring that machinery can quickly and reliably stop operating in the event of a hazard, thus protecting the safety of personnel and machines.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High Safety: Complies with multiple international safety standards (such as EN 954-1 Class 2, 3, or 4), and features continuous self-monitoring to ensure uninterrupted operation in critical situations.

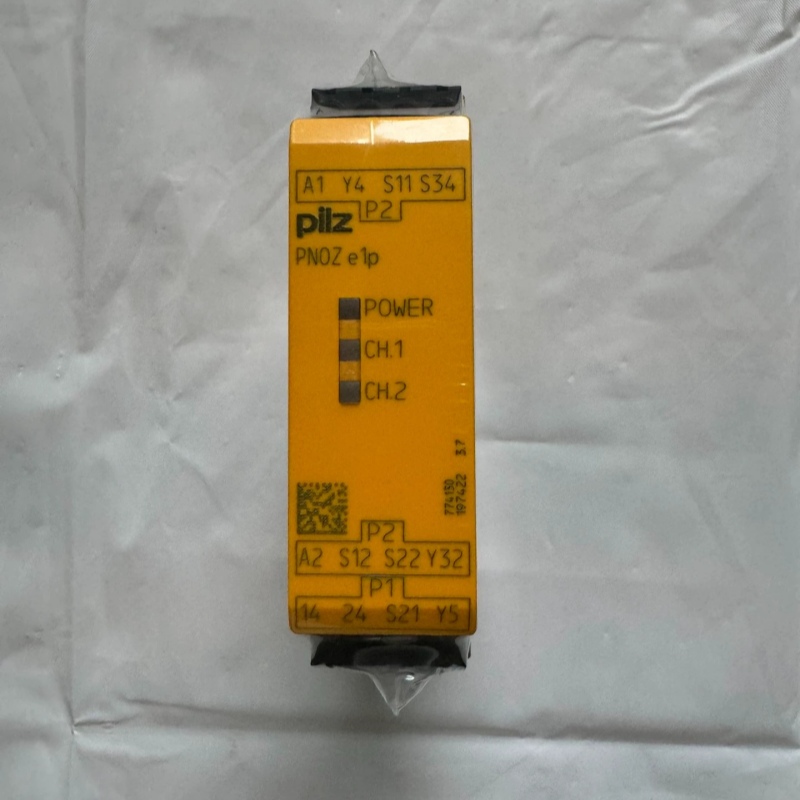

✓ Status Visualization: Equipped with LED indicators, the unit clearly displays power status, channel status, and output contact on/off status, greatly facilitating daily debugging and troubleshooting.
✓ Flexible Expansion: Supports increasing the number of available safety contacts by connecting expansion modules to meet more complex control needs.

Technical Specifications

Brand	Pilz
Model / Part Number	PNOZ e1p 24VDC 2so
Material Number (MNR)	774130
Product Type	Safety relay
GTIN	4046548011999
Supply Voltage	24 V DC
Safety Outputs	2 semiconductor safety outputs (2 SO)
Test Pulse Outputs	2
Terminals	Pluggable screw terminals
Dimensions (W × H × D)	22.5 mm × 94.0 mm × 121.0 mm
Operating Temperature	-10°C to 55°C

Frequently Asked Questions

Q: What are the specific application scenarios for this safety relay?

A: This relay is mainly used for real-time monitoring of the status of various safety input devices. Once a danger signal is detected, it will immediately cut off the machine's power supply. It is most commonly used to monitor the following basic safety devices:

* Emergency Stop Button: Monitors whether the emergency stop button has been pressed, ensuring instantaneous shutdown in case of sudden danger.

* Safety Door/Safety Door Switch: Monitors the closing status of protective doors or fences. If the door is accidentally opened while the equipment is running, or if the equipment is started while the door is not properly closed, the relay will force the equipment to stop.

* Safety Light Curtain/Light Grating: Monitors the status of photoelectric protection equipment. When a person or object blocks the light curtain from entering the danger zone, the light grating emits a signal, and the relay immediately cuts off the equipment's power supply.

* Limit Switch: Monitors whether mechanical moving parts have reached preset safety limit positions.

Q: Can this relay be used with other safety devices?

A: Yes, this relay (Pilz 774130 / PNOZ e1p) absolutely can, and it was specifically designed for use with other safety devices. Its main function is to act as the "brain" of the safety circuit, receiving and monitoring signals from various safety devices.

Q: How do I determine if it's suitable for my specific application?

A: If your application is standard 24V automation equipment requiring the highest level of safety protection (PL e), and primarily used to control contactor coils or send signals to a PLC, then the Pilz 774130 is a very reliable and classic choice. If you're still unsure, it's recommended to take a picture of your electrical schematic or load nameplate and consult a professional electrical engineer or Pilz's official technical support.
