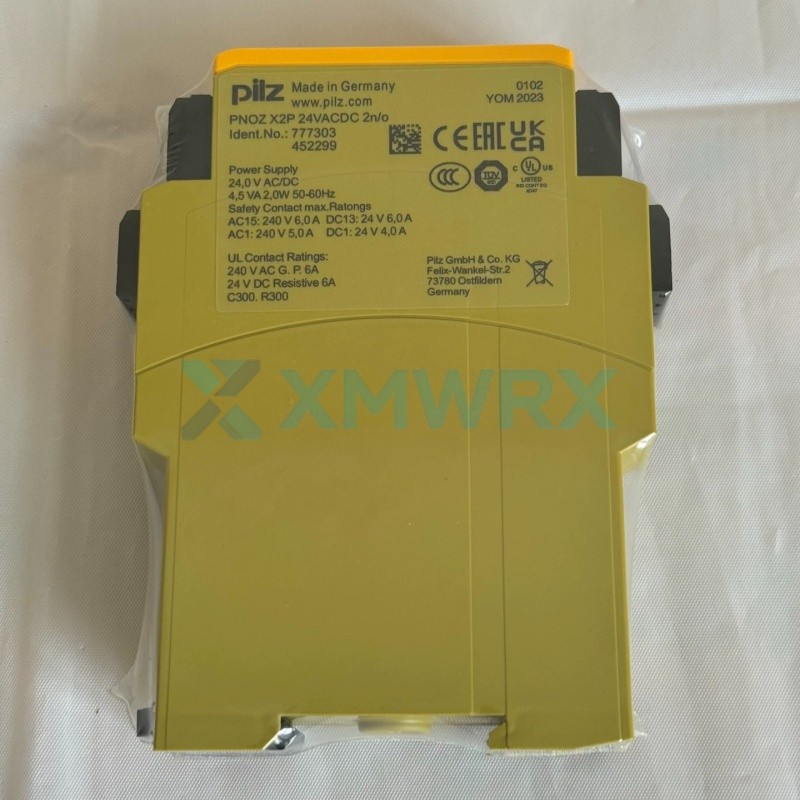

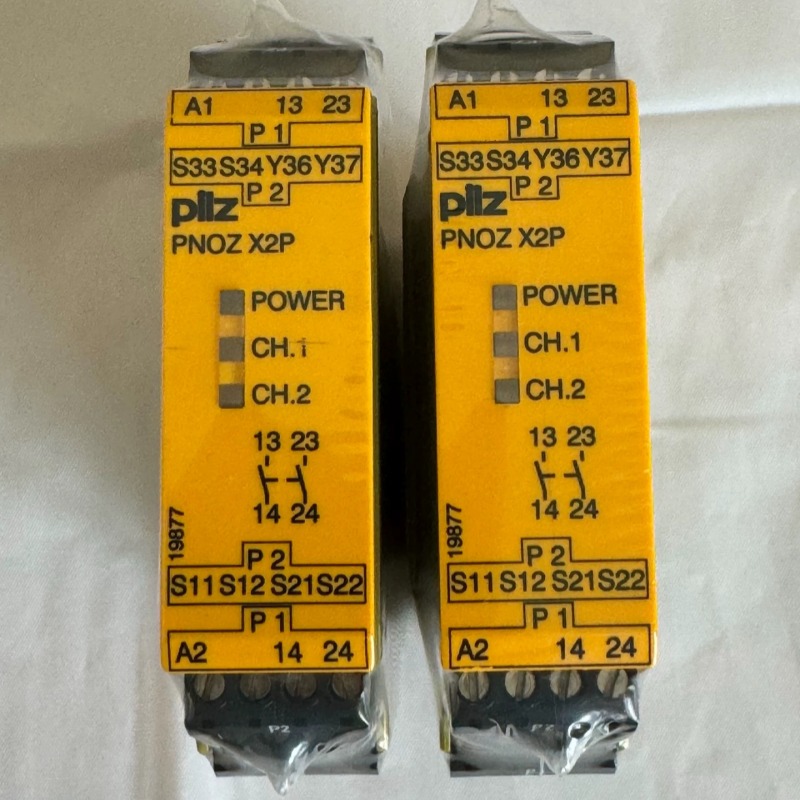

Pilz 777303 PNOZ X2P 24VACDC 2n/o Safety relay

Pilz 777303 PNOZ X2P 24VACDC 2n/o Safety relay

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Pilz Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	PNOZ X2P 24VACDC 2n/o
Product Type	Safety relay
Product Origin	Germany
Shipping Port	Xiamen
Weight	200g

Brand :
Pilz

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 777303 is a stand-alone safety relay from the German brand PILZ, specifically model PNOZ X2P 24VACDC 2n/o.

It is primarily used in industrial safety circuits to monitor emergency stop devices, safety doors, and other equipment, ensuring the safety of personnel and machinery.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Power Supply Voltage: 24V AC/DC (AC/DC compatible)
✓ Safety Output: Provides 2 normally open (N/O) safety contact outputs.
✓ Input Channels: Supports 1 or 2-channel wiring and features short-circuit detection between contacts.
✓ Starting Modes: Supports automatic start, manual start, and monitored manual start to meet various safety control requirements.
✓ Load Capacity: Maximum control current is 6A under AC1/DC1 standards; maximum control current is 5A under AC15 standards.

Technical Specifications

Brand	Pilz
Model / Part Number	PNOZ X2P 24VACDC 2n/o
Material Number (MNR)	777303
Product Type	Safety relay
GTIN	4046548009873
Power Supply Voltage	24V AC/DC
Power Consumption	AC 4.5W / DC 2W
Safety Contact Outputs	2 normally open (N/O) safety contacts
Dimensions	Width 22.5mm × Height 94mm × Depth 121mm
Housing Material	PPO UL 94 V1 for bottom and top, ABS UL 94 V0 for front panel
Mounting Method	Supports installation in any position
Terminals	Pluggable screw terminals, supports 24-12 AWG flexible conductors
Ambient Temperature	-10°C to 55°C
Ambient Humidity	93% relative humidity at 40°C (condensation not allowed)

Frequently Asked Questions

Q: What are the core advantages of this safety relay?

A: The core advantage of the PILZ 777303 (PNOZ X2P) safety relay lies primarily in how it differentiates itself from ordinary relays, thus providing ultimate safety in industrial environments. Simply put, its advantages can be summarized as "fail-safe design" and "extreme engineering ease of use."

Q: What are its specific wiring methods?

A: The PNOZ X2P (777303) safety relay offers highly flexible wiring options to adapt to various safety control needs. Its wiring mainly consists of four core parts: power supply, safety input, reset/start, and safety output. Please contact me for more detailed information.

Q: What are the common faults of this relay?

A: In practical use, common faults of the PNOZ X2P (777303) usually fall into the categories of "failure to reset/failure to engage," "false alarms/frequent tripping," and "abnormal indicator lights." Often, the relay error is not due to a faulty relay itself, but rather to problems with external wiring, external devices, or parameter settings.
