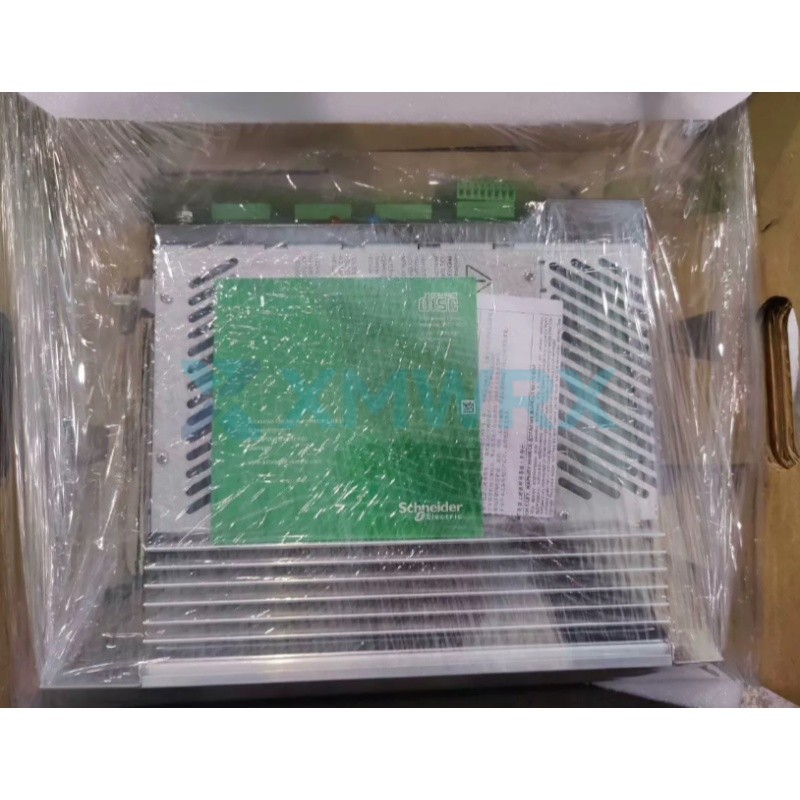

Schneider ELAU MAX-4/11/03/032/99/0/0/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/032/99/0/0/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/032/99/0/0/00
Product Type	Motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	3.9 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/032/99/0/0/00 is a high-end multi-axis motion controller from Schneider Electric's ELAU PacDrive MAX-4 series. It features a 32-bit hard real-time floating-point processor, 32KB of program storage, and the "99" in the model name indicates support for up to 99 axes of servo synchronous linkage. The sixth and seventh bits are 0/0. The entire unit has no built-in digital I/O or analog AI/AO terminals, retaining only the core computing and communication units. External I/O expansion modules are required for sensor and solenoid valve signal acquisition and output. Utilizing the SERCOS III real-time bus and compatible with VCA and VDM servo drives, it is suitable for large-scale multi-station packaging, printing, and pharmaceutical filling production lines. The VxWorks hard real-time system has a minimum motion cycle of 250μs, stably achieving highly complex motion processes such as flying shears, electronic cams, and multi-unit synchronization.

Core Features

✓ 99-axis ultra-large capacity synchronous control: A single controller can manage up to 99 servos, supporting the storage and dynamic switching of a large number of electronic cam curves, and stably completing complex multi-axis processes such as electronic gear, tracking synchronization, constant tension closed loop, and high-speed flying shear cutting.
✓ No onboard I/O, flexible expansion configuration: The main body does not have any digital or analog input/output terminals, and digital or analog expansion modules can be freely selected according to the equipment location requirements to adapt to automation equipment of different scales.
✓ IEC61131-3 Standardized Programming: Supports mainstream programming methods such as structured text, ladder diagrams, and function blocks; logic operations and motion control are executed in parallel, resulting in fast real-time response.
✓ Modular installation with standard DIN rails: The unit has a neat structure, making it suitable for large electrical control cabinets with multiple controllers arranged densely, and it is easy to disassemble and maintain.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/032/99/0/0/00
Product Type	Motion controller
Processor	32-bit floating-point real-time processor
Program storage area	32KB non-volatile memory, saves recipes and cam programs even when power is off.
Main power supply	DC24V control power supply
Est. Weight	3.9 KG

Frequently Asked Questions

Q: What is the maximum number of servo axes that the MAX-4/11/03/032/99/0/0/00 can control, and what is its program storage capacity?

A: The "99" in the model number indicates that it supports a maximum of 99 servo axes for synchronous linkage. It has a built-in 32KB program storage space, which can store cam curves and production recipe motion programs for medium-sized equipment, and is suitable for large-scale multi-axis automated equipment.

Q: Does the MAX-4/11/03/032/99/0/0/00 have built-in input/output terminals? How can I acquire signals from external sensors?

A: This controller has no built-in digital or analog I/O terminals and cannot be directly connected to components such as solenoid valves or tension sensors. To acquire or output signals, an external I/O expansion module is required

Q: What diagnostic tools are included with the MAX-4/11/03/032/99/0/0/00?

A: The built-in 8-channel software waveform oscilloscope can monitor servo operation waveforms in real time, automatically store complete fault logs, and, in conjunction with the machine's operation and alarm indicator lights, quickly locate bus and servo-related fault points.
