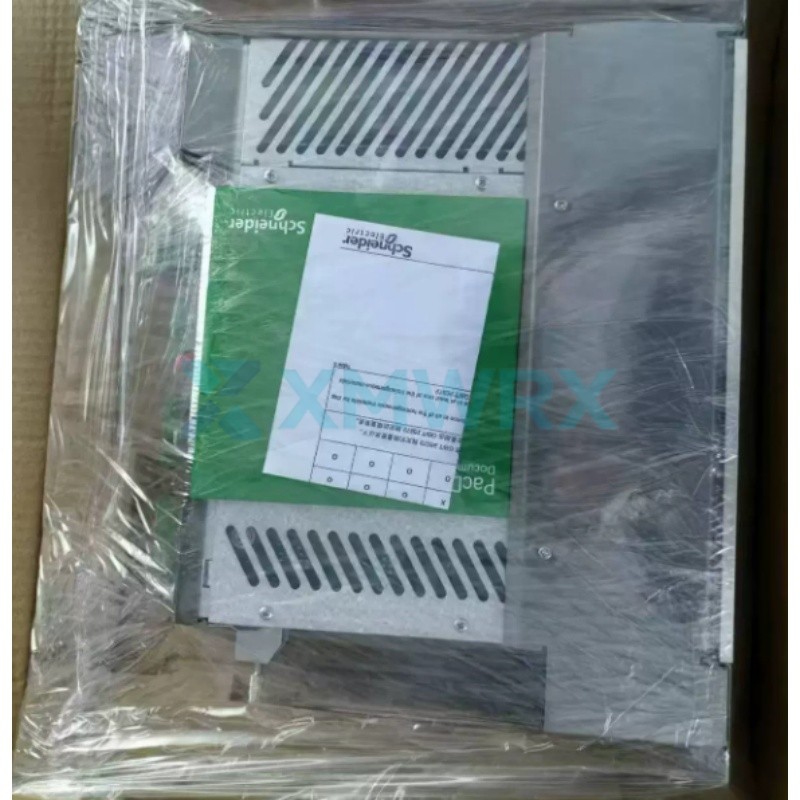

Schneider ELAU MAX-4/11/03/032/99/1/1/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/032/99/1/1/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/032/99/1/1/00
Product Type	Motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	3.9 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/032/99/1/1/00 is the Schneider Electric ELAU PacDrive MAX-4 series multi-axis motion controller, a German-made control unit equipped with a 32-bit hard real-time floating-point processor, 32KB program storage, and supports up to 99 axes of servo synchronous linkage. The model suffix 1/1 indicates integrated complete digital I/O + analog channels. Relying on the SERCOS III servo bus and compatible with the VDM full range of servo drives, it is suitable for large multi-axis packaging, printing, and pharmaceutical filling equipment. Equipped with the VxWorks real-time system, with a minimum motion cycle of 250μs, it can realize highly complex motion processes such as flying shears, electronic cams, and multi-unit synchronization, making it suitable for automated production lines with moderate program size and a large number of axes.

Core Features

✓ 99-axis ultra-large capacity synchronous control: A single controller can manage up to 99 servos, supporting the storage and dynamic switching of a large number of electronic cam curves, and stably completing complex multi-axis processes such as electronic gear, tracking synchronization, constant tension closed loop, and high-speed flying shear cutting.
✓ Integrated onboard I/O channels: It comes with multiple digital DI/DO + 2AI/2AO analog interfaces, which can directly acquire tension, pressure and temperature analog signals without the need for additional analog expansion modules, simplifying control cabinet wiring.
✓ IEC61131-3 Standardized Programming: Supports mainstream programming methods such as structured text, ladder diagrams, and function blocks; logic operations and motion control are executed in parallel, resulting in fast real-time response.
✓ Modular installation with standard DIN rails: The unit has a neat structure, making it suitable for large electrical control cabinets with multiple controllers arranged densely, and it is easy to disassemble and maintain.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/032/99/1/1/00
Product Type	Motion controller
Processor	32-bit floating-point real-time processor
Program storage area	32KB non-volatile memory, saves recipes and cam programs even when power is off.
Main power supply	DC24V control power supply
Est. Weight	3.9 KG

Frequently Asked Questions

Q: What is the maximum number of servo axes that the MAX-4/11/03/032/99/1/1/00 can control, and what is its program storage space?

A: The "99" in the model number indicates that it supports a maximum of 99 servo axes for synchronous linkage. It has a built-in 32KB program storage space, which can store cam curves and production recipe motion programs for medium-sized equipment, and is compatible with multi-axis large-scale automated equipment.

Q: Does the MAX-4/11/03/032/99/1/1/00 have built-in analog input channels? Is an expansion module needed to acquire sensor signals?

A: It has 2 built-in analog inputs and 2 analog outputs, along with 20 digital inputs and 16 digital outputs. It can be directly connected to tension and pressure analog sensors without the need for additional analog expansion modules.

Q: What communication interfaces does the MAX-4/11/03/032/99/1/1/00 have, and what external devices can it connect to?

A: It integrates multiple interfaces including SERCOS servo bus, Ethernet, Profibus DP, CANopen, and RS485, allowing connection to HMI touchscreens, host control computers, third-party frequency converters, and digital sensor acquisition modules.
