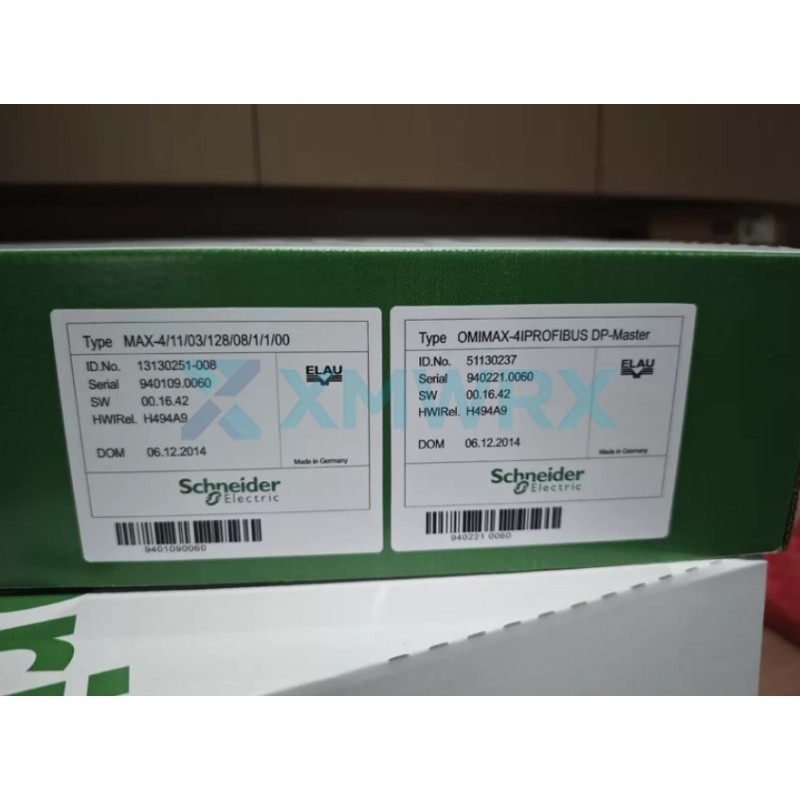

Schneider ELAU MAX-4/11/03/128/08/1/1/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/128/08/1/1/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/128/08/1/1/00
Product Type	Motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	2.2 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/128/08/1/1/00 is a Schneider Electric ELAU PacDrive MAX-4 series small-to-medium-sized integrated motion controller. It features a German-made control unit, a 32-bit hard real-time processor, 128KB of built-in program memory, and supports up to 8-axis servo synchronous linkage. The model suffix "1/1" indicates that it has complete digital I/O + analog channels. Utilizing the SERCOS III bus and compatible with the VDM series of servo drives, it is suitable for small to medium-sized packaging, printing, and pharmaceutical equipment with up to 8 axes. The VxWorks real-time system ensures an extremely short motion cycle of 250μs, stably completing conventional high-speed synchronous processes such as flying shears, electronic cams, and synchronous feeding.

Core Features

✓ 8-axis precise multi-axis synchronous control: A single controller can manage up to 8 servos and supports multiple sets of electronic cam curve switching, easily realizing motion processes for small and medium-sized equipment such as electronic gears, tracking synchronization, simple tension closed loop, and high-speed cutting.
✓ Standard IEC61131-3 programming system: Compatible with ST, ladder diagram, and function block programming methods, it allows for parallel operation of logic and motion tasks, has a fast response speed, and is suitable for the development of programs for small and medium-sized automation equipment.
✓ Integrated full set of onboard I/O: Comes with multiple digital input/output channels + 2AI/2AO analog channels, allowing for the acquisition of pressure, tension, and temperature analog signals without additional expansion modules, simplifying control cabinet wiring.
✓ Modular installation with standard DIN rails: The compact design is suitable for compact layout in small and medium-sized electrical control cabinets, and installation and disassembly are convenient.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/128/08/1/1/00
Product Type	Motion controller
Processor	32-bit floating-point real-time processor
Program storage area	128KB non-volatile memory, saves recipes and cam programs even when power is off.
Main power supply	DC24V control power supply
Est. Weight	2.2 KG

Frequently Asked Questions

Q: Which I/O channels does the MAX-4/11/03/128/08/1/1/00 have, and does it require an external analog expansion module?

A: It has 20 built-in digital inputs and 16 digital outputs, and also integrates 2 analog inputs and 2 analog outputs, allowing direct acquisition of tension and pressure analog signals without the need for an additional analog expansion module.

Q: What debugging and diagnostic tools does the MAX-4/11/03/128/08/1/1/00 come with?

A: It has a built-in 8-channel software waveform oscilloscope that allows real-time observation of servo operation waveforms and automatically stores complete fault logs. Combined with the machine's status indicator lights, it facilitates quick troubleshooting of bus, servo, and I/O point faults.

Q: What are the installation environment restrictions for MAX-4/11/03/128/08/1/1/00?

A: It is designed for vertical installation using DIN rails, with an IP20 protection rating. It can only be placed inside a sealed electrical control cabinet. The operating ambient temperature is 0~50℃, and the environment must be dry, free from condensation, dust, and moisture.
