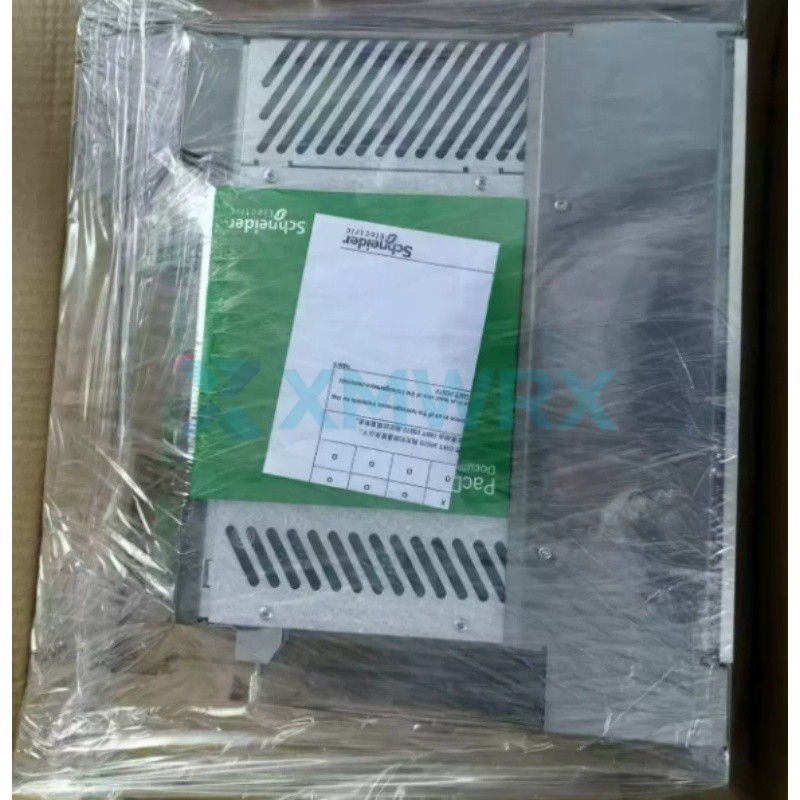

Schneider ELAU MAX-4/11/03/128/99/0/0/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/128/99/0/0/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/128/99/0/0/00
Product Type	Motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	3.9 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/128/99/0/0/00 is a high-performance motion controller from Schneider Electric's ELAU PacDrive MAX-4 series. It features a German-made motion control core, a 32-bit floating-point real-time processor, 128KB of program storage, and supports up to 99-axis servo synchronous control. The sixth digit of the model number is 0, indicating the absence of built-in onboard I/O modules and digital/analog terminals, retaining only basic communication and processing units. It relies on the SERCOS III bus with VCA and VDM servo drives and can connect to external independent I/O expansion modules for signal acquisition and output. Suitable for large multi-axis packaging, printing, and pharmaceutical filling equipment, the hard real-time system has a minimum motion cycle of 250μs, stably achieving various complex synchronous motion processes.

Core Features

✓ High-capacity multi-axis synchronous control: A single controller can drive up to 99 servo axes, support multiple sets of electronic cam curve switching, and is compatible with high-speed processes such as flying shear, electronic gear, tracking synchronization, and constant tension control.
✓ Multi-bus communication integration: Standard configuration includes SERCOS III servo bus, integrating Ethernet, Profibus DP, CANopen, and RS485 debugging interfaces, which can be connected to touch screens, host computers, and third-party frequency converters.
✓ No built-in I/O terminals: can be flexibly equipped with expansion digital and analog modules, and input and output points can be configured as needed to adapt to the signal acquisition needs of different devices.
✓ Modular mounting with standard DIN rails: compact structure, suitable for scenarios with multiple controllers densely arranged in control cabinets.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/128/99/0/0/00
Product Type	Motion controller
Processor	32-bit RISC high-speed floating-point processor
Program storage area	128KB program storage area
Main power supply	DC24V control power supply
Est. Weight	3.9 KG

Frequently Asked Questions

Q: What is the biggest difference between the MAX-4/11/03/128/99/0/0/00 and other models in the same series?

A: The sixth digit of this model's code is 0. The entire unit has no built-in onboard digital or analog I/O terminals and cannot directly connect external sensors or solenoid valves. If signal acquisition and output are required, it must be used with an external I/O expansion module.

Q: What is the maximum number of servo axes that the MAX-4/11/03/128/99/0/0/00 can control, and which drive modules are compatible?

A: The "99" in the model number indicates that it supports a maximum of 99 servo axes for synchronous linkage. It has a built-in 128KB program storage space and can perfectly interface with all ELAU servo drives in the VDM and VCA series, achieving multi-axis coordinated motion via the SERCOS bus.

Q: What motion processes can the MAX-4/11/03/128/99/0/0/00 achieve, and what programming standards does it follow?

A: It adopts the IEC61131-3 internationally recognized PLC programming standard, supporting electronic cams, electronic gears, flying shear marking, spindle synchronous cutting, and dynamic tension closed-loop control. Its extremely short motion cycle ensures the synchronization accuracy of high-speed equipment.
