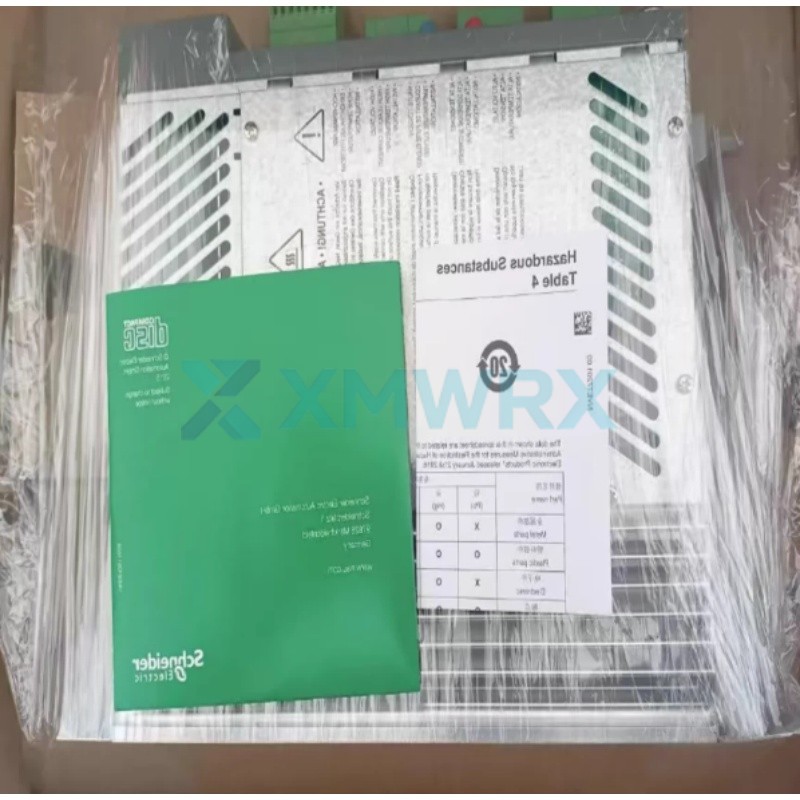

Schneider ELAU MAX-4/11/03/128/99/1/0/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/128/99/1/0/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/128/99/1/0/00
Product Type	motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	3.9 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/128/99/1/0/00 is the Schneider Electric ELAU PacDrive MAX-4 series high-performance motion controller, featuring a German-made industrial control core unit, a 32-bit high-speed floating-point processor, and support for up to 99-axis servo synchronous linkage. It has 128KB of built-in program storage. Compared to the 1/1 version in the same series, this model lacks built-in analog input/output, retaining only digital I/O and standard communication interfaces. It relies on the SERCOS III bus and is compatible with VDM and VCA servo drives, making it suitable for multi-axis synchronous equipment in food packaging, printing and cutting, and pharmaceutical filling. Equipped with the VxWorks real-time system, its logic and motion calculation cycle is as low as 250μs, meeting the requirements of complex high-speed processes such as flying shears and electronic cams.

Core Features

✓ Ultra-large multi-axis collaborative control: A single controller can manage up to 99 servo axes, supporting 256 sets of dynamic electronic cam curves, and providing stable and efficient electronic gear, tracking synchronization, and tension closed-loop calculation.
✓ Complies with the IEC61131-3 international programming standard:supports multiple programming methods such as ST, ladder diagram, and function block, with a high-speed task cycle of 250μs and fast logic response speed.
✓ Onboard pure digital I/O: No built-in analog channels, but can be connected to external analog expansion modules to achieve tension and pressure acquisition; comes with fault log and software oscilloscope diagnostic functions.
✓ Modular mounting with standard DIN rails: compact structure, suitable for scenarios with multiple controllers densely arranged in control cabinets.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/128/99/1/0/00
Product Type	Motion controller
Processor	32-bit RISC high-speed floating-point processor
Program storage area	128KB non-volatile program memory
Main power supply	DC24V control power supply
Est. Weight	3.9 KG

Frequently Asked Questions

Q: What is the core difference between the MAX-4/11/03/128/99/1/0/00 and the version with the suffix 1/1?

A: Both controllers have identical computing power, maximum number of axes, and communication specifications. This model has a suffix of 0 and no built-in analog input/output channels. External expansion modules are required to acquire analog signals such as tension and pressure. The 1/1 version has 2 AI channels and 2 AO channels for analog input/output.

Q: What is the maximum number of servo axes that the MAX-4/11/03/128/99/1/0/00 can control, and what servo drive is it compatible with?

A: It supports up to 99 servo axes in synchronous linkage, with a built-in 128KB program memory; it is perfectly compatible with the VDM series and the entire VCA07/VCA09 ELAU servo drive series, and the entire SERCOS bus system has high synchronization accuracy.

Q: What debugging and diagnostic functions does the MAX-4/11/03/128/99/1/0/00 come with?

A: It has a built-in 8-channel software waveform oscilloscope and fault log storage function. Combined with the machine's running and fault indicator lights, it can quickly troubleshoot bus, servo, and I/O point anomalies, making equipment debugging and maintenance more efficient.
