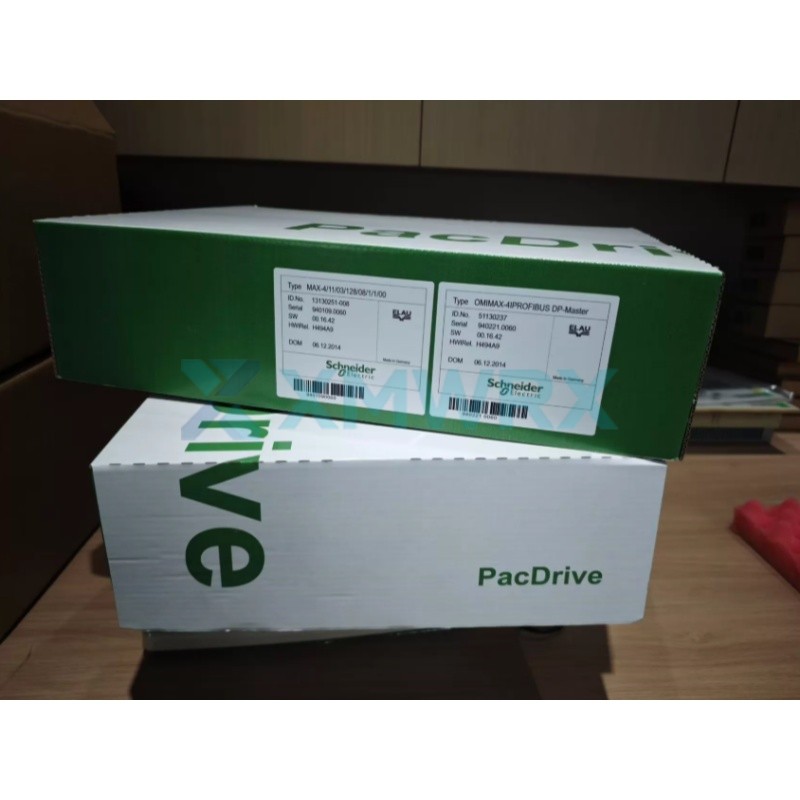

Schneider ELAU MAX-4/11/03/128/99/1/1/00 Motion controller

Name: Schneider ELAU MAX-4/11/03/128/99/1/1/00 Motion controller
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Schneider Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MAX-4/11/03/128/99/1/1/00
Product Type	motion controller
Product Origin	Germany
Shipping Port	Xiamen
Weight	2.5 KG

Brand :
Schneider

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

MAX-4/11/03/128/99/1/1/00 It is the Schneider ELAU PacDrive MAX-4 series integrated motion controller, which integrates PLC logic operation and servo drive control. It is an original German industrial control module that supports up to 99-axis servo linkage, has built-in 128KB program storage, and is equipped with SERCOS high-speed real-time bus. It can be matched with the full range of VDM and VCA servo drives and is widely applicable to multi-axis synchronous automation equipment such as high-speed packaging, printing, and pharmaceutical filling. The integrated design simplifies control cabinet wiring and combines logic control and high-precision motion calculation capabilities.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Core Features

✓ Integrated multi-axis motion control: Built-in 32-bit high-speed processor, a single module can manage up to 99 servo synchronizations, and supports 256 sets of parallel electronic cam curves, easily realizing complex processes such as flying shear, electronic gear, tracking synchronization, and tension closed loop.
✓ Standard IEC61131-3 programming system: It is compatible with mainstream programming methods such as ST, ladder diagram, and function block. The basic task cycle of PLC is as low as 250μs, and the logic and motion are synchronized without delay.
✓ Multi-bus compatible communication: Standard configuration includes SERCOS III servo bus, expandable with Ethernet, Profibus DP, CANopen, and RS485 interfaces, allowing connection to touch screens, third-party frequency converters, and upper-level monitoring systems.
✓ Integrated onboard I/O and diagnostic system: Features multiple digital/analog inputs and outputs, an 8-channel waveform acquisition oscilloscope, fault log storage, and supports remote diagnostics and debugging via web interface.

Technical Specifications

Brand	Schneider
Model / Part Number	MAX-4/11/03/128/99/1/1/00
Product Type	Motion controller
Processor	32-bit RISC high-speed floating-point processor
Program storage area	128KB program memory
Main power supply	DC24V control power supply
Est. Weight	2.5 KG

Frequently Asked Questions

Q: What servo bus does the MAX-4/11/03/128/99/1/1/00 use, and which servo drives can it be paired with?

A: The core servo bus is SERCOS III, which is perfectly compatible with the VDM01D, VDM01U, and VCA07/VCA09 series of ELAU servo drives. The entire system has extremely low multi-axis synchronization error

Q: What motion processes does the MAX-4/11/03/128/99/1/1/00 support, and what is its programming standard?

A: It follows the IEC61131-3 international PLC programming standard and supports high-speed and precision motion processes such as electronic cams, electronic gears, flying shear marking, dynamic tension control, and spindle synchronous cutting.

Q: What are the installation environment restrictions for MAX-4/11/03/128/99/1/1/00?

A: It is designed for vertical installation within a DIN rail cabinet, with an IP20 protection rating. It can only be placed inside an electrical control cabinet. The operating ambient temperature is 0~50℃, and the environment must be dry, free from condensation, dust, and moisture.
