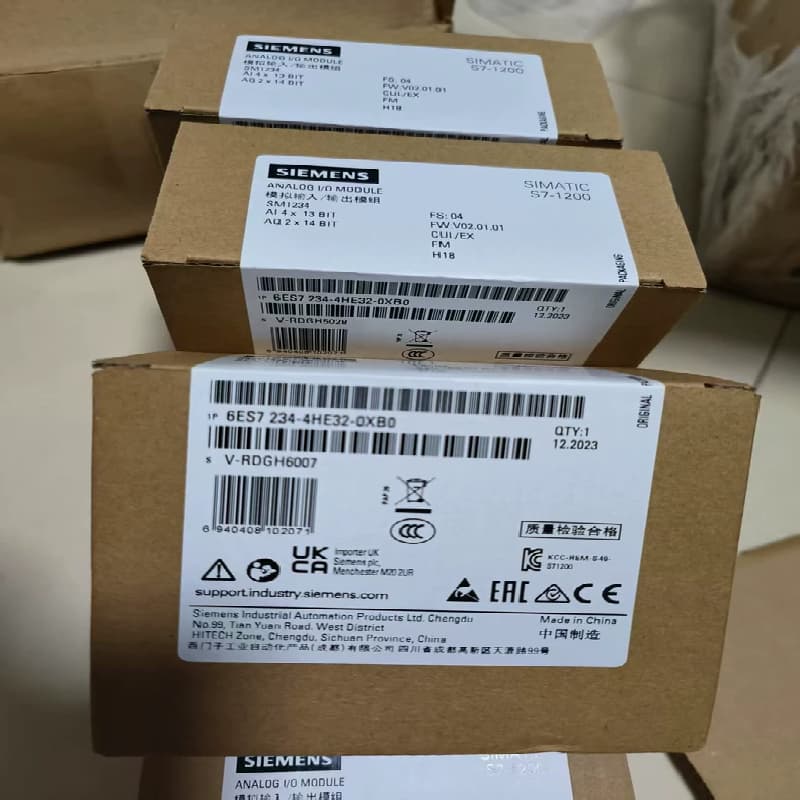

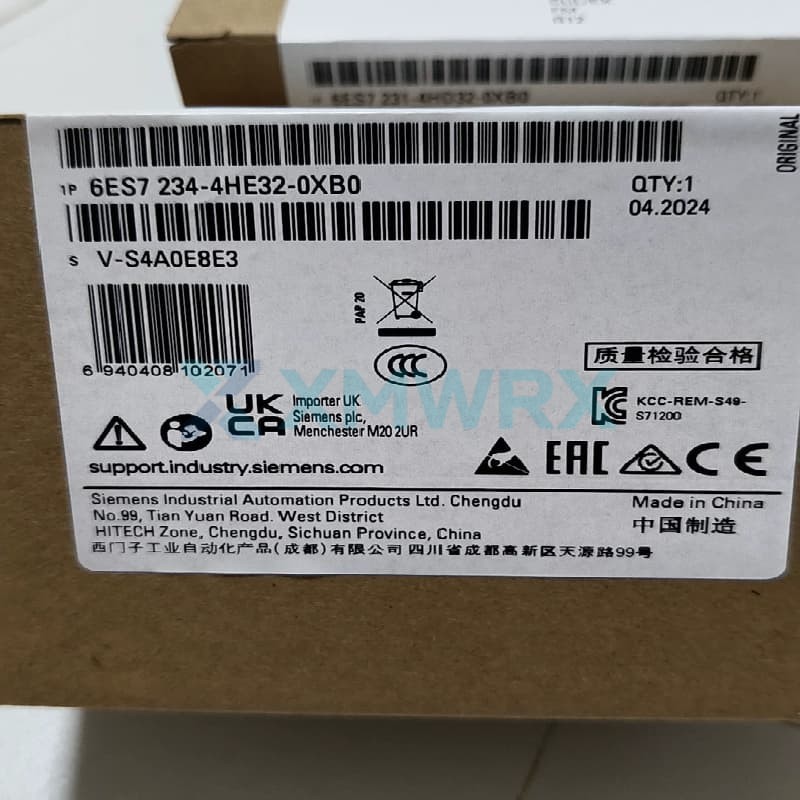

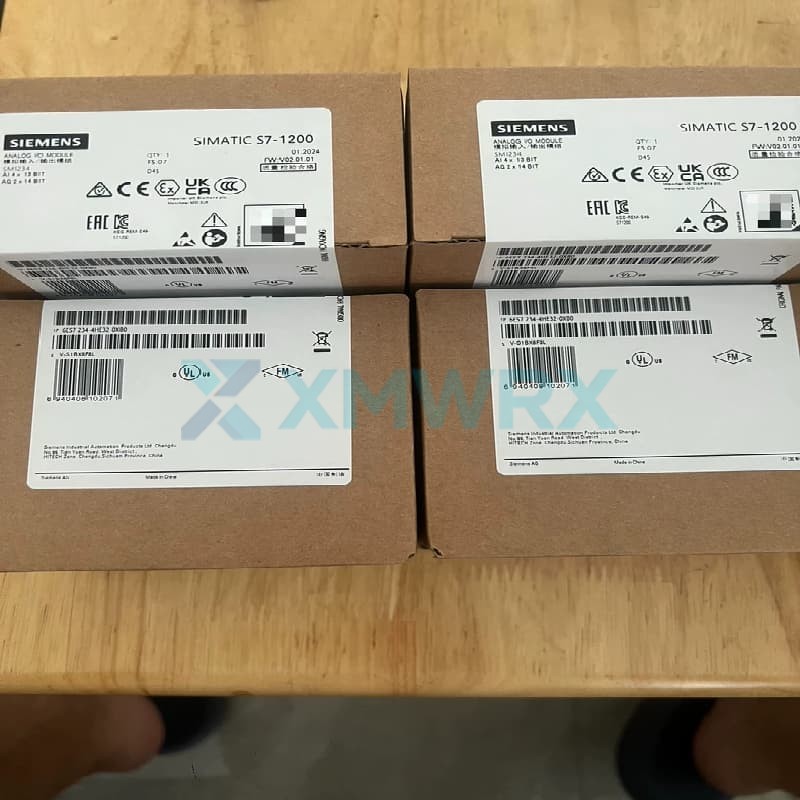

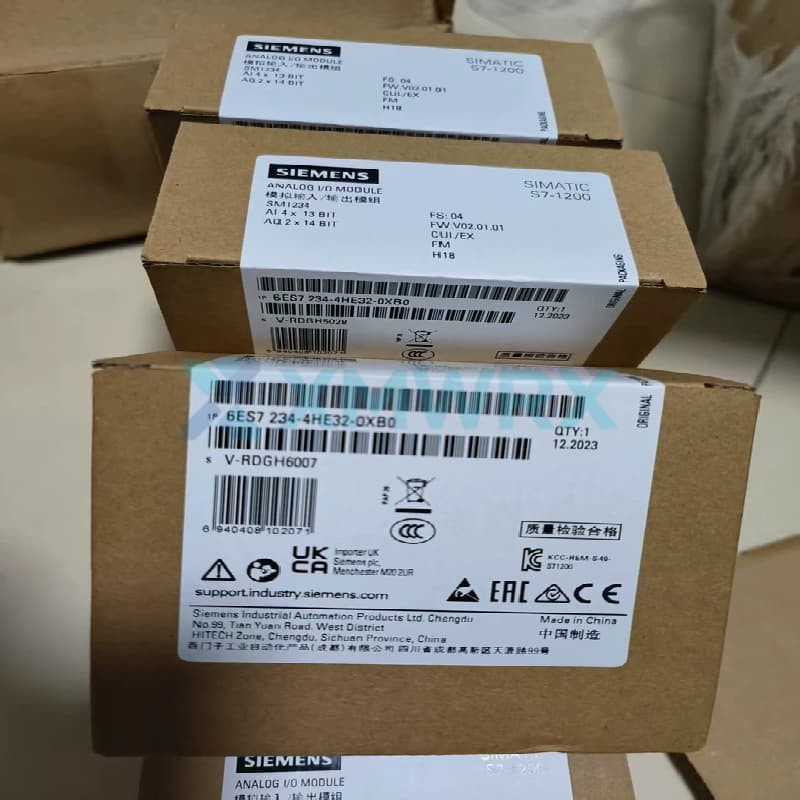

SIEMENS 6ES7234-4HE32-0XB0 SIMATIC S7-1200 series analog input/output signal modules

Name: SIEMENS 6ES7234-4HE32-0XB0 SIMATIC S7-1200 series analog input/output signal modules
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SIEMENS Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	6ES7234-4HE32-0XB0
Product Type	Analog input/output signal module
Product Origin	China
Shipping Port	Xiamen
Weight	0.22 kg

Brand :
Siemens

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 6ES7234-4HE32-0XB0 is an analog input/output signal module (SM 1234) from the Siemens SIMATIC S7-1200 series.

It features four analog inputs and two analog outputs, used to convert analog signals from sensors and other devices into digital signals that can be processed by the PLC, or to convert digital commands from the PLC into analog signals to control actuators. This module supports voltage (±10V) and current (0/4-20mA) signals, meeting the needs of various industrial automation scenarios. With an IP20 protection rating, it is suitable for installation in control cabinets and is an officially recognized Siemens product (PM300).

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Signal Conversion: Converts analog signals (such as temperature and pressure) into digital signals for PLC processing; simultaneously converts digital signals into analog signals (such as 0-10V, 4-20mA) to control field devices.
✓ High Precision and Stability: Voltage input resolution reaches 14 bits, current input resolution reaches 13 bits, and 40dB of power frequency interference suppression is provided to ensure signal stability.
✓ Fast Response: The maximum cycle time for all channels is 625µs, enabling rapid response to control demands.
✓ Diagnostics and Protection: Integrated diagnostic functions monitor faults such as open circuits, short circuits, and power supply voltage issues, and quickly display the status via LED indicators.

Technical Specifications

Brand	SIEMENS
Model / Part Number	6ES7234-4HE32-0XB0
Input Channels	4-channel analog input (differential), supporting ±10V, ±5V, ±2.5V, 0-20mA, 4-20mA
Output Channels	2-channel analog output, supporting -10V to +10V, 0-20mA, 4-20mA
Resolution	14-bit voltage input; 13-bit current input; 14-bit voltage output; 13-bit current output
Load Impedance	Minimum 1kΩ for voltage output; maximum 600Ω for current output
Protection Rating	IP20
Dimensions (H x W x D)	100 x 45 x 75 mm
Supply Voltage	24V DC
Power Consumption	Typical 2W

Frequently Asked Questions

Q: Where is this module typically used?

A: It is mainly used in scenarios requiring the acquisition or output of continuously changing physical quantities, such as temperature, pressure, and flow monitoring in industrial automation. It can also be used in building automation (such as HVAC systems) and process control industries.

Q: Can it be directly connected to a resistance temperature detector (RTD) or thermocouple?

A: No. It does not directly support the signal types of RTDs or thermocouples. To connect these sensors, a dedicated RTD/thermocouple input module is required.

Q: Which PLC systems is it compatible with?

A: It is designed specifically for Siemens SIMATIC S7-1200 series PLCs, connected via a backplane bus, and mounted on the right side of the CPU.
