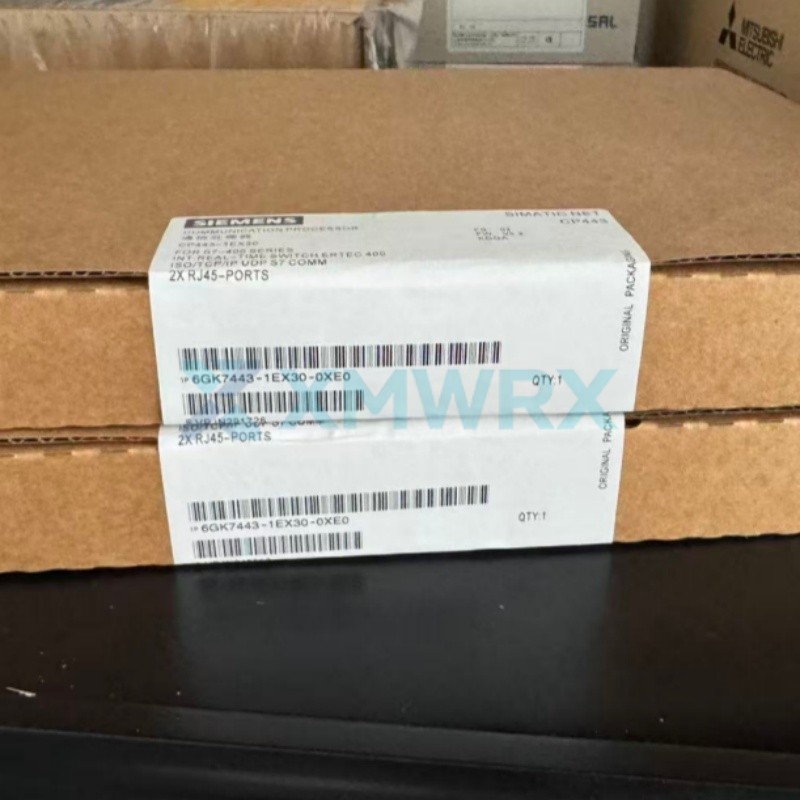

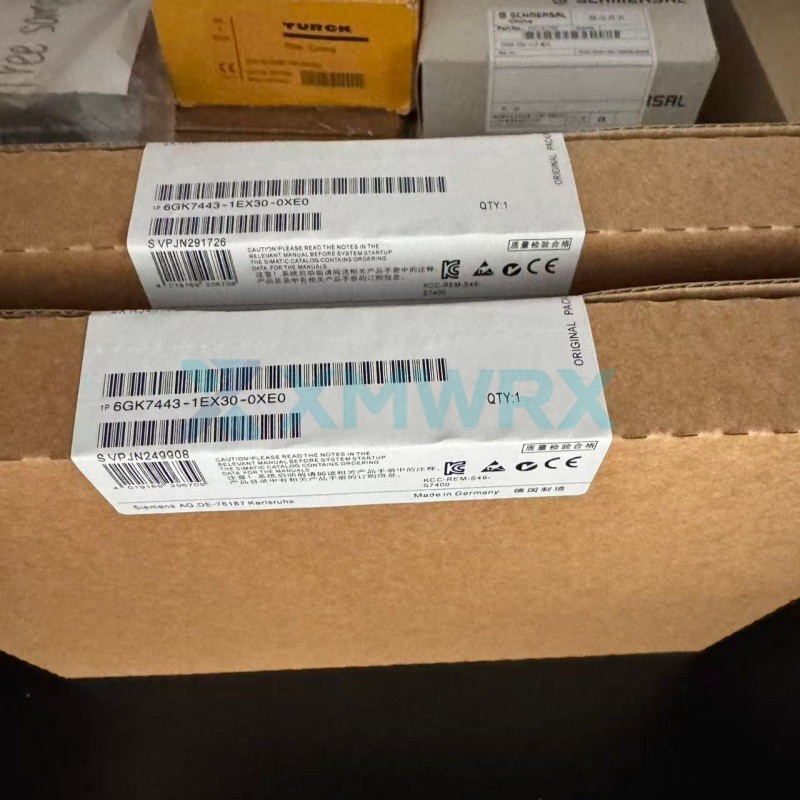

SIEMENS 6GK7443-1EX30-0XE0 Communication processor CP 443-1

Name: SIEMENS 6GK7443-1EX30-0XE0 Communication processor CP 443-1
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SIEMENS Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	6GK7443-1EX30-0XE0
Product Type	CP 443-1
Product Origin	Germany
Shipping Port	Xiamen
Weight	0.833kg

Brand :
Siemens

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 6GK7443-1EX30-0XE0 is a high-performance communication processor (CP 443-1) in the Siemens SIMATIC S7-400 series.

Its primary function is to add robust industrial Ethernet communication capabilities to S7-400 PLC systems, enabling them to act as nodes in the network and exchange data at high speed with host computers, other PLCs, HMIs, or distributed I/O devices. This module is renowned for its dual-port design, high security, and broad protocol support, making it a core component for building highly available automated networks.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Core Features

✓ Dual-port design for network redundancy: The module is equipped with two independent Ethernet ports, which is not just a simple interface replication, but also supports the construction of highly available network topologies.
✓ Strong network security protection: In today's increasingly important industrial networks, this module provides enterprise-level security protection mechanisms.
✓ Wide protocol compatibility: It supports multiple mainstream industrial Ethernet protocols and can be easily integrated into complex automation systems.
✓ Easy configuration and maintenance: Hardware configuration and parameter settings can be performed via Siemens STEP 7 or TIA Portal software, making operation simple and intuitive.

Technical Specifications

Brand	SIEMENS
Model / Part Number	6GK7443-1EX30-0XE0
Product family	SIMATIC S7-400
Product Type	CP 443-1
Interface Type	2 RJ45 ports
Transmission Rate	10/100 Mbit/s
Supported Protocols	PROFINET IO, TCP/IP, ISO-on-TCP, UDP, S7 communication
Security Features	Integrated firewall, VPN support
Operating Environment	0°C to 60°C

Frequently Asked Questions

Q: Which redundancy protocols does this communication processor support?

A: This communication processor primarily supports the Media Redundancy Protocol (MRP). Based on its dual-port design, it enables the construction of highly available network topologies in industrial Ethernet environments.

Q: What is the MRP switching time for this module?

A: According to Siemens' official technical data, the automatic switching time between primary and backup ports for this communication processor is less than 50ms when configured in redundancy mode. However, in actual PROFINET ring network applications (such as networking with an S7-1500 PLC and SCALANCE switch), Wireshark packet capture analysis shows that the measured MRP redundancy recovery time is usually even shorter, approximately 29ms.

Q: What's the difference between it and a regular Ethernet module?

A: In simple terms, the CP 443-1 is an "intelligent communication commander" designed for industrial control cores (PLCs), while ordinary modules are usually just "transporters" responsible for data transmission.
