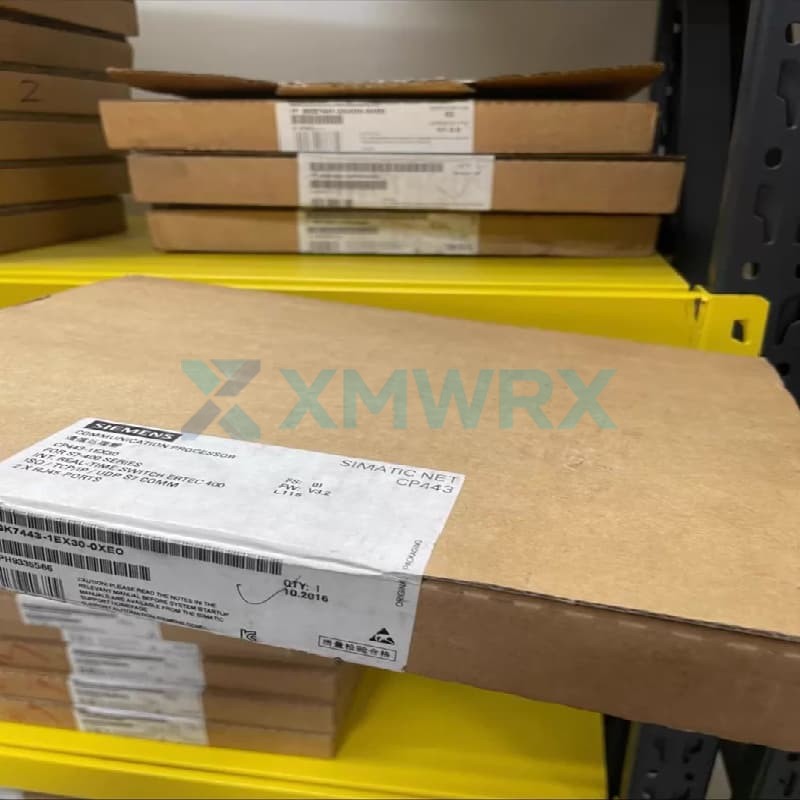

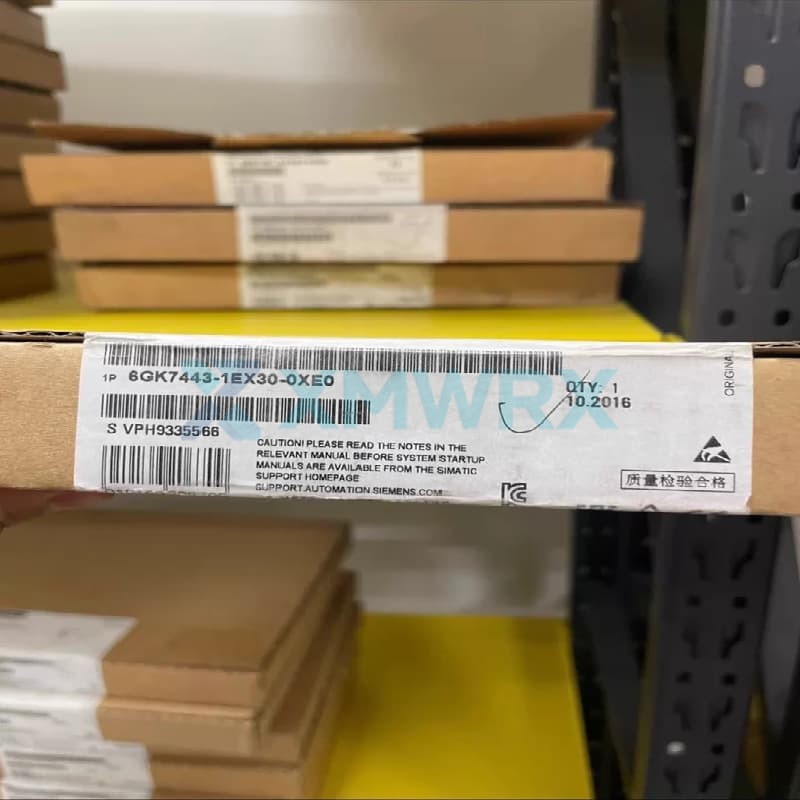

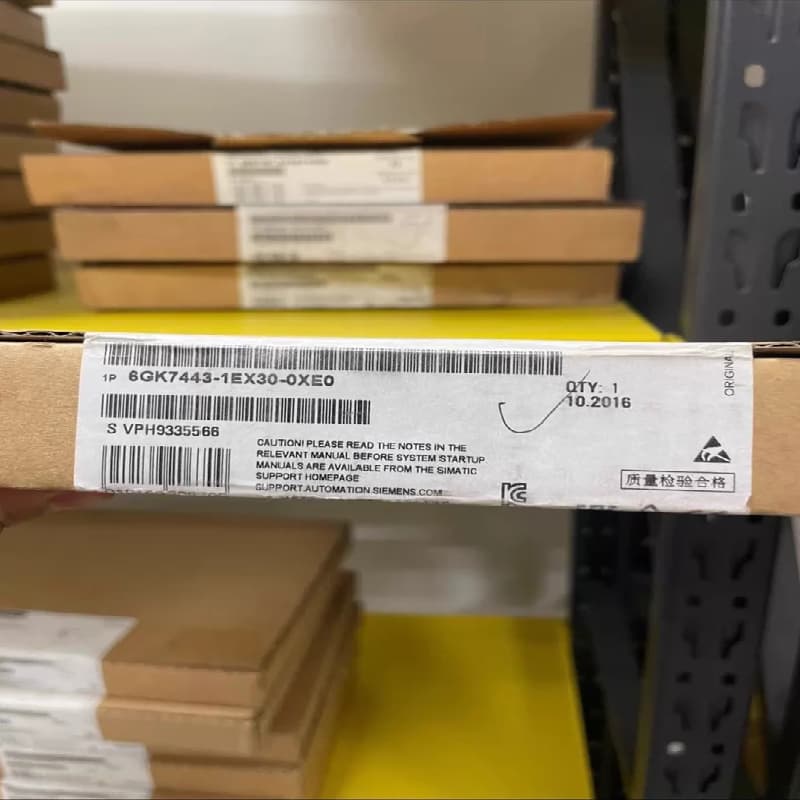

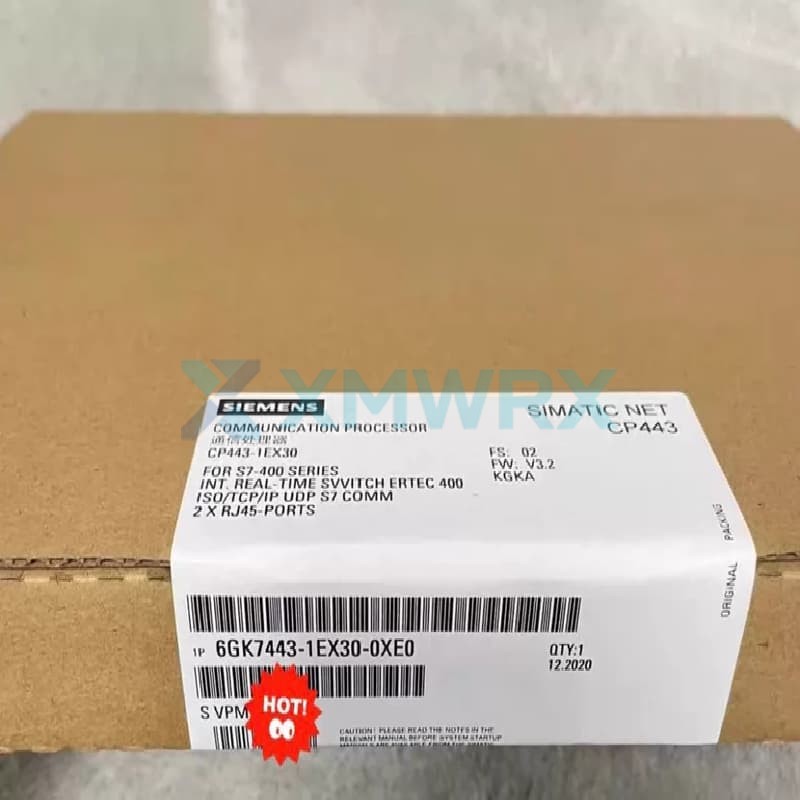

SIEMENS 6GK7443-1EX30-0XE0 SIMATIC NET series communication processors

Name: SIEMENS 6GK7443-1EX30-0XE0 SIMATIC NET series communication processors
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SIEMENS Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	6GK7443-1EX30-0XE0
Product Type	Communication processor
Product Origin	Germany
Shipping Port	Xiamen
Weight	0.70 kg

Brand :
Siemens

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 6GK7443-1EX30-0XE0 is a communication processor (model CP 443-1) from Siemens' SIMATIC NET series, specifically designed for S7-400 series PLCs to connect to industrial Ethernet.

It features two 10/100 Mbit/s RJ45 interfaces and built-in industrial Ethernet switching functionality, supporting connections of the S7-400 to PROFINET IO controllers or as intelligent devices. This module supports multiple communication protocols and is a key component in building factory automation networks.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ PROFINET IO Controller: Can function as a PROFINET IO controller, connecting and managing up to 128 PROFINET IO devices for high-speed data exchange at the field level.
✓ S7 and Open Communication: Supports S7 communication (standard communication with Siemens devices) and Open communication (ISO, TCP, and UDP protocols via SEND/RECEIVE blocks), supporting up to 64 connections.
✓ S7 Routing Function: Integrates S7 routing functionality, allowing programming devices (PG/PC) to access devices in other subnets (such as PROFIBUS) through this module, simplifying remote diagnostics and programming.
✓ Advanced Networking and Management Functions: Supports MRP (Media Redundancy Protocol) for building highly reliable ring networks and provides IP access control lists, time synchronization (NTP), and extended web diagnostics.

Technical Specifications

Brand	SIEMENS
Model / Part Number	6GK7443-1EX30-0XE0
Transmission Rate	10/100 Mbit/s
Number and Type of Interfaces	2 x RJ45 (Industrial Ethernet Switch)
Power Supply	Powered via S7-400 backplane bus (DC 5V)
Current Consumption	Typical 1.4 A
Power Dissipation	Typical 7.25 W
Dimensions (W x H x D)	25 mm x 290 mm x 210 mm
Protection Rating	IP20
PROFINET IO Devices	Max 128
S7 Connections	Max 128
Open Communication Connections	Max 64
Operating Temperature	0°C to 60°C

Frequently Asked Questions

Q: In which application scenarios can this module be used?

A: It is mainly used in scenarios where an S7-400 PLC needs to be connected to an upper-level industrial Ethernet or PROFINET network, such as serving as a communication hub between the control layer and field devices (such as remote I/O, drives, HMIs) in a factory automation production line. In practical cases, engineers have used it to solve the problem of accessing lower-level drive devices through the S7-400.

Q: What should be noted when using this module as a PROFINET IO controller?

A: First, each S7-400 CPU can be configured with a maximum of 14 CP modules, but as a PN IO controller, a maximum of 4 are allowed. Second, it has requirements for the CPU firmware version; it needs to be used with a CPU with firmware V4.1 or higher.

Q: Can the old model CP 443-1 be directly replaced by this new model?

A: Yes. The 6GK7443-1EX30-0XE0 is designed as an upgrade replacement for the older CP 443-1 (such as the 6GK7443-1EX20-0XE0), but note that the firmware version of the upgraded CPU must be V4.1 or higher.
