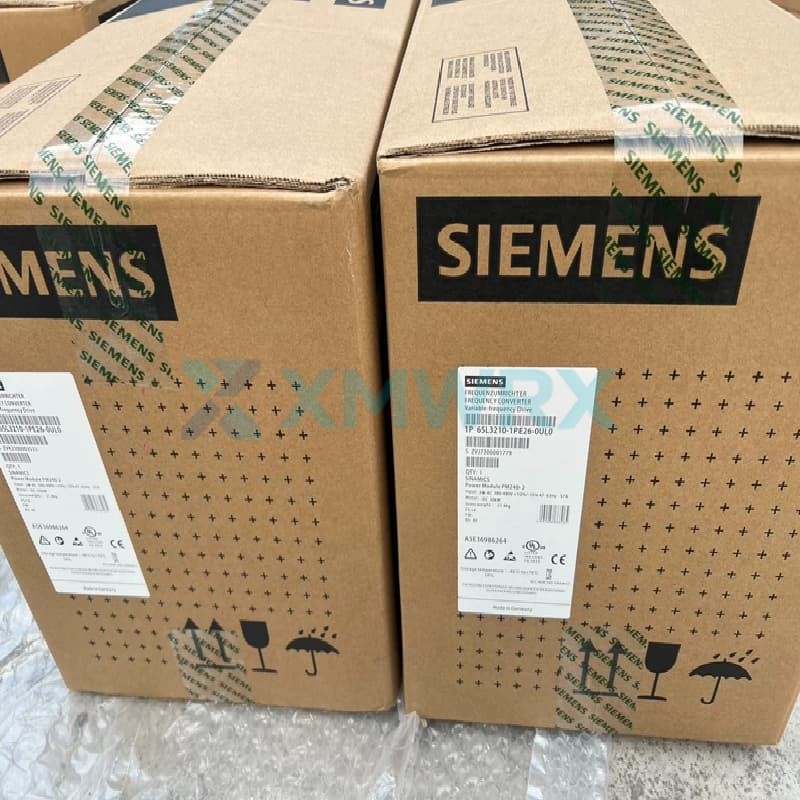

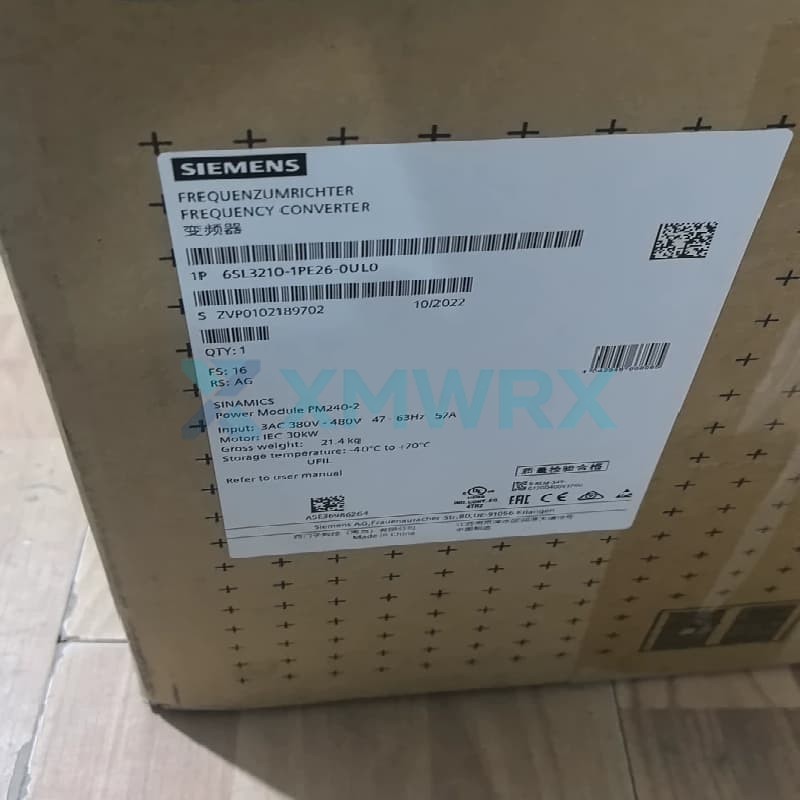

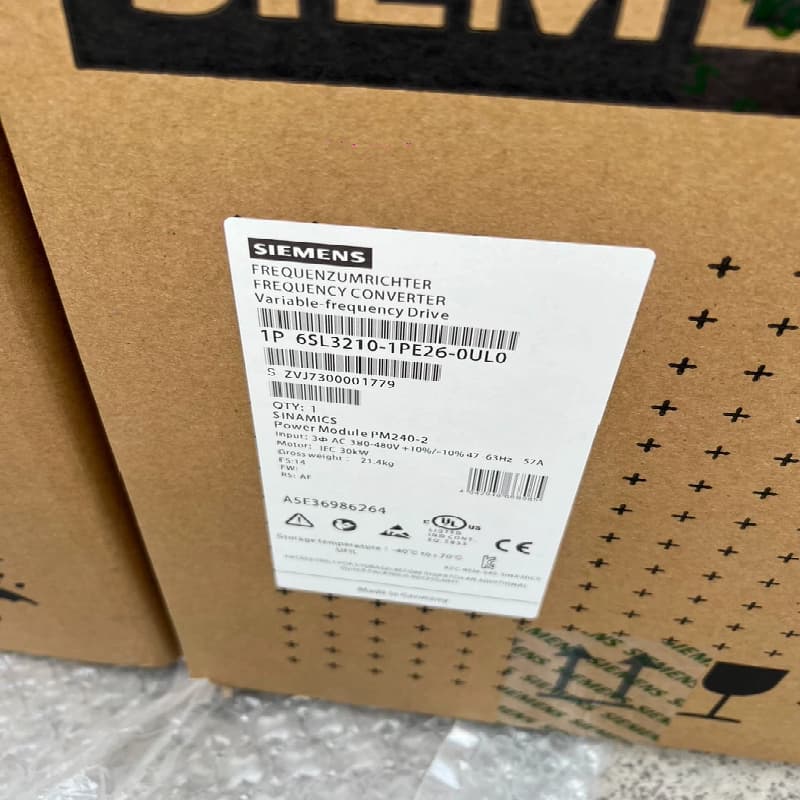

SIEMENS 6SL3210-1PE26-0UL0 SINAMICS G120 Series Power Module (PM240-2)

Name: SIEMENS 6SL3210-1PE26-0UL0 SINAMICS G120 Series Power Module (PM240-2)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SIEMENS Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	6SL3210-1PE26-0UL0
Product Type	SINAMICS G120 Power Module PM240-2
Product Origin	Germany
Shipping Port	Xiamen
Weight	26.81 kg

Brand :
Siemens

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 6SL3210-1PE26-0UL0 is a power module (PM240-2) from the Siemens SINAMICS G120 series.

It does not include a control unit and is part of a modular frequency converter system, requiring combination with a corresponding control unit (such as CU240E-2) to form a complete frequency converter. This module does not have a built-in input filter but integrates a braking chopper, enabling rapid braking via an external braking resistor.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-performance motor control: Powers three-phase AC motors, supporting multiple modes such as vector control and V/f control for precise speed regulation.
✓ Integrated braking capability: Built-in brake chopper supports applications requiring rapid braking or potential energy loads.
✓ High overload capacity: Offers both heavy overload (HO) and light overload (LO) modes. In HO mode, the rated power is 22kW, capable of withstanding 200% overload for 3 seconds; in LO mode, the rated power reaches up to 30kW.
✓ Modular design: As a power unit in the G120 series, it can be flexibly combined with various control units to adapt to application needs ranging from simple to complex.

Technical Specifications

Brand	SIEMENS
Model / Part Number	6SL3210-1PE26-0UL0
Input Voltage	3AC 380-480V +10/-10%
Rated Power (Heavy Overload)	22 kW
Rated Power (Light Overload)	30 kW
Overload Capacity (Heavy Overload)	200% for 3 seconds
Protection Rating	IP20
Dimensions (H x W x D)	472 mm x 200 mm x 237 mm

Frequently Asked Questions

Q: What scenarios is this module used in?

A: It is widely used in applications requiring speed control of medium to high power motors, such as water pumps, fans, conveyor belts, and various general-purpose machinery. Its filterless design is advantageous in cost-sensitive applications and those with less stringent harmonic requirements.

Q: Can it be used directly?

A: No. It is only a power unit and must be combined with a SINAMICS G120 series control unit (CU) to form a complete inverter system.

Q: Which product series does this model belong to?

A: It belongs to the SINAMICS G120 series, specifically the PM240-2 power module. This module cannot be used with the S120 series (although it can be used in combination with specific adapters, this is a cross-series application).
