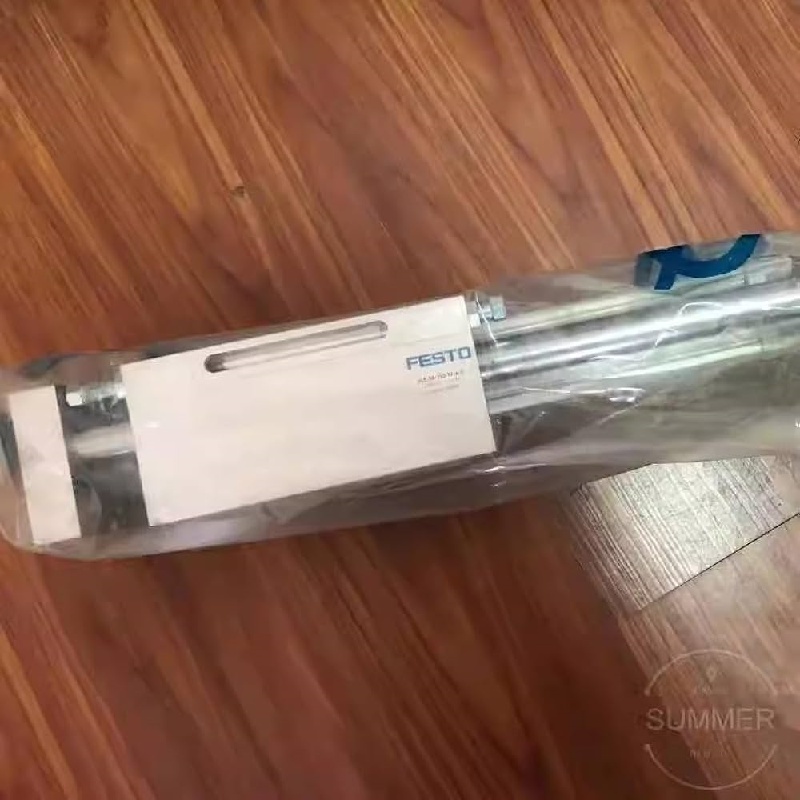

The Festo SLE-32-160-KF-A-G is a pneumatic linear drive unit with a bore of 32mm and a stroke of 160mm, product number 150093.

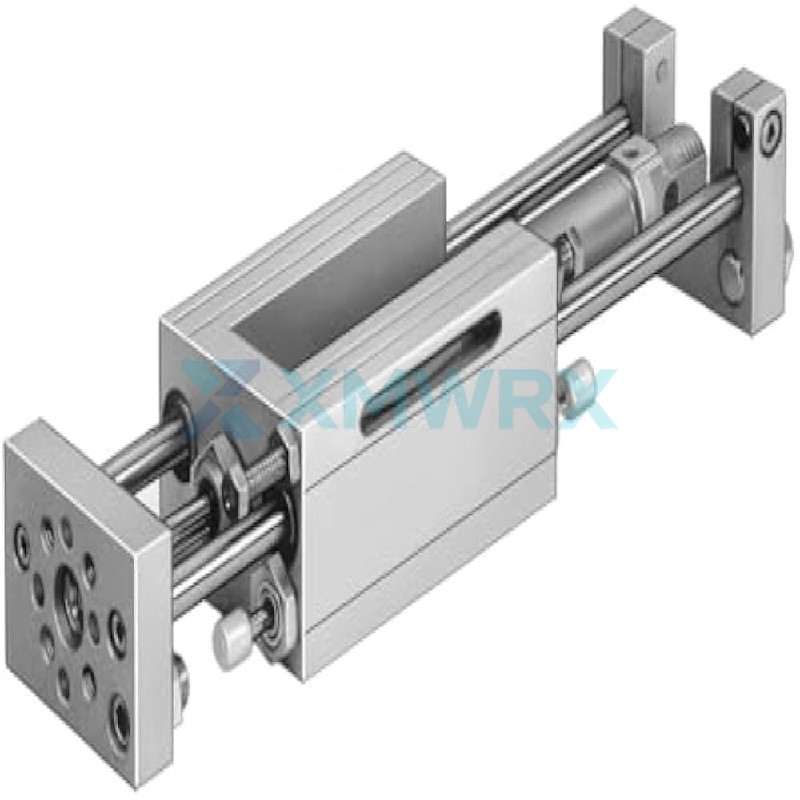

This product is a Festo SLE series linear drive unit, combining a guide unit and a standard cylinder. The cylinder drives a flange plate to achieve precise linear motion. It uses recirculating ball bearing guides (KF), providing high rigidity and high-precision guiding performance.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ Precise Guidance and Motion: Integrated recirculating ball bearing guide rail (KF) provides high rigidity and high precision linear motion support.
- ✓ Double-Acting Drive: Utilizing the double-acting principle of a cylinder, it achieves reciprocating thrust and pull output.
- ✓ Position Detection Capability: The "A" in the model number indicates a reserved sensor mounting slot for easy installation of a proximity switch for position sensing.
- ✓ Corrosion Resistance and Durability: The piston rod is made of high-alloy steel, and the housing is die-cast aluminum, providing excellent corrosion resistance and durability.
Technical Specifications
| Brand |
FESTO
|
| Model / Part Number |
SLE-32-160-KF-A-G |
| Order No. |
150093 |
| Cylinder diameter |
32 mm |
| stroke |
160 mm |
| Operating pressure range |
1.5 - 12 bar |
| Seal material |
NBR |
| Ambient temperature range |
-20°C to +80°C |
| Air interface specification |
G1/8 |
Frequently Asked Questions
Q: What types of equipment is the SLE-32-160-KF-A-G suitable for?
A: This unit has a long stroke and high thrust, making it suitable for material handling, automated assembly lines, packaging machinery, and electronic manufacturing equipment requiring long-stroke reciprocating motion or transfer.
Q: How are the speed and accuracy performance of this drive unit?
A: With circulating ball bearing guides and standard cylinder control, its movement is highly smooth. Speed can usually be controlled over a wide range by adjusting the intake valve, and repeatability generally meets industrial requirements at the 0.1mm level.
Q: What are the standard requirements for the air hose interface and mounting accessories of the SLE-32-160-KF-A-G?
A: Its air interface is a G1/8 thread. If stand mounting or trunnion mounting is required, it usually needs to be ordered separately according to the standard accessory list of the SLE-32 series; these mounting accessories are generally not included in the standard parts.
