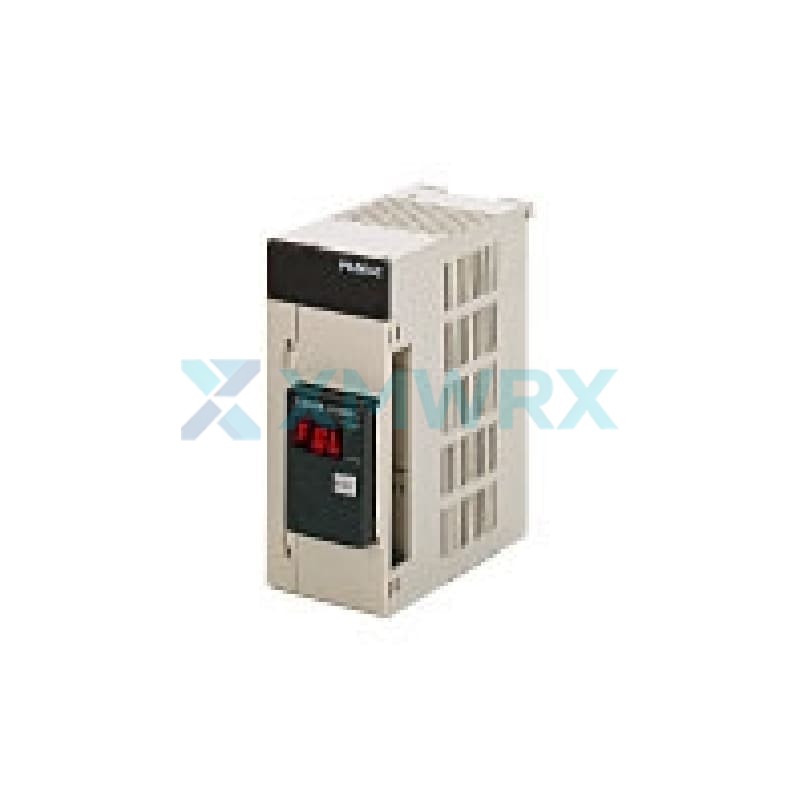

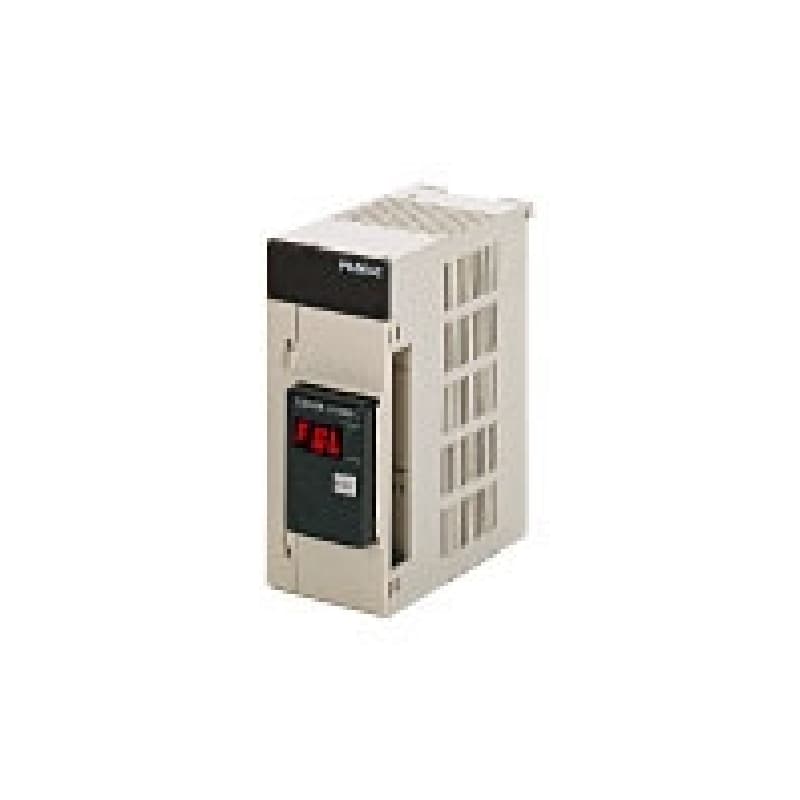

This is a power supply module specifically designed for Omron C200H/CS1 series PLC systems. Mounted on the backplane, it powers the entire PLC system.
The module supports a wide input voltage range of 100-240V AC, with outputs of 5V DC 4.6A and 26V DC 0.625A, for a total output power of 30W. It uses screw terminal wiring, has an IP30 protection rating, and has passed multiple international safety certifications including CE, UL, and CSA. This product is discontinued, but it is still available on the secondhand market.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ Power Supply for PLC Systems: Serves as the backplane power module for the C200H/CS1 series PLCs, providing stable DC power to the CPU unit and I/O modules.
- ✓ Wide Voltage Input Range: Supports an ultra-wide voltage input range of 85-264V AC, adapting to industrial power grid environments in various regions worldwide.
- ✓ Dual DC Outputs: Provides two outputs: 5V DC (4.6A) + 26V DC (0.625A), with a total power of 30W, meeting the system's power supply requirements.
- ✓ Comprehensive Protection Functions: Built-in surge current suppression, insulation protection, and anti-interference circuits ensure stable operation of the PLC in harsh industrial environments.
Technical Specifications
| Brand |
OMRON
|
| Model / Part Number |
C200HW-PA204 |
| Power Supply Voltage |
100-120V AC / 200-240V AC (Auto Adaptive) |
| Operating Voltage Range |
85-264V AC |
| Output Capacity |
4.6A / DC26V: 0.625A |
| Output Power |
30W |
| Maximum Power Consumption |
120VA |
| Terminal Type |
Screw Terminal |
| Protection Rating |
IP30
|
| Operating Temperature |
0°C to 55°C |
Frequently Asked Questions
Q: What equipment is this power module used in?
A: It is specifically designed for Omron C200H, C200HX/HG/HE, and CS1 series PLC systems. Installed on the PLC backplane, it provides power to the CPU, I/O modules, and high-function modules. It is suitable for various industrial automation control systems, such as production line control and equipment automation.
Q: How does the system respond after a power outage?
A: According to Omron's official technical specifications, if the power outage time is less than 10 milliseconds, the CPU will continue to run unaffected; if the power outage time exceeds 25 milliseconds, the system will stop running and shut down its output; if the power outage is between 10 and 25 milliseconds, the CPU response is unpredictable. The power outage detection time can be extended through PLC settings (DM 6605).
Q: What are the differences between this model and other similar models (PA204R/PA204S/PA204C)?
A: The main difference lies in the additional functions:
C200HW-PA204: Basic model, no additional functions
C200HW-PA204R: With run output function, it can monitor the PLC's operating status.
C200HW-PA204S: With auxiliary DC24V 0.8A output, it can power external devices such as sensors.
C200HW-PA204C: With replacement notification function, it can prompt when the power module needs to be replaced.
