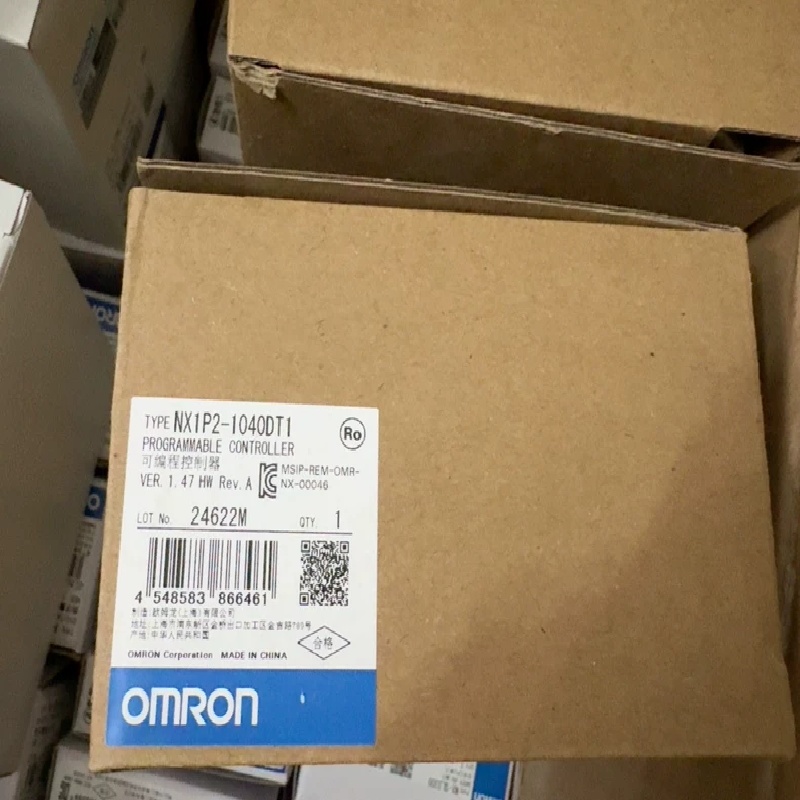

OMRON NX1P2-1040DT1 Sysmac NX1P2 Machine automation controller CPU unit

Name: OMRON NX1P2-1040DT1 Sysmac NX1P2 Machine automation controller CPU unit
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	NX1P2-1040DT1
Product Type	Machine automation controller CPU unit
Product Origin	China
Shipping Port	Xiamen
Weight	1.64 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The NX1P2-1040DT1 is a multi-functional integrated CPU unit in OMRON's Sysmac NX1P2 series, belonging to the entry-level yet powerful machine automation controller category.

This model integrates 24 digital inputs and 16 PNP transistor outputs, totaling 40 internal I/O points, and is equipped with 1.5 MB of program memory and 2 MB of variable memory. It supports EtherCAT motion control and EtherNet/IP network communication, making it suitable for small automation equipment requiring compact design and high-performance motion control.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Integrated Motion Control: Supports up to 6 motion control axes (2 servo axes + 4 PTP axes), enabling high-precision motion control as an EtherCAT master.
✓ Built-in Rich I/O: The main unit integrates 24 digital inputs and 16 PNP transistor outputs, meeting basic control requirements without the need for additional I/O modules.
✓ Dual-Network Communication Protocol: Standard configuration includes both EtherNet/IP and EtherCAT communication ports. EtherNet/IP is used for interaction with HMI/host systems, while EtherCAT is used for deterministic motion control.
✓ Unified Software Platform: Programmed using Sysmac Studio software, supporting ladder diagrams, structured text, and function blocks, enabling one-stop development for logic, motion, and safety.

Technical Specifications

Brand	OMRON
Model / Part Number	NX1P2-1040DT1
Input points	24 (digital inputs)
Output points	16 (PNP transistor outputs)
Program memory	1.5 MB
Variable memory	32 KB (power-off retention) / 2 MB (non-power-off retention)
Motion control axes	Up to 6 axes (2 servo axes + 4 PTP axes)
Communication protocols	EtherCAT master, EtherNet/IP, EtherNet TCP/IP
Power supply voltage	24 VDC (20.4 ~ 28.8 V)
Expandable modules	Up to 8 local I/O units
Mounting method	DIN rail mounting

Frequently Asked Questions

Q: What scenarios is the NX1P2-1040DT1 suitable for?

A: It is suitable for small automated equipment requiring compact motion control, such as pick-and-place machines, packaging machinery, and electronic assembly equipment. Its built-in 40 I/O points reduce the need for external modules, lowering cabinet size and cost.

Q: How is its motion control capability?

A: It supports up to 6 motion axes (including 2 full-function servo axes), with EtherCAT cycle times as short as 2ms, enabling precise position, speed, and torque control, meeting the motion control needs of most small devices.

Q: What modules can the NX1P2-1040DT1 be expanded with?

A: It can be expanded with various I/O units from the Omron NX series, including digital I/O, analog I/O, temperature input, IO-Link master station, etc., supporting up to 8 local expansion units, for a total of 296 I/O points.
