OMRON E6B2-CWZ6C 360P/R 500P/R 600P/R 1000P/R 2000P/R Incremental rotary encoder

Name: OMRON E6B2-CWZ6C 360P/R 500P/R 600P/R 1000P/R 2000P/R Incremental rotary encoder
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	E6B2-CWZ6C
Product Type	Incremental rotary encoder
Product Origin	China
Shipping Port	Xiamen
Weight	0.22 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

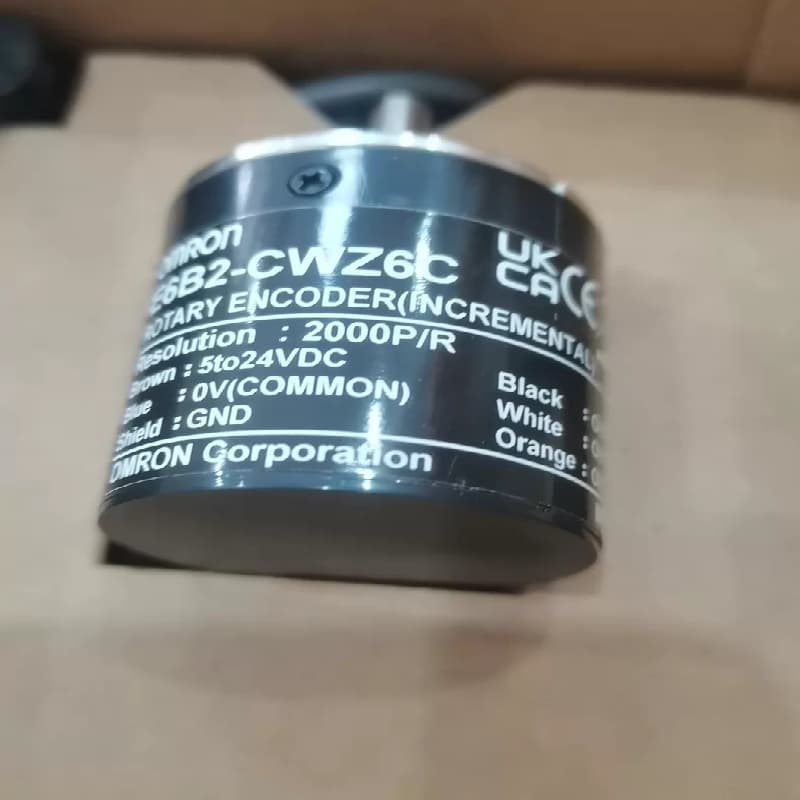

The E6B2-CWZ6C is an incremental rotary encoder manufactured by OMRON with an outer diameter of φ40mm.

It converts the mechanical displacement of a rotating shaft into digital pulse signals for measuring angle, position, and speed. This model uses an NPN open-collector output and features reverse connection protection and load short-circuit protection, ensuring high reliability.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Rotation Detection: Determines the direction and angle of rotation using the 90° phase difference signal between phases A and B.
✓ Position Origin Positioning: Outputs one Z-phase pulse per revolution for reference point reset.
✓ Speed Measurement: Maximum response frequency 100kHz, maximum speed 6,000 r/min.
✓ Signal Compatibility: Wide voltage DC5-24V power supply; NPN output allows direct connection to PLCs and other devices.

Technical Specifications

Brand	OMRON
Model / Part Number	E6B2-CWZ6C
Outer diameter	φ40mm
Power supply voltage	DC5V-5% ~ 24V+15% (ripple below 5%)
Current consumption	below 80mA
Output type	NPN open collector output
Output Capacity	Applied voltage DC 30V or less, load current 35mA or less, residual voltage 0.4V or less
Output Phases	Phase A, Phase B, Phase Z
Resolution	10, 20, 30...720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000 P/R (optional)
Maximum Response Frequency	100kHz

Frequently Asked Questions

Q: What equipment can the E6B2-CWZ6C be used in?

A: Widely used in industrial automation scenarios requiring precise position and speed feedback, such as motor feedback systems (servo/stepper motor closed-loop control), CNC machine tools, packaging machinery, printing equipment, conveyor systems, robot joint angle detection, and conveyor belt speed monitoring.

Q: What should I do if I encounter interference problems when using the encoder and frequency converter together?

A: We recommend the following measures: ① Separate the encoder signal line from the power cable; ② Use shielded cables and reliably ground the shielding layer (note that single-point grounding should be used to avoid ground loops); ③ Reduce the frequency converter's carrier frequency; ④ If necessary, install filters and reactors at the frequency converter's input/output terminals.

Q: How do I wire the E6B2-CWZ6C to a PLC (such as the CJ1W-CT021 high-speed counting unit)?

A: Wiring method is as follows:

Brown wire → Positive power supply (DC24V)

Blue wire → Negative power supply (GND)

Black wire (Phase A) → Terminal A8

White wire (Phase B) → Terminal A10

Orange wire (Phase Z) → Terminal A12

Terminals B9, B11, and B13 → Connect to positive power supply
