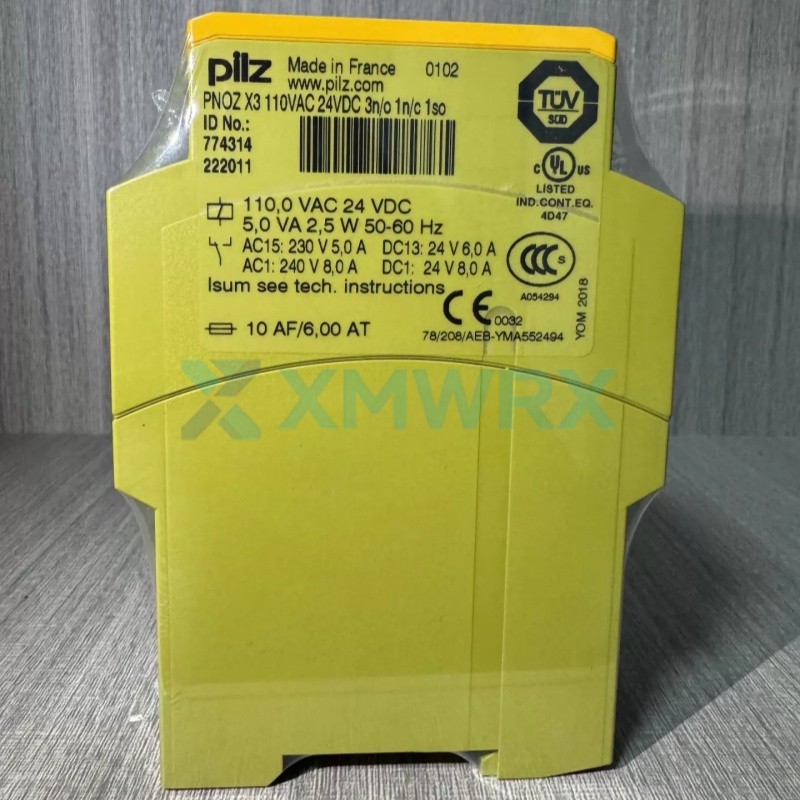

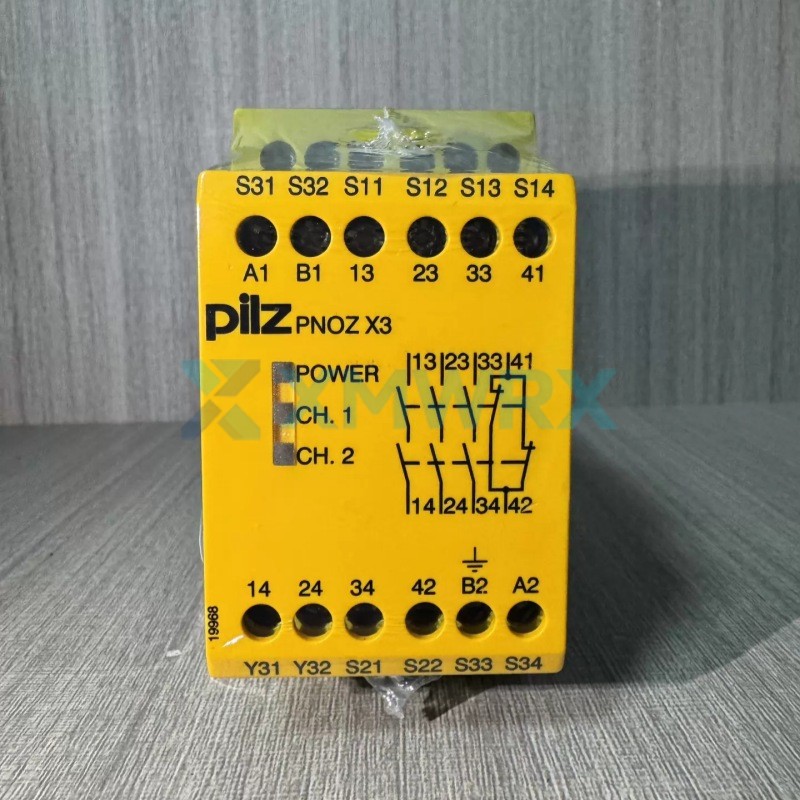

Pilz 774314 PNOZ X3 110VAC 24VDC 3n/o 1n/c 1so Safety relay (standalone)

Name: Pilz 774314 PNOZ X3 110VAC 24VDC 3n/o 1n/c 1so Safety relay (standalone)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Pilz Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	PNOZ X3 110VAC 24VDC 3n/o 1n/c 1so
Product Type	Safety relay
Product Origin	Germany
Shipping Port	Xiamen
Weight	385g

Brand :
Pilz

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The PILZ 774314 (PNOZ X3) is a multi-functional stand-alone safety relay primarily used for monitoring safety functions (such as emergency stop buttons and safety doors) in industrial environments.

Designed for harsh industrial environments, it is compatible with a wide voltage range, provides reliable safety contact outputs, and is widely used in various automated machinery control systems.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Safety Contact Monitoring: Provides normally open (n/o) and normally closed (n/c) safety contacts to immediately disconnect the hazardous circuit when the emergency stop is pressed or the safety door is opened.
✓ Automatic/Manual Reset: Supports monitored start (manual reset) or automatic reset functions to adapt to different production line safety logics.
✓ Dual-Channel Monitoring: Capable of detecting grounding short circuits and open circuits in the input circuit, ensuring the integrity of the safety circuit itself.
✓ Self-Diagnostic Function: Automatically detects potential internal hardware faults during operation and provides timely alarms to prevent safety function failure.

Technical Specifications

Brand	Pilz
Model / Part Number	PNOZ X3 110VAC 24VDC 3n/o 1n/c 1so
Material Number (MNR)	774314
Product Type	Safety relay
GTIN	4046548011654
Input Configuration	1-channel or 2-channel wiring, with short-circuit detection between contacts
Operating Temperature	-20°C to +55°C
Installation Method	DIN rail mounting
Certification Standards	Compliant with international standards such as CCC, TÜV, and cULus

Frequently Asked Questions

Q: In which specific industrial equipment is it used?

A: Model 774314 (PNOZ X3), as a safety relay, primarily functions to monitor safety signals from emergency stop devices and safety doors. Based on this characteristic, it is widely used in various industrial scenarios requiring the protection of personnel and equipment safety.

Q: What's the difference between it and a regular relay?

A: The 774314, as a safety relay, differs fundamentally from ordinary relays in design philosophy, internal structure, and application scenarios. Ordinary relays are mainly used for control and signal transmission in conventional circuits, while safety relays are specifically designed as a "last line of defense" to ensure the safety of personnel and equipment.

Q: What is the specific response time of the 774314?

A: Due to differences in model, power supply voltage (e.g., the 774314 supports 110VAC/24VDC), and wiring methods, the specific response time (including action time and release time) may vary slightly. If you require precise values for system safety calculations, we recommend that you:

1. Consult the official product datasheet for that model, which will clearly state the "Response Time" parameter.

2. Contact Pilz official technical support or the equipment supplier directly to obtain the most accurate data.
