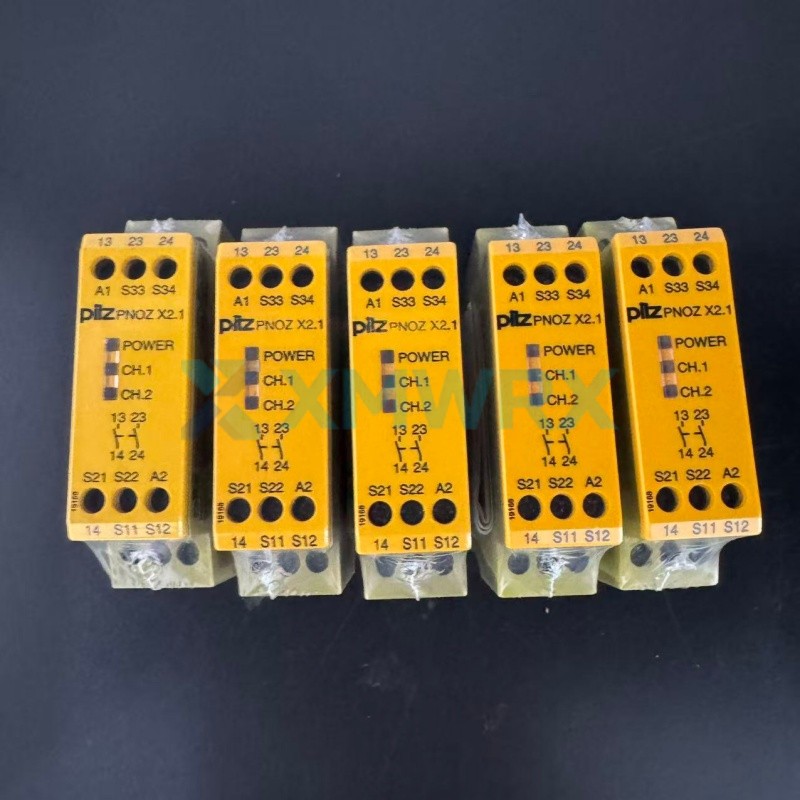

Pilz 774306 PNOZ X2.1 24VAC/DC 2n/o PNOZ series stand-alone safety relays

Name: Pilz 774306 PNOZ X2.1 24VAC/DC 2n/o PNOZ series stand-alone safety relays
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Pilz Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	PNOZ X2.1 24VAC/DC 2n/o
Product Type	Safety relay
Product Origin	Germany
Shipping Port	Xiamen
Weight	200g

Brand :
Pilz

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 774306 (Product Model: PNOZ X2.1 24VAC/DC 2n/o) is a classic stand-alone safety relay from the PILZ PNOZ series by PILZ, Germany.

Designed specifically for basic safety circuits in industrial equipment, it is ideal for monitoring emergency stop buttons, safety doors, and limit switches. With its compact design, high safety rating, and wide voltage compatibility, it has become a core safety component in fields such as machinery manufacturing and automated production lines.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Dual-channel detection module: As the core safety control unit, it monitors two safety input signals in real time. If either channel disconnects, the output is immediately cut off to ensure safety.
✓ Forced-guided contact assembly: Utilizing a patented forced-guided structure, it ensures reliable disconnection even if contacts fuse, physically eliminating potential safety hazards.
✓ Short-circuit detection unit: Built-in cross-contact short-circuit detection circuit monitors contact status in real time and immediately triggers protection upon the occurrence of a short-circuit fault.
✓ Reset control mode: Supports switching between automatic and manual reset modes. Manual reset requires manual confirmation, further enhancing operational safety.
✓ Installation and connection: Adapts to industry-standard 35mm DIN rails, supporting installation at any angle; uses screw-type fixing terminals for secure wiring and stable contact.

Technical Specifications

Brand	Pilz
Model / Part Number	PNOZ X2.1 24VAC/DC 2n/o
Material Number (MNR)	774306
Product Type	Safety relay
GTIN	4046548011708
Power Supply Voltage	24V AC/DC (AC/DC compatible)
Output Contacts	2-way instantaneous normally open safety contacts (DPST-NO)
Rated Current	6A (at 240VAC)
Mounting Method	DIN rail mounting (35mm standard DIN rail)
Wiring Method	Screw terminals
Dimensions	Width 22.5mm * Height 87mm * Depth 121mm
Operating Temperature	-10°C to 55°C

Frequently Asked Questions

Q: What are the main application scenarios for this relay?

A: This product is mainly used in the basic safety circuits of various industrial equipment. Typical applications include emergency stop monitoring, safety door monitoring, and limit switch monitoring.

Q: In which types of equipment is this safety relay primarily used?

A: Due to its high reliability and fail-safe design, this relay is widely used in various stages of industrial production processes, covering manufacturing, chemical, and energy industries. It is an indispensable safety control component in automated production lines.

Q: What exactly does "force-guided contacts" mean?

A: Force-guided contacts are the core safety mechanism of a safety relay; essentially, they are a mechanical linkage structure. They physically and rigidly connect the normally open (NO) and normally closed (NC) contacts inside the relay, thus structurally eliminating the possibility of both closing simultaneously.
