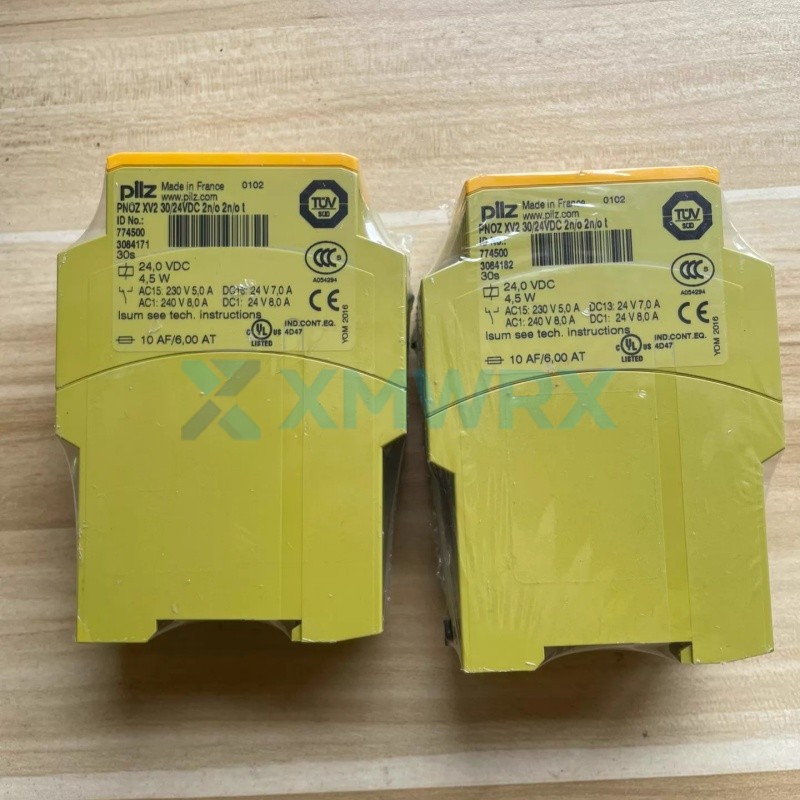

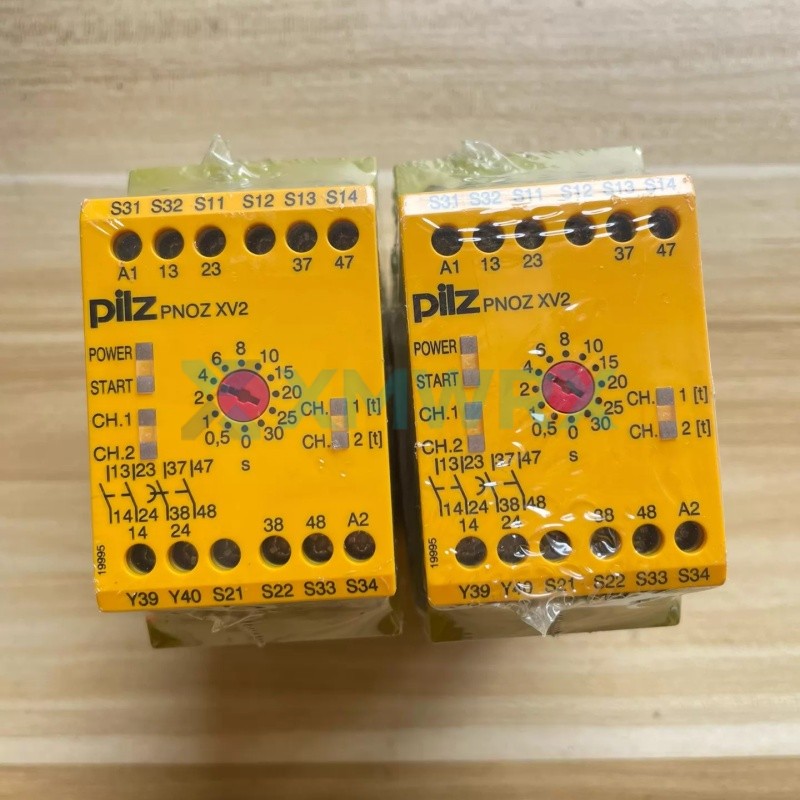

Pilz 774500 PNOZ XV2 30/24VDC 2n/o 2n/o t Independent safety relay

Name: Pilz 774500 PNOZ XV2 30/24VDC 2n/o 2n/o t Independent safety relay
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Pilz Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	PNOZ XV2 30/24VDC 2n/o 2n/o t
Product Type	Safety relay
Product Origin	Germany
Shipping Port	Xiamen
Weight	355g

Brand :
Pilz

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 774500 is a safety relay from the German brand PILZ, specifically model PNOZ XV2 30/24VDC 2n/o 2n/o t.

The PNOZ series of safety relays is one of the cornerstones of Pilz's safety automation, originating from a product developed by Pilz in 1987 that simultaneously protected both personnel and machinery. Through continuous development, these devices have become an important part of global machinery safety standards, proving their value in millions of applications worldwide.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Flexible Configuration: Supports 1/2-channel wiring with/without contact short-circuit detection.
✓ Delayed Power-Off: Features two delayed power-off contacts with a delay time adjustable from 0.1 to 30 seconds, offering 12 selectable levels.
✓ Convenient Diagnostics: Renowned for its smaller size, more powerful functions, and easier diagnostic methods.

Technical Specifications

Brand	Pilz
Model / Part Number	PNOZ XV2 30/24VDC 2n/o 2n/o t
Material Number (MNR)	774500
Product Type	Safety relay
GTIN	4046548011241
Supply Voltage	24 V DC
Power Consumption	DC 4.5 W
Number of Inputs	2
Semiconductor Outputs	0
Safety Contact Certification	AC compliant with UL standard 240 VAC G.P.
Contact Material	AgSnO2
Dimensions	Width 45mm
Width Method	Integrated screw terminal
Operating Temperature	-10°C to 55°C
Humidity Rating	93% r.h. (40°C), condensation not permitted

Frequently Asked Questions

Q: What's the difference between it and a regular relay?

A: This PILZ 774500 is a safety relay, fundamentally different from ordinary electromagnetic relays in design philosophy, internal structure, and application scenarios. Ordinary relays are mainly used for routine circuit logic control, while the core design philosophy of safety relays is "fail-safe," ensuring the safety of personnel and equipment even in the event of a malfunction.

Q: How exactly do I use the diagnostic functions of this safety relay?

A: The diagnostic functions of this PILZ 774500 safety relay primarily rely on its panel LED status indicators, forced-guided structure, and short-circuit detection mechanism.

Q: How does its forced-guided structure work?

A: The forced-guided structure of this Pilz safety relay is the core physical guarantee for its "fail-safe" capability. Its working principle primarily relies on an internal mechanical linkage mechanism. In short, the forced-guided structure, through purely mechanical physical constraints, structurally eliminates the possibility of contact conflicts or unsafe output states, ensuring that the relay can perform regular and deterministic safe actions in the event of any fault.
