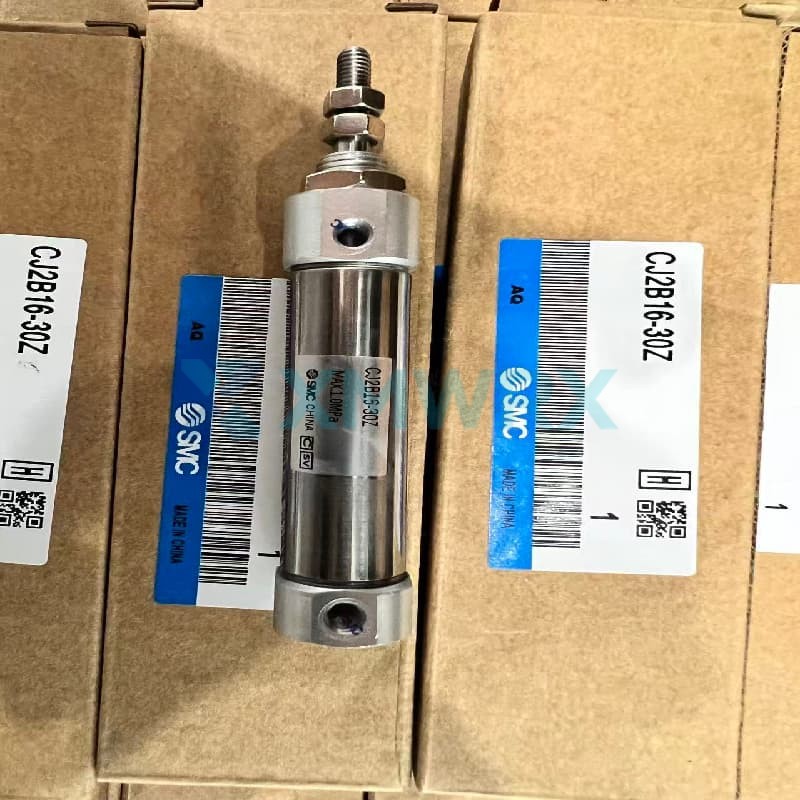

The CJ2816-30Z is a miniature double-acting cylinder from the SMC CJ2 series, with a 16mm bore and 30mm stroke.
It is characterized by its compact size and durability, and is compatible with magnetic switches for position detection in automation systems.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Dual-acting drive: Utilizing pneumatic control to extend and retract the piston, it achieves bidirectional work, ensuring reliable operation.
- ✓ Compact and lightweight design: Its miniaturized design and light weight make it ideal for installation in space-constrained automated equipment.
- ✓ Precise position detection: Compatible with magnetic switches (the "Z" in the model number usually indicates this function), allowing for precise piston position detection and facilitating automated control.
- ✓ Durability and cushioning: Typically employing stainless steel cylinders and piston rods for enhanced durability, the built-in rubber cushion absorbs the impact at the end of the piston's stroke, resulting in smoother and quieter operation.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
CJ2816-30Z |
| Action |
Single-lever double-acting
|
| Cylinder Bore |
16 mm |
| Stroke |
30 mm |
| Cushioning Type |
Rubber cushion (airless cushioning) |
| Maximum Operating Pressure |
0.7 MPa |
| Ambient and Fluid Temperature |
-10℃ ~ +60℃ or +70℃ (depending on specific configuration) |
| Piston Speed |
50 ~ 750 mm/s |
| Port Connection |
M5 x 0.8 (General specification) |
Frequently Asked Questions
Q: What equipment or scenarios are CJ2816-30Z cylinders suitable for?
A: This model (CJ2 series, 16mm cylinder bore) is ideal for installation in space-constrained automated equipment. It is primarily used in precision electronic assembly, semiconductor manufacturing equipment, small workpiece handling, and robot end effectors requiring precise push-pull or clamping movements.
Q: What are its speed characteristics? Is it suitable for high-speed applications?
A: Very suitable. This series of cylinders is designed to support piston speeds up to 750 mm/s. With the selection of a specification with air cushioning, speeds can even reach 1000 mm/s, meeting the high-speed, high-frequency motion requirements of most automated production lines.
Q: Can a magnetic switch be installed to detect piston position?
A: Yes. The "Z" in the model number usually indicates a specification with a built-in magnetic ring (such as the CDJ2 series), allowing direct installation of a magnetic switch to detect piston position and achieve automated control. SMC offers two magnetic switch mounting options: steel strip mounting and DIN rail mounting, allowing users to easily adjust the position.
