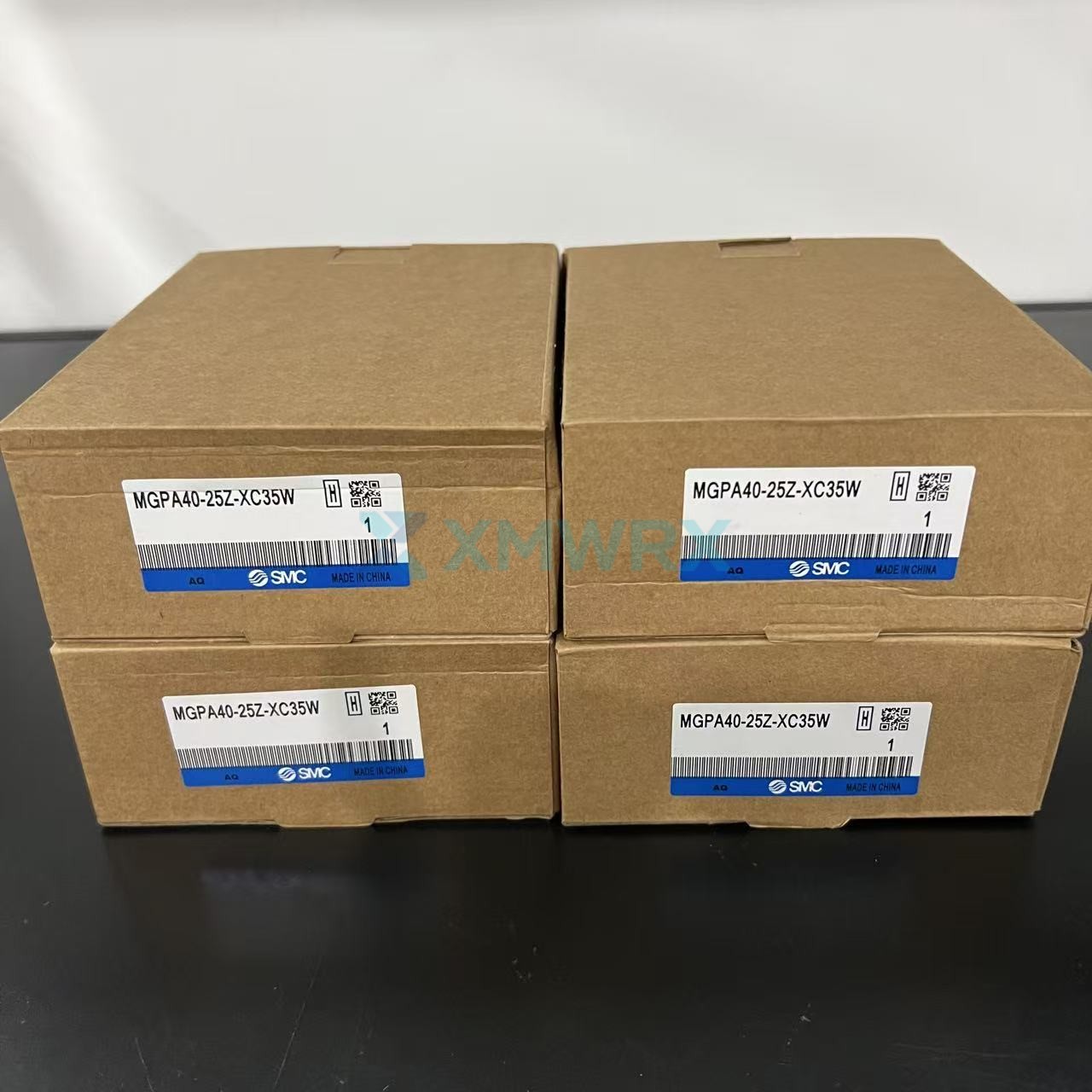

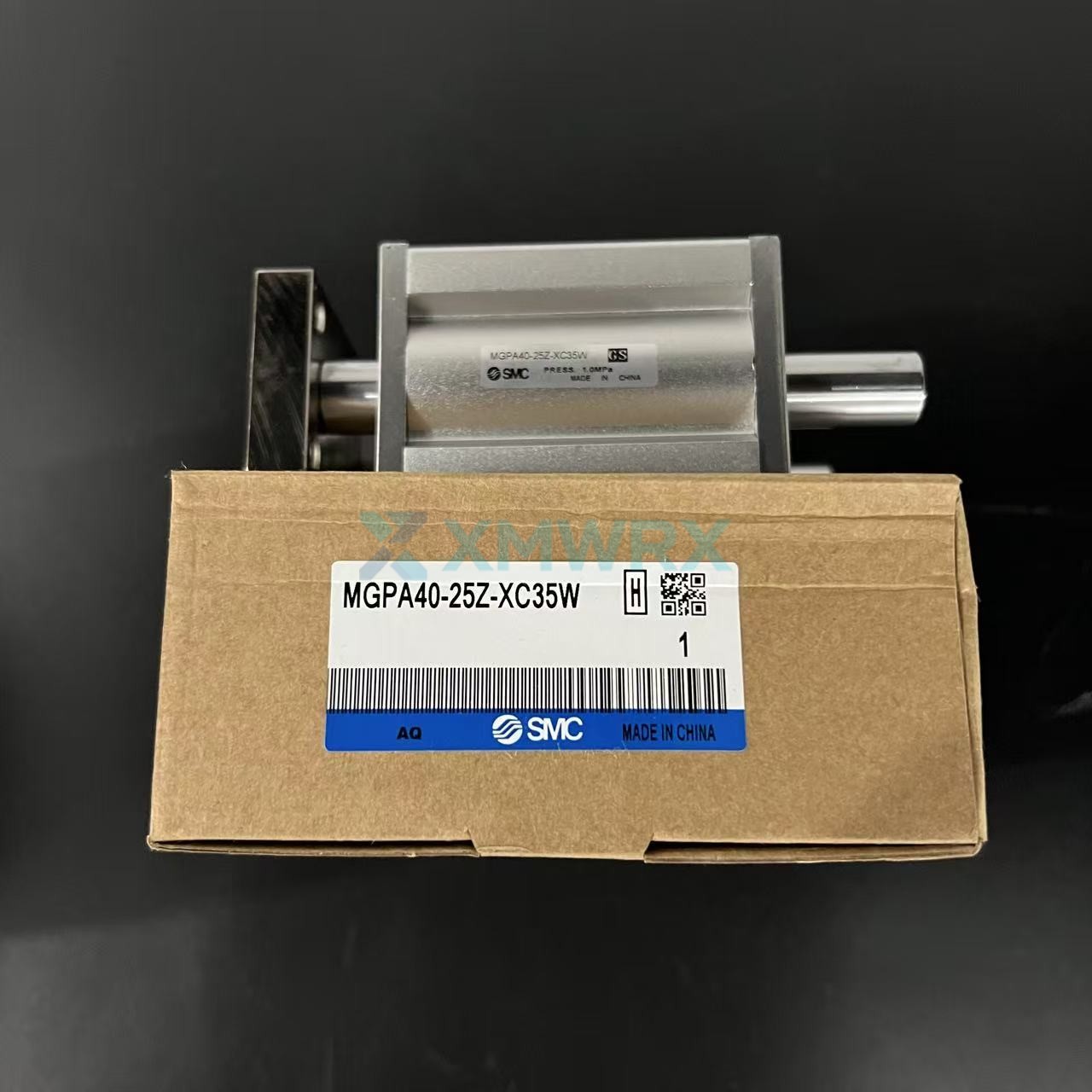

SMC MGPA40-25Z-XC35W MGP-Z Series Thin-walled cylinder with guide rod

Name: SMC MGPA40-25Z-XC35W MGP-Z Series Thin-walled cylinder with guide rod
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MGPA40-25Z-XC35W
Product Type	Thin-walled cylinder with guide rod
Product Origin	China
Shipping Port	Xiamen
Weight	4.51 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

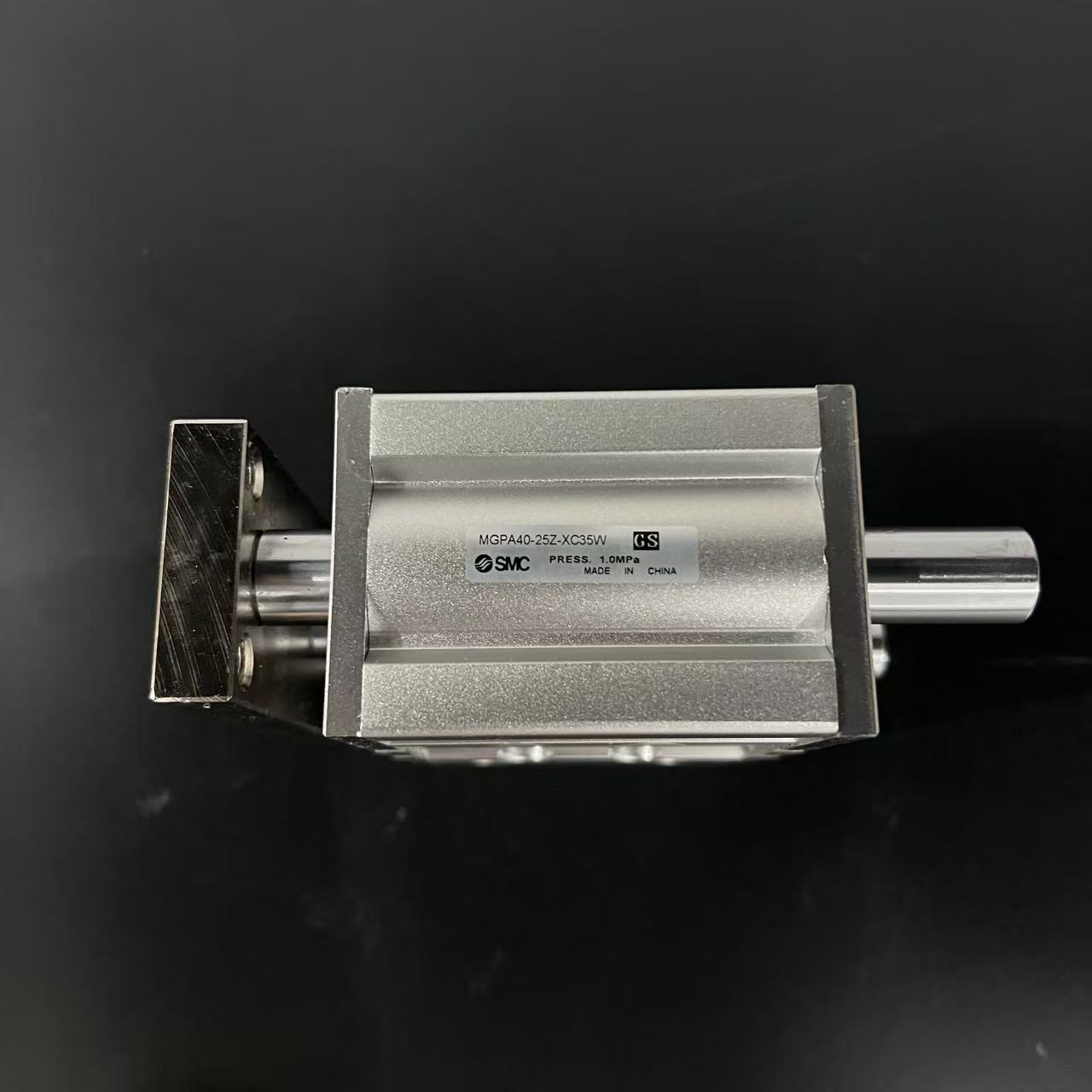

The MGPA40-25Z-XC35W is a slim cylinder with a guide rod from the SMC brand.

It combines high-precision ball bearing guidance with a slim cylinder design, aiming to provide accurate linear motion while saving installation space. This model has a 40mm bore, 25mm stroke, an integrated magnetic ring, and is available in a custom configuration with a single-sided metal dust seal.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Precision Guidance: Employs high-precision ball bearings as the guiding mechanism, providing excellent torque resistance and resistance to off-center loads.
✓ Space Saving: By shortening the guide rod length, the amount of clearance hole machining required during installation is effectively reduced, resulting in a more compact design.
✓ Double-Acting Drive: A single-rod double-acting cylinder, using pneumatic pressure to drive the piston in both directions.
✓ Easy Installation: Can be directly mounted on circular or strong magnetic field-resistant switches without additional partitions, simplifying electrical control integration.

Technical Specifications

Brand	SMC
Model / Part Number	MGPA40-25Z-XC35W
Cylinder bore	40 mm
stroke	25 mm
Actuation mode	Single-lever double-acting
Guide type	High-precision ball bearing
Maximum operating pressure	1 MPa
Maximum piston speed	50 to 500 mm/s

Frequently Asked Questions

Q: Is this cylinder suitable for dusty environments?

A: Yes. The "XC35" suffix in the model number indicates a custom specification with a single-sided metal dust seal, effectively preventing external dust and other foreign objects from entering the cylinder and extending its service life.

Q: How is its resistance to eccentric loads?

A: Very strong. It is a cylinder with a guide rod, and this model is equipped with a high-precision ball bearing, which provides better guiding accuracy and resistance to torque/eccentric loads compared to sliding bearings, making it suitable for applications that require resistance to certain lateral forces.

Q: What precautions should be taken when installing magnetic switches?

A: Very convenient. The cylinder design of this series allows for direct installation of circular or strong magnetic field-resistant magnetic switches without the need for a partition, simplifying the installation process and reducing accessory costs.
