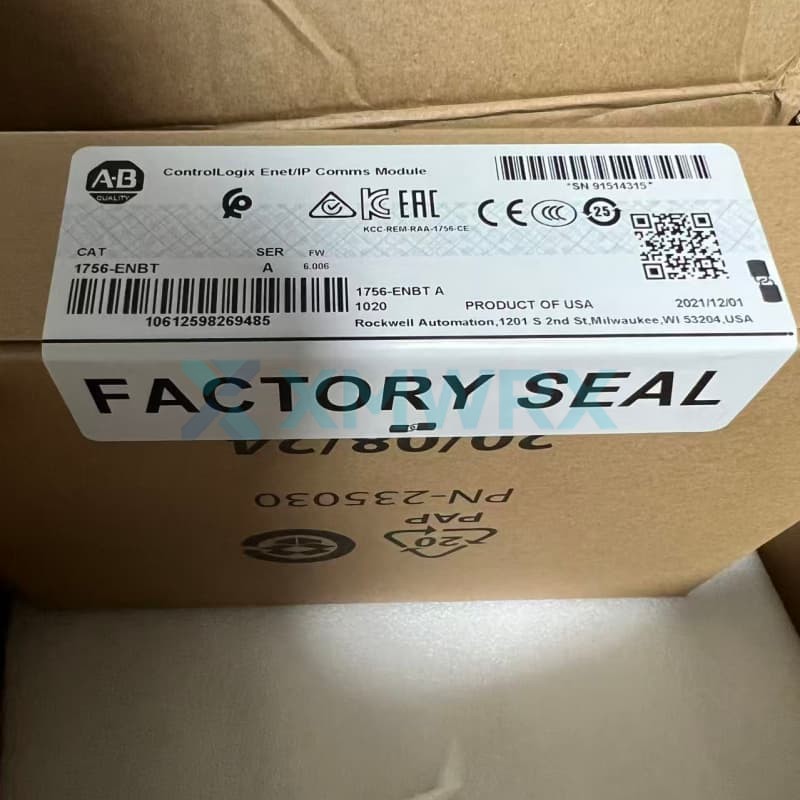

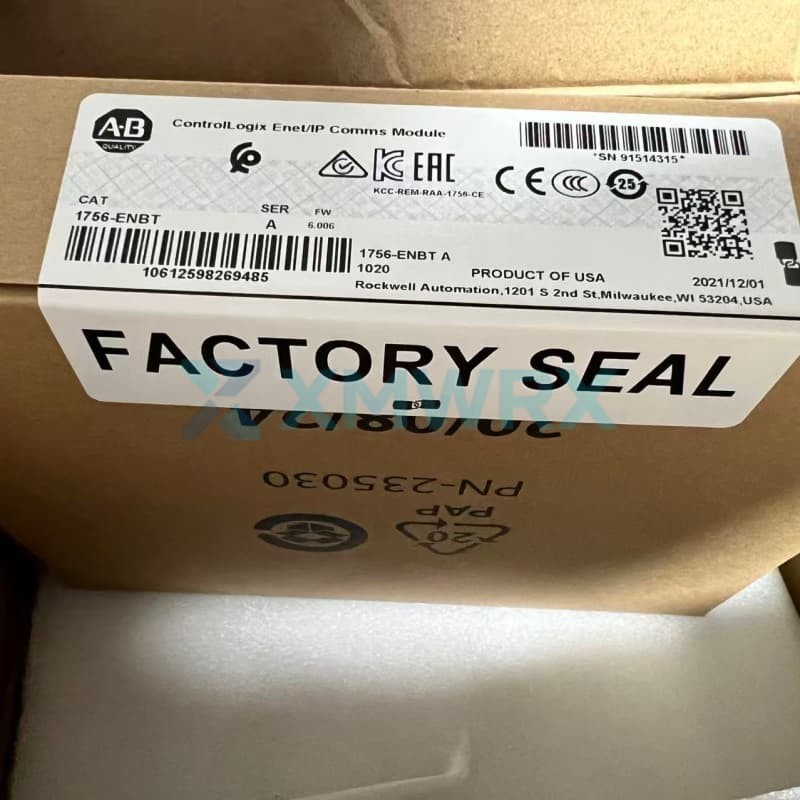

Allen Bradley 1756-ENBT/A An Ethernet communication bridge module from the ControlLogix series.

Name: Allen Bradley 1756-ENBT/A An Ethernet communication bridge module from the ControlLogix series.
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original Allen Bradley Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	1756-ENBT/A
Product Type	Ethernet communication bridging module
Product Origin	USA
Shipping Port	Xiamen
Weight	0.45 lbs

Brand :
Allen Bradley

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 1756-ENBT/A is an Ethernet communication bridge module in Rockwell Automation's ControlLogix series.

It serves as an interface between the controller and an EtherNet/IP network, enabling high-speed data exchange and device integration. This module supports connecting ControlLogix racks to Ethernet and can act as a bridge to other NetLinx networks (such as ControlNet). It is suitable for industrial automation environments requiring real-time control, configuration, and data acquisition.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ EtherNet/IP Bridging: Acts as a communication bridge between the ControlLogix controller and the EtherNet/IP network.
✓ High-Speed Data Transmission: Supports 10/100 Mbps adaptive rates, providing high-speed data exchange capabilities.
✓ Routing Function: Can serve as a network backbone, enabling CIP message routing between different NetLinx networks (such as ControlNet, DeviceNet).
✓ Distributed I/O Control: Supports monitoring and control of distributed I/O via the Ethernet network.

Technical Specifications

Brand	Allen Bradley
Model / Part Number	1756-ENBT/A
Product Series	ControlLogix
Communication Protocol	EtherNet/IP
Network Interface	1 RJ45 port, 10/100 Mbps auto-sensing
Maximum Connections	64 TCP connections, 128 CIP connections
Backplane Current	700 mA @ 5.1V DC; 3 mA @ 24V DC
Power Consumption	3.7 W
Operating Temperature	0 to 60 °C

Frequently Asked Questions

Q: Can the 1756-ENBT/A communicate with processors in different racks?

A: Yes. However, it requires routing through other communication modules within the rack (such as ControlNet modules). For example, an ENBT/A module in a remote rack can communicate with the main processor via the ControlNet network through a CNB module in the local rack. Note that I/O connections or production/consumer tag connections require the communication module and CPU to be in the same rack.

Q: What compatibility differences should be noted between the 1756-ENBT/A and 1756-ENET/B?

A: There are significant differences in functionality and compatibility between the two. For example, Schneider Electric's Advantys STBNIC2212 Ethernet interface module cannot be used with the older 1756-ENET/B, but it can communicate normally with the 1756-ENBT/A. If your project involves integration with third-party EtherNet/IP devices from other brands, the 1756-ENBT/A should be preferred to ensure compatibility.

Q: Which ControlLogix processors is the 1756-ENBT/A compatible with?

A: The 1756-ENBT/A is typically used with ControlLogix 5570 series and earlier L6x series processors (such as L61, L62, and L63). During installation, it plugs directly into the backplane of the ControlLogix rack, occupying one slot. Please note that this module does not support newer ControlLogix 5580 series controllers (such as L8x); these require enhanced Ethernet modules such as the 1756-EN2T or EN2TR.
