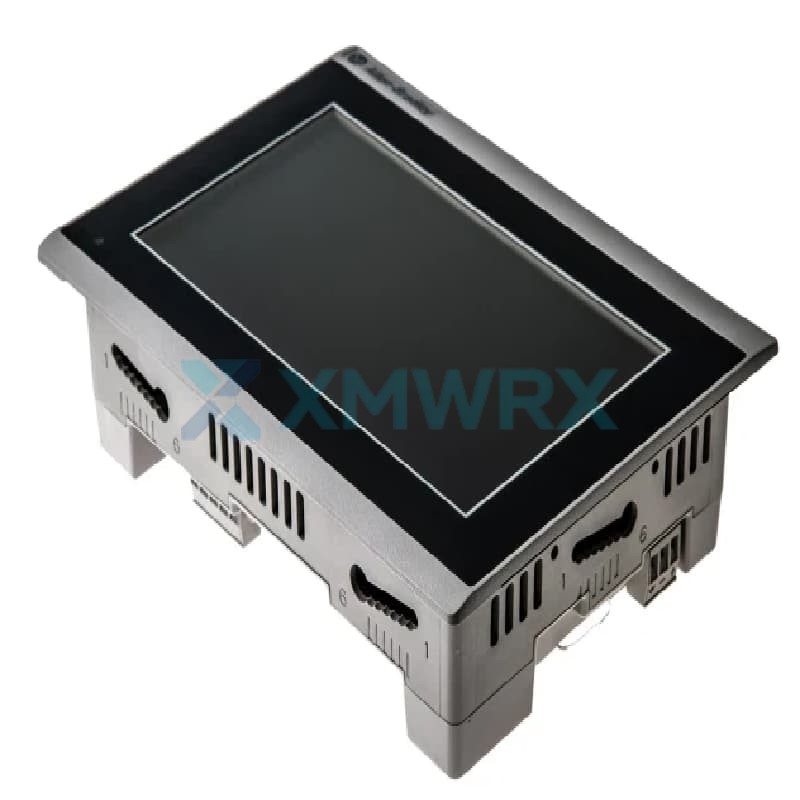

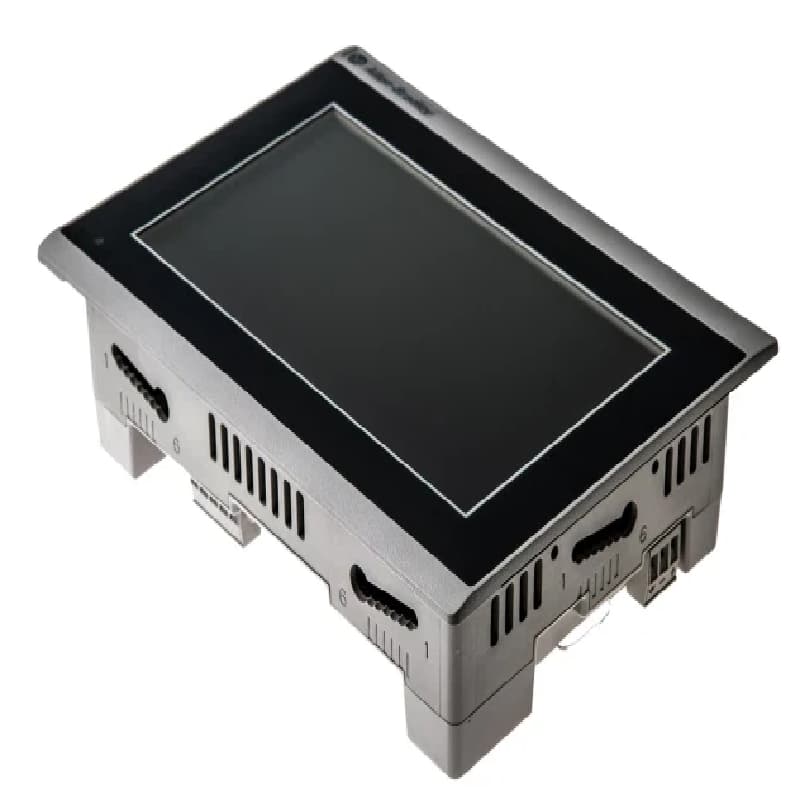

The 2711R-T7T/B is a 7-inch touchscreen human-machine interface (HMI) terminal from Rockwell Automation's Allen-Bradley PanelView 800 series.
Serving as the interface between the operator and the automation system, it allows users to monitor equipment status, control machine operation, and view production data. Powered by a 24V DC power supply, the device features a high-resolution 800x480 TFT color LCD screen and provides mainstream industrial communication interfaces such as Ethernet and serial ports.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features

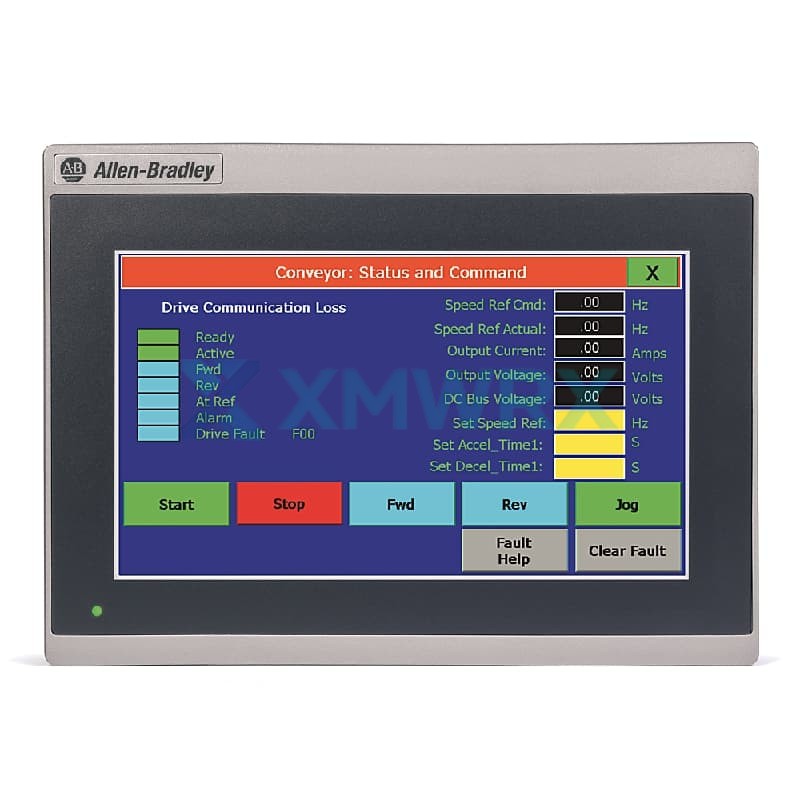

- ✓ Equipment Monitoring and Control: Provides operators with an intuitive touchscreen interface for real-time monitoring of automated equipment status and process flows, and execution of control commands such as start, stop, and parameter modification.
- ✓ Diverse Communication Connectivity: Built-in Ethernet and serial communication ports allow for easy connection to Rockwell Automation's Micro800 and CompactLogix series PLCs, as well as other controllers supporting standard industrial protocols.
- ✓ High-Speed Processing and Storage: Equipped with an 800MHz high-performance processor and 256MB of memory, it can smoothly run complex applications and quickly respond to user operations.
- ✓ Remote Monitoring and Data Management: Built-in VNC server supports remote monitoring and troubleshooting via network. It also supports recipe functionality, allowing uploading/downloading of data sets or parameters, and features microSD card and USB interfaces for convenient data transfer and firmware upgrades.
Technical Specifications
| Brand & Series |
Allen-Bradley / PanelView 800 Series
|
| Model / Part Number |
2711R-T7T/B |
| Display Screen |
7-inch TFT color LCD screen, resolution 800 x 480 |
| Input Method |
Touchscreen |
| Communication Ports |
1 Ethernet port, 1 serial port |
| Processor Speed |
800 MHz |
| Memory |
256 MB |
| Power Requirements |
24V DC |
| Maximum Power Consumption |
11 W (0.40 A @ 24V DC) |
| Dimensions (W x H x D) |
Approx. 144 x 197 x 54 mm |
| Weight |
Approx. 0.65 kg (1.44 lb) |
| Operating Temperature |
0...50 °C |
| Certifications |
CE, cULus, RoHS, etc. |
| Programming Software |
Connected Components Workbench (CCW) |
Frequently Asked Questions
Q: Which controllers does the 2711R-T7T/B primarily work with?
A: It is most commonly used with Rockwell's own Micro800 series small PLCs to form a cost-effective small control system. It also connects well to medium to large controllers such as the CompactLogix 5370/5380, meeting the needs of medium-sized applications.
Q: What types of industrial networks does this touchscreen support?
A: It supports Ethernet and serial communication. Ethernet is mainly used for high-speed communication and remote access with the PLC, while the serial port (RS-232) can be used to connect older controllers or other devices with serial ports.
Q: What are the main differences between the A-series and B-series of the 2711R-T7T?
A: The most significant difference is that the B-series does not support the DH485 communication protocol. If you are using B-series hardware (usually pre-installed with firmware version 8.011 or higher), it will not support DH485-based networks and will only be able to communicate via Ethernet or serial ports. Special attention is needed when replacing or selecting a project.
