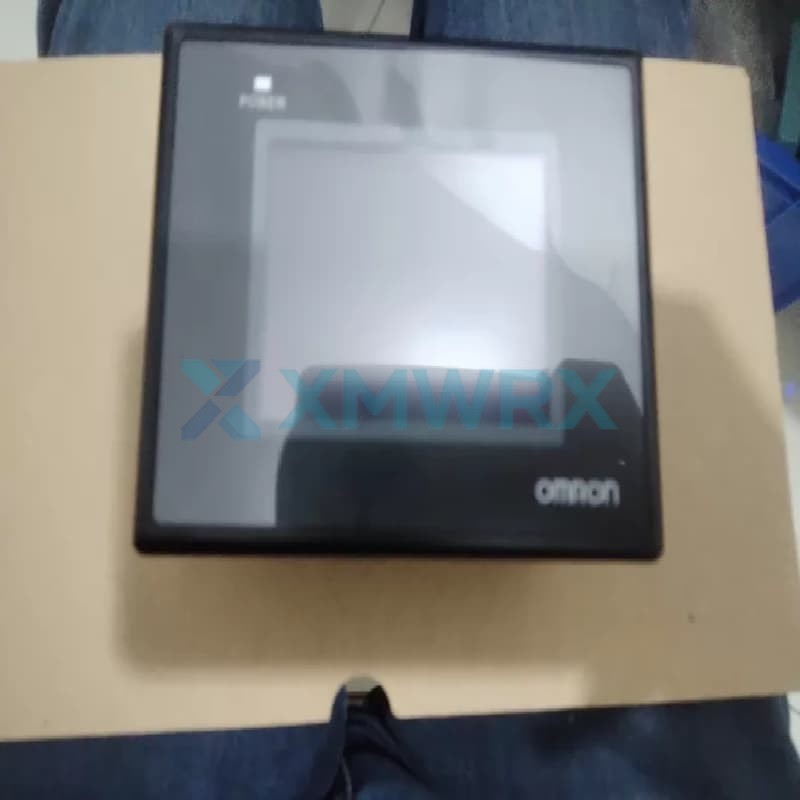

OMRON NB3Q-TW01B-V1 3.5-inch small programmable human-machine interface (HMI)

Name: OMRON NB3Q-TW01B-V1 3.5-inch small programmable human-machine interface (HMI)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	NB3Q-TW01B-V1
Product Type	3.5-inch small programmable human-machine interface (HMI)
Product Origin	China
Shipping Port	Xiamen
Weight	0.70 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The NB3Q-TW01B-V1 is a 3.5-inch compact programmable human-machine interface (HMI) in Omron's NB-V1 series, an upgraded replacement for the NB3Q-TW01B.

It features a TFT color LCD display with a resolution of 320x240, and boasts an IP65 protection rating, making it suitable for dust-proof and oil-resistant industrial environments. This product includes Ethernet and USB host interfaces and supports screen design via the FA integration kit "CX-One".

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Dual Communication Interfaces: Equipped with an Ethernet port and a USB Host interface, supporting program transfer, data backup, and communication with a host system.
✓ Multi-Protocol Serial Port: COM1 port supports RS-232C/422A/485 switching, allowing connection to various brands of PLCs.
✓ Ladder Diagram Monitoring: Allows direct on-site monitoring and debugging of PLC ladder diagram programs on the HMI without a computer.
✓ Compact and Rugged Design: A compact 3.5-inch form factor with an IP65 front panel protection rating, suitable for industrial equipment with limited installation space.

Technical Specifications

Brand	OMRON
Model / Part Number	NB3Q-TW01B-V1
Screen size	3.5 inches
Display resolution	320 × 240 pixels (QVGA)
Display colors	65,536 colors
Touch technology	Analog resistive (1024 × 1024 resolution)
Power supply voltage	24V DC (range 20.4V to 27.6V)
Protection rating	IP65 (front panel), dustproof and splash-proof
User memory	128 MB (including system partition)
Communication ports	Ethernet (10/100 base-T) ×1, USB Host ×1, USB Slave ×1, RS-232C/422A/485 (COM1) ×1
Dimensions	129.8 (W) × 103.8 (H) × 52.8 (D) mm
Knob Size	119 × 93 mm
Panel Thickness	1.6 ~ 4.8 mm
Operating temperature	0°C to 50°C
Power Consumption	4 W

Frequently Asked Questions

Q: What are the suitable applications for the NB3Q-TW01B-V1?

A: Its compact 3.5-inch size is suitable for equipment with limited installation space, such as small packaging machines, textile machinery, HVAC terminal control, and small automated special-purpose machines. It is suitable for scenarios requiring on-site monitoring but with limited panel opening size.

Q: What software is used for programming? Does it support offline simulation?

A: It uses the Omron FA integration toolkit "CX-One" (which includes NB-Designer). Offline simulation is supported, allowing you to simulate and debug the screen program on a computer without physical hardware.

Q: What is the difference between the NB3Q-TW01B-V1 and the NB3Q-TW01B (older model)? Can they be directly interchanged?

A: Yes, they can be interchanged. The NB3Q-TW01B-V1 is an upgraded version (replacement model) of the NB3Q-TW01B. The main differences are that the V1 version optimizes power consumption (9W→4W) and weight (305g→320g), resulting in more stable performance. The mounting hole size (119×93 mm) and communication interface configuration are the same, and they can be used interchangeably.
