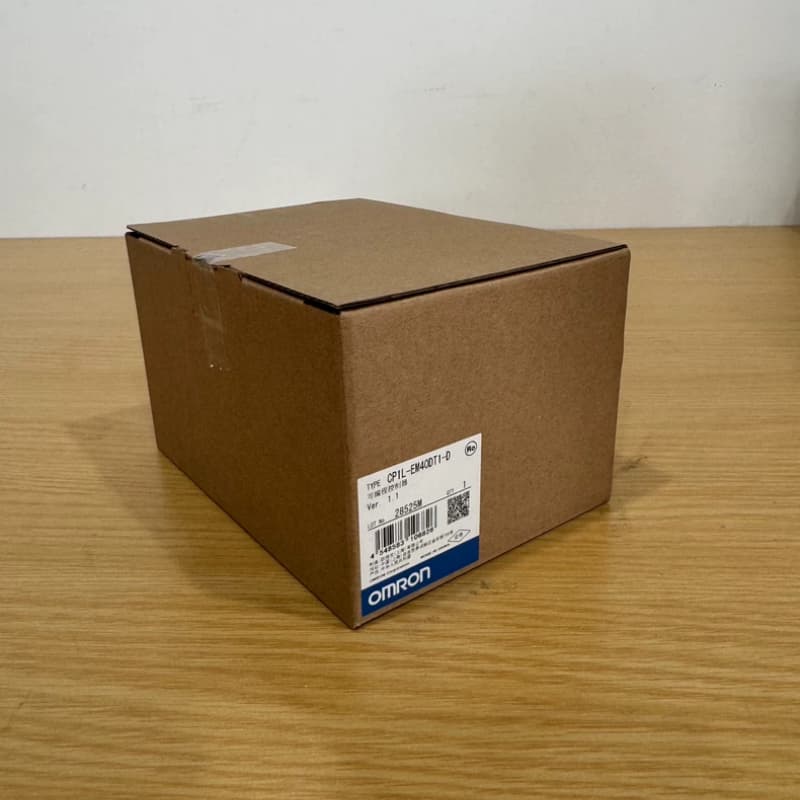

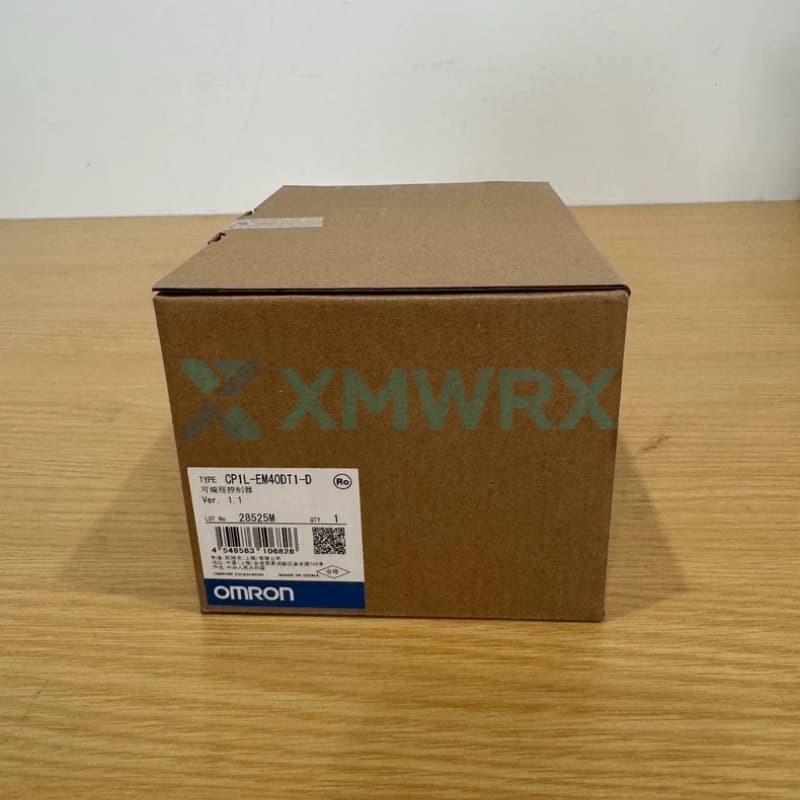

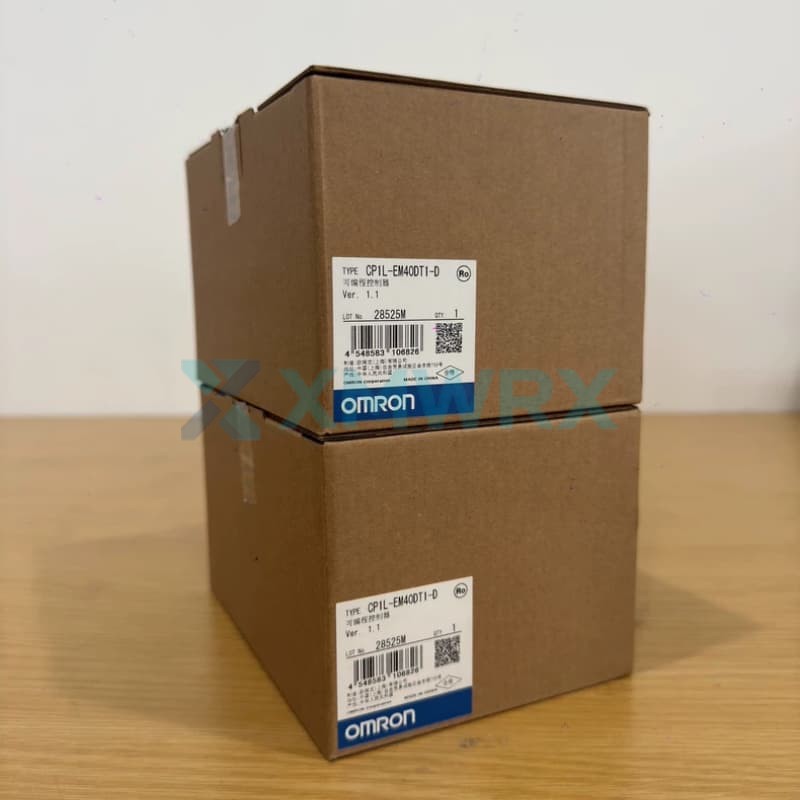

OMRON CP1L-EM40DT1-D 40-point I/O Programmable Logic Controller (PLC) CPU Unit

Name: OMRON CP1L-EM40DT1-D 40-point I/O Programmable Logic Controller (PLC) CPU Unit
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CP1L-EM40DT1-D
Product Type	40-point I/O Programmable Logic Controller (PLC) CPU Unit
Product Origin	China
Shipping Port	Xiamen
Weight	1.1 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The CP1L-EM40DT1-D is a 40-point I/O programmable logic controller (PLC) CPU unit in Omron's CP1L series.

It operates on a 24V DC power supply and features 24 built-in digital inputs and 16 transistor (PNP source) outputs. This model comes standard with an Ethernet communication port and supports ladder logic programming via CX-One software, making it a cost-effective and compact core unit for automation control.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Built-in Ethernet Communication: Standard Ethernet TCP/IP port for easy connection to host systems or network configuration.
✓ High-Speed Counting and Pulse Output: Equipped with 4 channels of 100kHz high-speed counters and 2 channels of 100kHz pulse outputs, suitable for positioning and high-speed control.
✓ Large Program Memory: Program capacity of 10K~20K steps, data memory of 32K words, supporting function block (FB) and structured text (ST) programming.
✓ Flexible Expansion Capability: Can connect up to 3 expansion units, with a maximum I/O point count of 160 points, and supports optional boards such as serial ports and analog inputs.

Technical Specifications

Brand	OMRON
Model / Part Number	CP1L-EM40DT1-D
I/O Points	40 points (24 inputs / 16 outputs)
Input Type	DC24V (PNP/NPN shared)
Output Type	Transistor (Source PNP)
Power Supply Voltage	24V DC (20.4~26.4V DC)
Program Capacity	10K~20K steps
Data Memory	32K words
Logic Execution Speed	0.55 µs
High-Speed Counters	4 channels (single-phase 100kHz / phase difference 50kHz)
Pulse Outputs	2 channels (100kHz)
Communication Ports	Ethernet ×1 (standard), RS-232C/RS-485 (optional board required)
Dimensions	150 (W) × 90 (H) × 85 (D) mm
Operating temperature	0°C to 50°C
Mounting Method	DIN rail mounting

Frequently Asked Questions

Q: What types of equipment is the CP1L-EM40DT1-D mainly used in?

A: It is suitable for small automated equipment requiring Ethernet communication and basic positioning functions, such as packaging machinery, electronic assembly lines, textile machinery, small conveyor systems, and HVAC terminal control.

Q: What software is used for programming? Does it support offline simulation?

A: It uses the Omron FA Integration Toolkit CX-One (which includes CX-Programmer). Offline simulation is supported; the ladder diagram program can be simulated on a computer, the logic debugged, and then downloaded to the PLC.

Q: Can the CP1L-EM40DT1-D be expanded with more I/O points?

A: Yes. It can connect to up to 3 CP1W series expansion units (such as digital I/O, analog I/O, temperature input, etc.), with a maximum of 160 local I/O points. In addition, optional functional modules such as serial communication board (RS-232C/RS-485) and LCD display board are also available.
