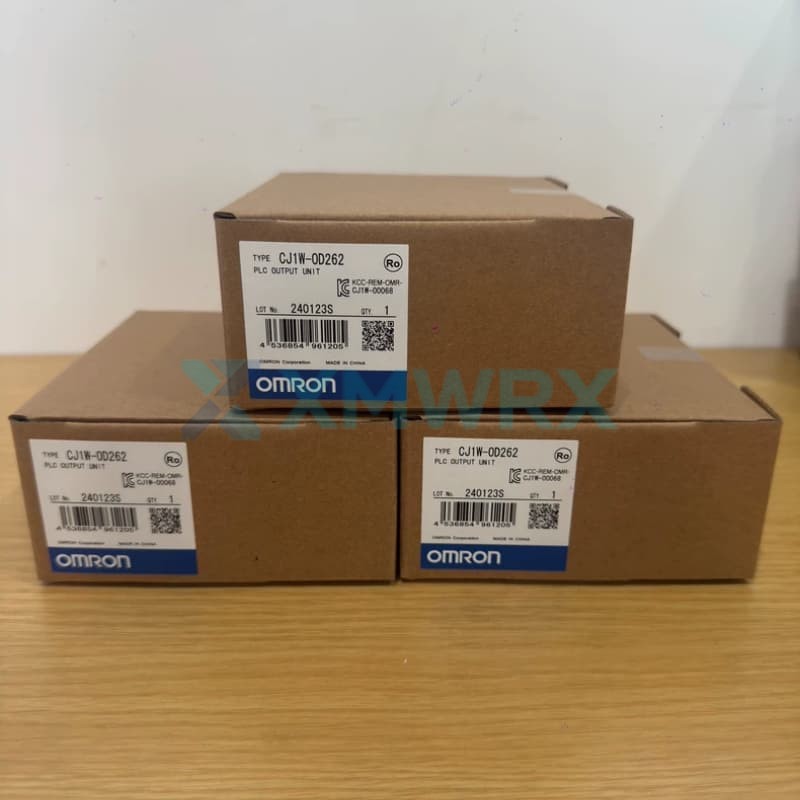

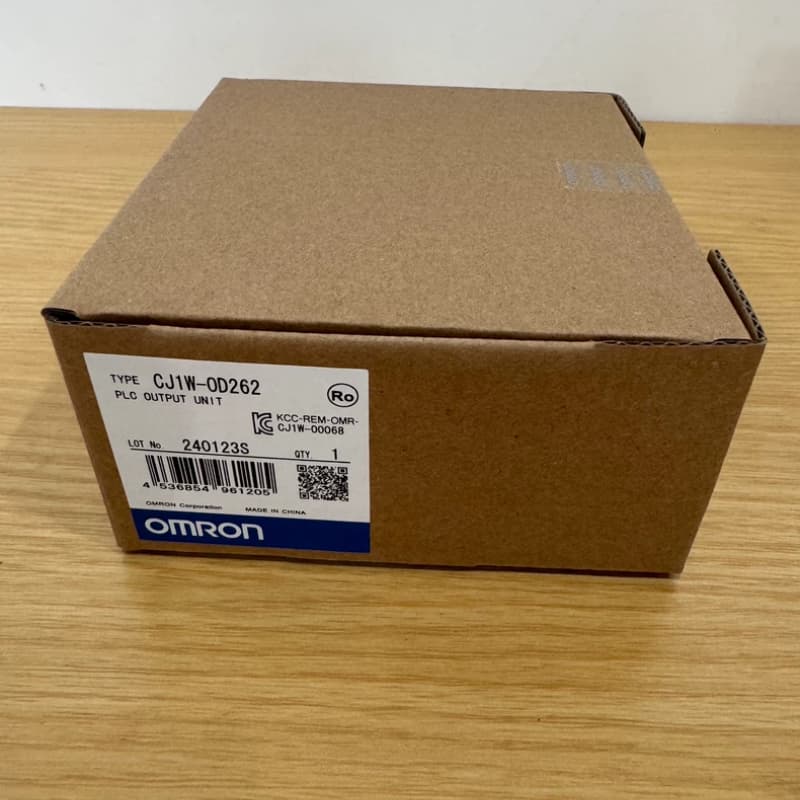

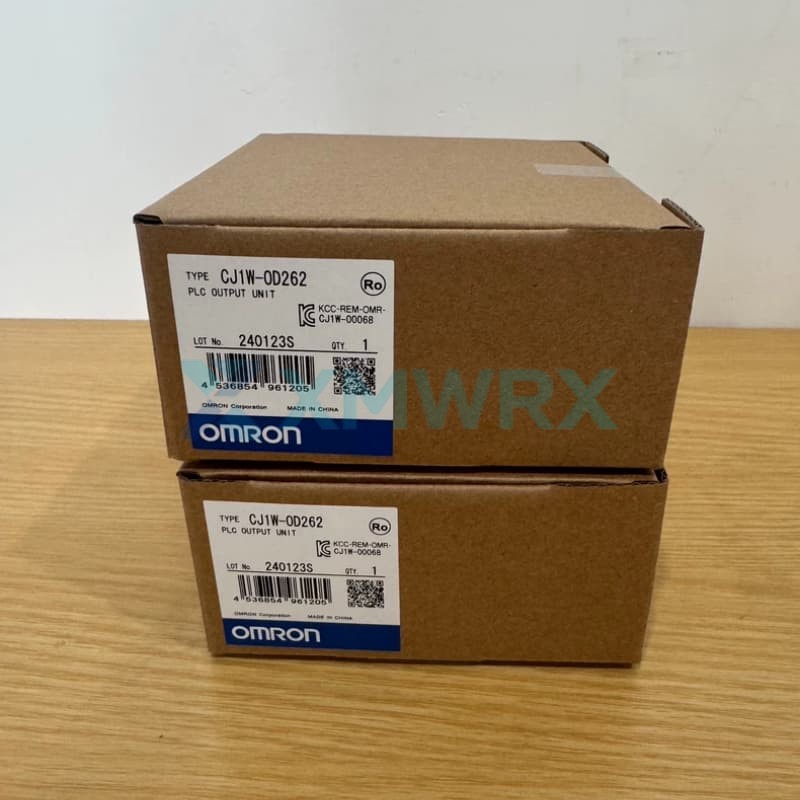

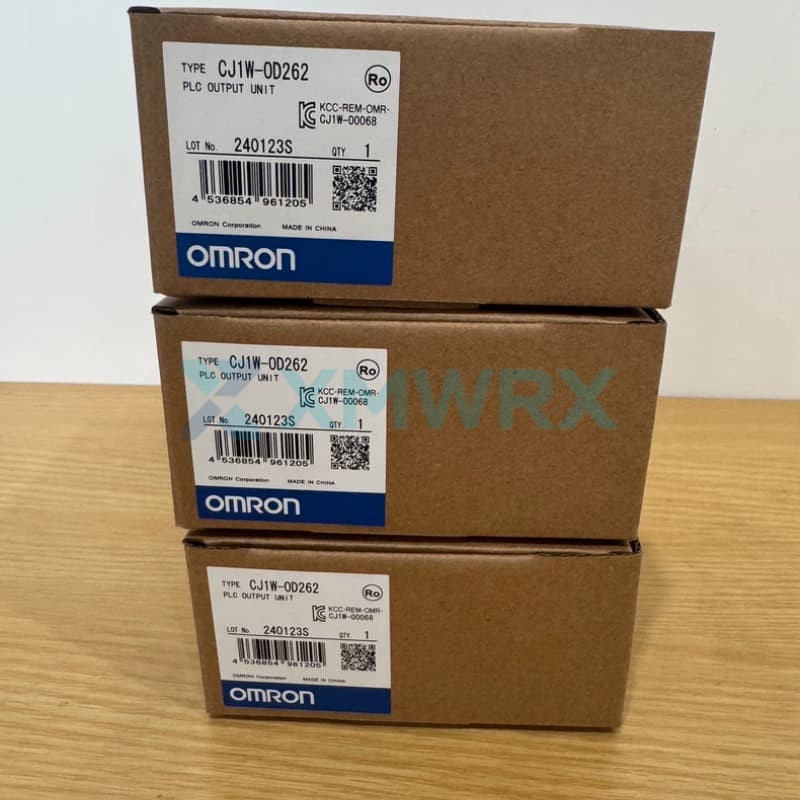

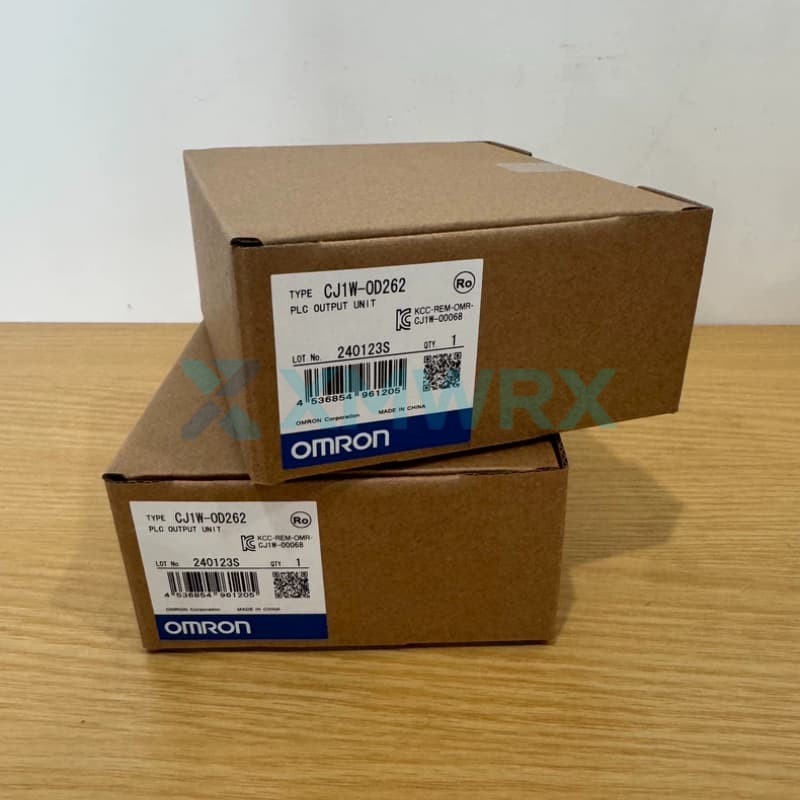

OMRON CJ1W-OD262 64-point high-density transistor output module

Name: OMRON CJ1W-OD262 64-point high-density transistor output module
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CJ1W-OD262
Product Type	Digital output module
Product Origin	China
Shipping Port	Xiamen
Weight	0.243 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The CJ1W-OD262 is a 64-point high-density transistor output module from Omron's CJ series.

It uses a 24V DC power supply (PNP source type), has a maximum single-point load current of 0.3A, and is equipped with two MIL connector interfaces. This module is designed for applications requiring high-speed switching and long-life output, such as driving DC24V loads like solenoid valves and indicator lights.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-density 64-point output: A single module provides 64 output points, effectively saving rack space and suitable for control needs with a large number of points.
✓ High-speed switching response: Transistor output type, ON response time is only 15μs, OFF response time is 80μs, much faster than relay output, suitable for high-frequency operation applications.
✓ PNP source-type output: The output type is source-type (PNP), with the common terminal connected to the positive terminal, meeting the wiring requirements of specific industrial loads.
✓ MIL connector interface: Equipped with two standard MIL connectors (40 pins), which, together with dedicated cables and terminal blocks, can significantly reduce wiring time.

Technical Specifications

Brand	OMRON
Model / Part Number	CJ1W-OD262
Output Points	64
Rated Voltage	24V DC (10.2~26.4V DC)
Output Type	Transistor (Source PNP)
Maximum Load Current	0.3 A/point, 6.4 A/unit
ON Response Time	15 μs
OFF Response Time	80 μs
External Connection	MIL Connector ×2 (40-pin, connectors sold separately)
Dimensions	31 (W) × 90 (H) × 83.6 (D) mm
Mounting Method	DIN Rail Mount (CJ Series Rack Mount)

Frequently Asked Questions

Q: In what applications is the CJ1W-OD262 suitable?

A: It is suitable for DC24V load control requiring high speed and frequent switching, such as solenoid valve actuation, indicator light control, pneumatic component operation, and high-speed counting/positioning output in packaging machinery. Due to its long transistor output life and lack of mechanical contacts, it is particularly suitable for high-frequency applications.

Q: If I want to connect an external load, do I need to purchase a separate connector?

A: Yes. The MIL connector (40-pin) for this module must be purchased separately. Omron provides matching cables (such as the XW2Z series) and conversion terminal blocks (such as the G70A, G70V, and XW2D series) for external wiring.

Q: Which PLC systems can the CJ1W-OD262 be used with?

A: This module is designed specifically for Omron CJ series PLCs and must be installed on the backplane of the CJ series CPU rack. It is also compatible with the CS series (CS series racks are required), but cannot be directly used with small PLCs such as the CP series.
