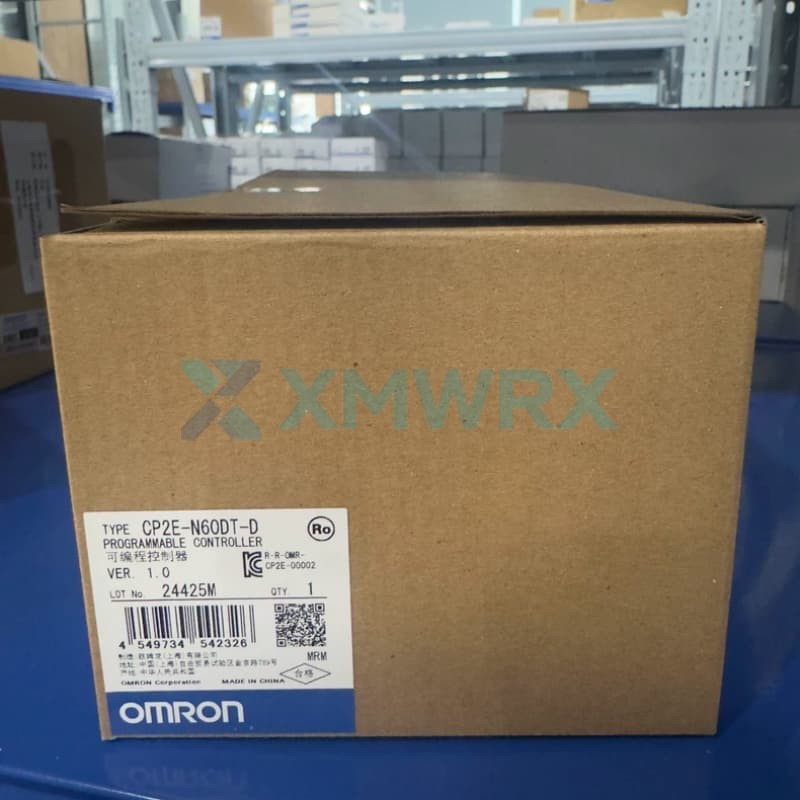

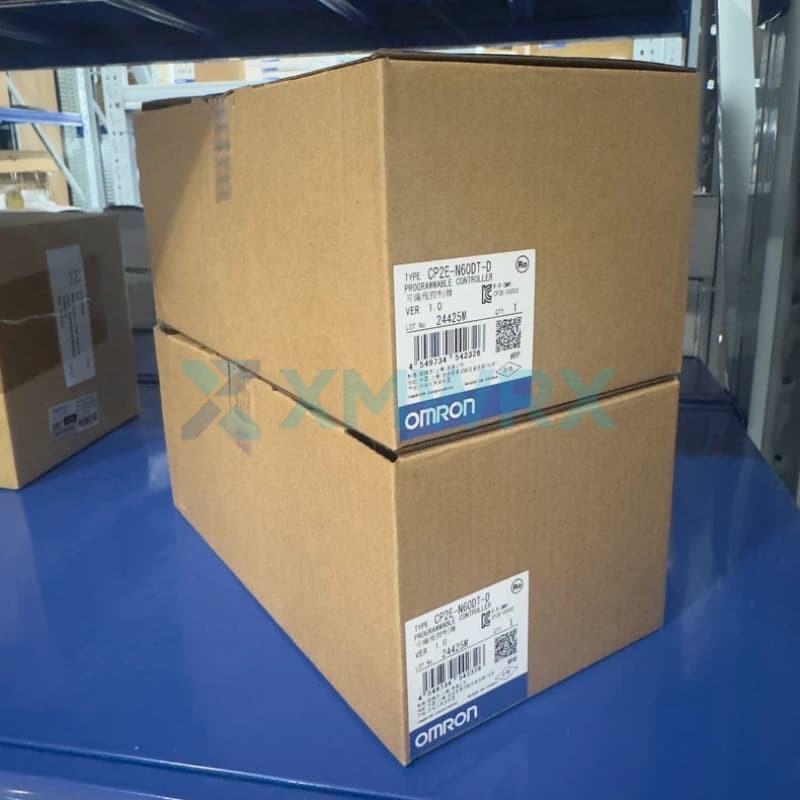

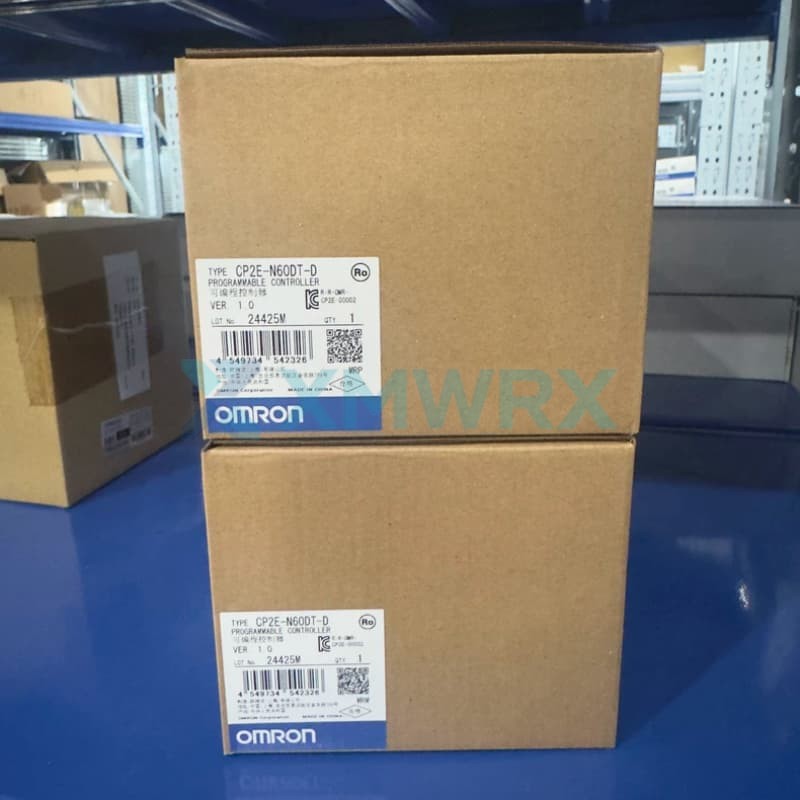

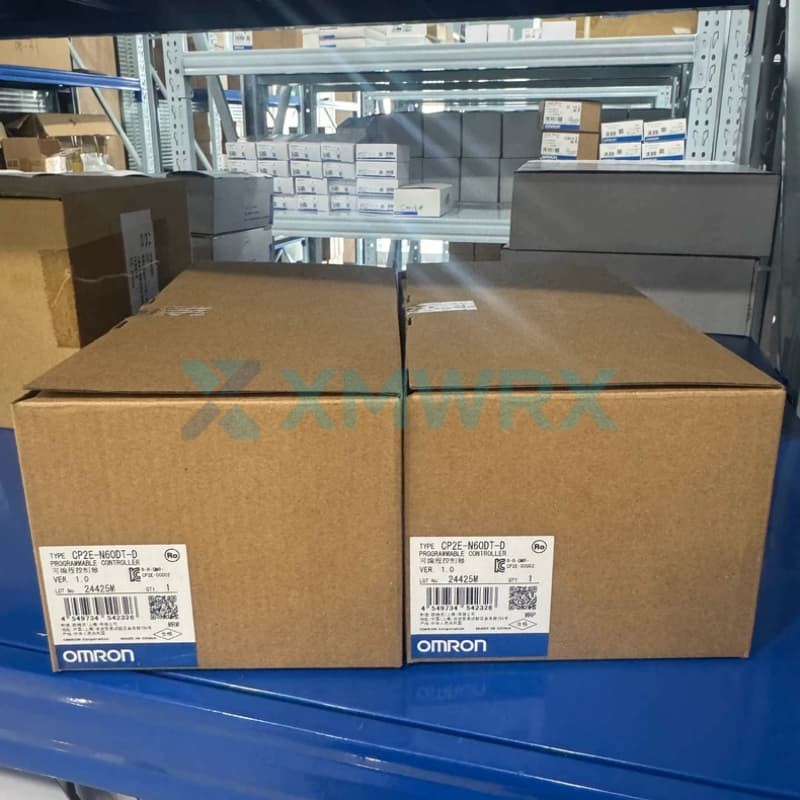

OMRON CP2E-N60DT-D 60-point networked compact programmable logic controller (PLC) CPU unit

Name: OMRON CP2E-N60DT-D 60-point networked compact programmable logic controller (PLC) CPU unit
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CP2E-N60DT-D
Product Type	Programmable Logic Controller (PLC) CPU Unit
Product Origin	China
Shipping Port	Xiamen
Weight	1.64 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The CP2E-N60DT-D is a 60-point networked compact programmable logic controller (PLC) CPU unit in Omron's CP2E series.

It operates on a 24V DC power supply and integrates 36 digital inputs and 24 transistor (NPN sink) outputs. This model comes standard with two Ethernet ports, supports daisy-chain topology, and is programmed via CX-Programmer software. It is a cost-effective controller with a battery-free backup design, suitable for small to medium-sized automation systems.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Dual Ethernet Ports: Built-in two Ethernet TCP/IP ports support daisy-chaining for easy networking with host systems and HMIs.
✓ High-Speed Motion Control: Equipped with 4-axis 100kHz pulse outputs and 6-channel 100kHz high-speed counter inputs, suitable for positioning and speed control.
✓ Battery-Free Backup: Program and data memory can be maintained without batteries, reducing maintenance costs.
✓ Flexible Expansion Capabilities: Supports up to 3 expansion units, with a maximum local I/O point count of 180 points. Optional boards support analog signals and serial communication.

Technical Specifications

Brand	OMRON
Model / Part Number	CP2E-N60DT-D
I/O Points	60 (36 inputs / 24 outputs)
Input Type	DC24V (PNP/NPN switchable)
Output Type	Transistor (NPN sink)
Power Supply Voltage	24V DC (20.4~26.4V DC)
Program Capacity	20K steps
Data Memory	16K words
Logic Execution Speed	0.23 µs
High-Speed Counter	6 channels (100kHz)
Pulse Output	4 axes (100kHz)
Communication Ports	Ethernet ×2, RS-232C/RS-485 (communication board required)
Dimensions	195 (W) × 90 (H) × 80 (D) mm
Mounting Method	DIN rail mounting
Operating Temperature	-20°C to 60°C

Frequently Asked Questions

Q: What types of equipment is the CP2E-N60DT-D mainly used in?

A: It is suitable for small to medium-sized automated equipment requiring Ethernet communication and basic positioning functions, such as packaging machinery, electronic assembly lines, conveyor systems, HVAC control, automotive parts manufacturing, and industrial robot control.

Q: What software is used for programming? Does it support offline simulation?

A: It uses Omron CX-Programmer software (part of the CX-One suite). It supports offline simulation, allowing you to simulate ladder logic program execution on a computer, debug the logic, and then download it to the PLC.

Q: Can the CP2E-N60DT-D be expanded with more I/O points?

A: Yes. It can connect to up to 3 CP series expansion units, with a maximum of 180 local I/O points. It supports various expansion types, including digital, analog, and temperature input modules. In addition, a serial communication board (RS-232C/RS-422/RS-485) can be optionally installed.

Why Partner With Us?

2016

Established in

300+

Countries Sold

200+

Employees

4000+

Companies Served

100% Original

Genuine spare parts through rigorous supply chain control.

Quick Shipping

Expedited delivery through our global logistics network.

24/7 Support

Uninterrupted technical assistance for system installation.

Large Stock

Immediate availability from our massive control systems inventory.

Hot Tags :

OMRON CP2E-N60DT-D

CP2E PLC 60 I/O

OMRON Transistor Output

NPN Sinking PLC

CP2E Dual Ethernet

CX-Programmer Software

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

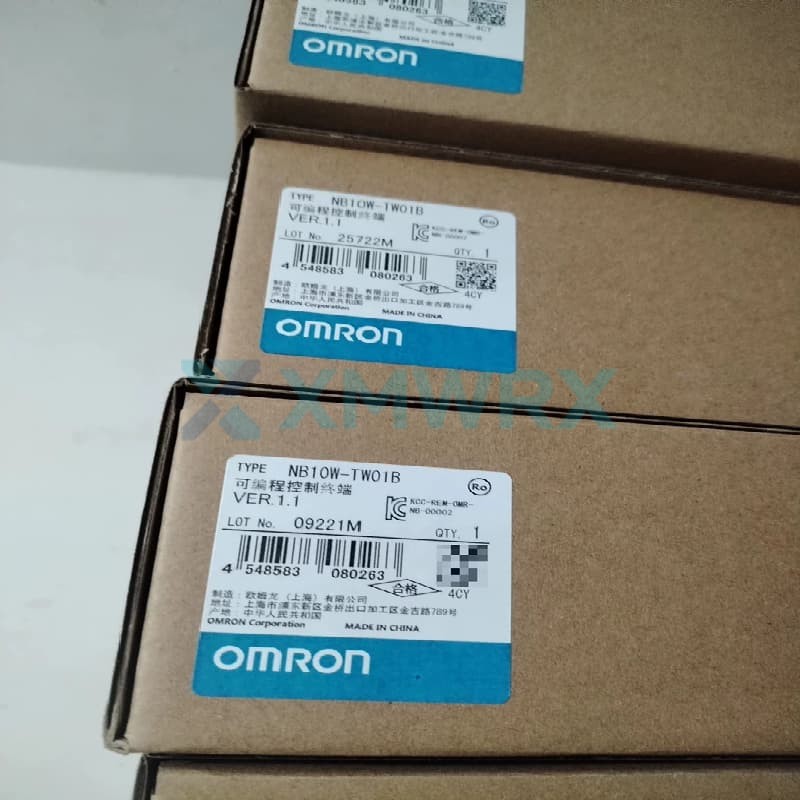

OMRON NB10W-TW01B 10.1-inch high-performance programmable human-machine interface (HMI)

✔ IN STOCK ✔ New Original Delivery time: Shipped in 3 days after payment Condition: Brand New & Original OMRON Factory Sealed Warranty: 12 Months Standard Warranty Quality Guarantee: 30-Day Return and Exchange Policy Part Number NB10W-TW01B Product Type 10.1-inch high-performance programmable human-machine interface (HMI) Product Origin China Shipping Port Xiamen Weight 4.08 lbs

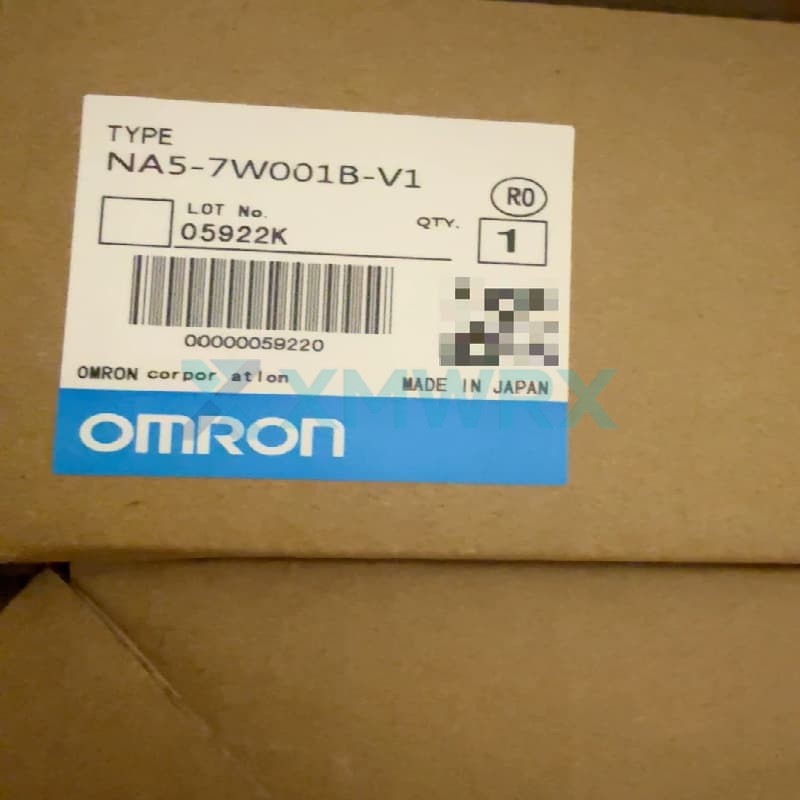

OMRON NA5-7W001B-V1 7-inch high-performance programmable human-machine interface (HMI)

✔ IN STOCK ✔ New Original Delivery time: Shipped in 3 days after payment Condition: Brand New & Original OMRON Factory Sealed Warranty: 12 Months Standard Warranty Quality Guarantee: 30-Day Return and Exchange Policy Part Number NA5-7W001B-V1 Product Type 7-inch high-performance programmable human-machine interface (HMI) Product Origin Japan Shipping Port Xiamen Weight 3.67 lbs

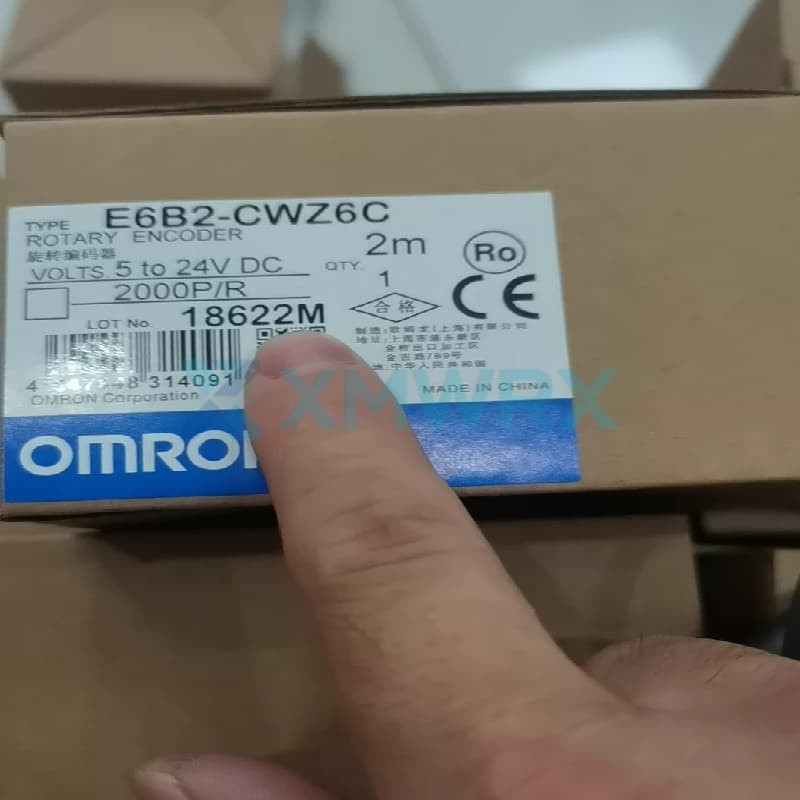

OMRON E6B2-CWZ6C 360P/R 500P/R 600P/R 1000P/R 2000P/R Incremental rotary encoder

✔ IN STOCK ✔ New Original Delivery time: Shipped in 3 days after payment Condition: Brand New & Original OMRON Factory Sealed Warranty: 12 Months Standard Warranty Quality Guarantee: 30-Day Return and Exchange Policy Part Number E6B2-CWZ6C Product Type Incremental rotary encoder Product Origin China Shipping Port Xiamen Weight 0.22 lbs

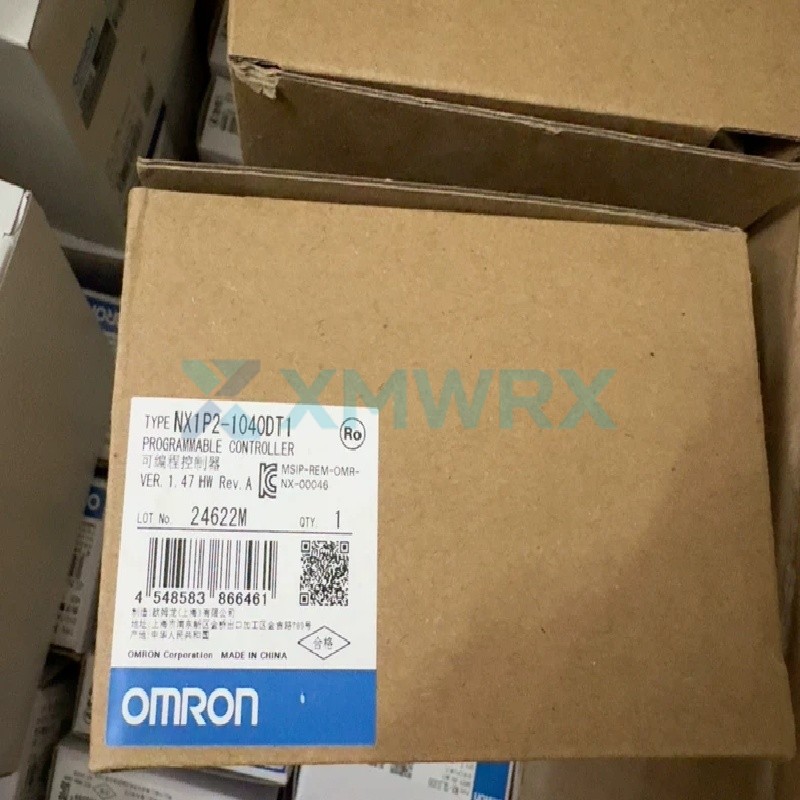

OMRON NX1P2-1040DT1 Sysmac NX1P2 Machine automation controller CPU unit
