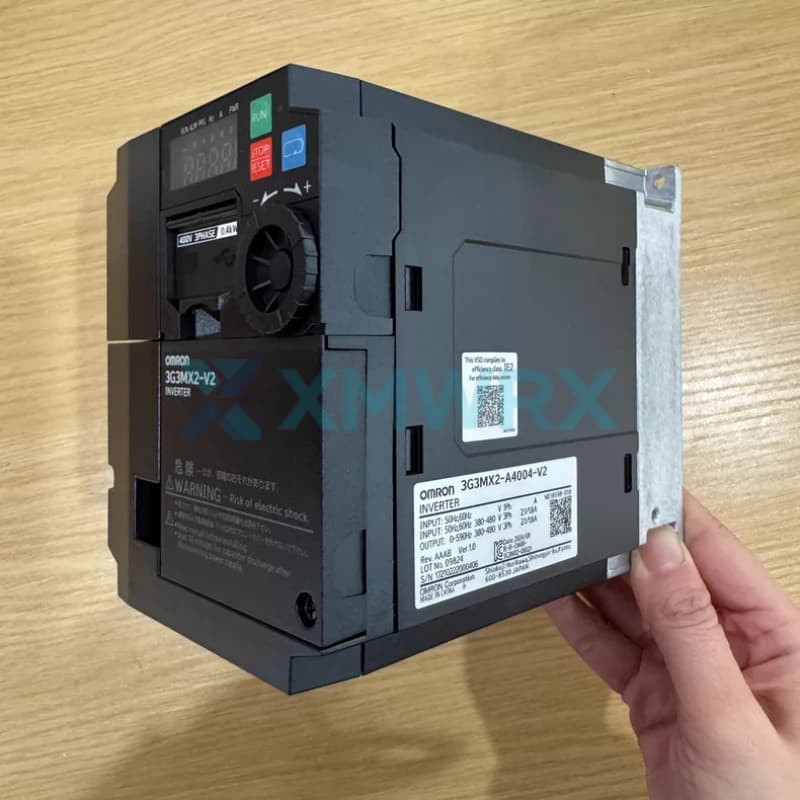

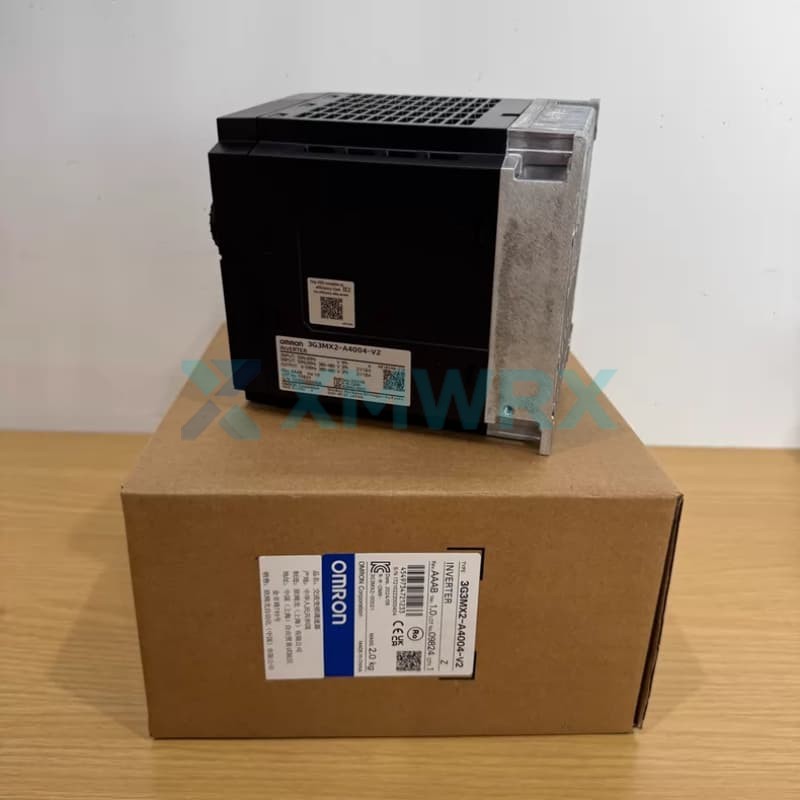

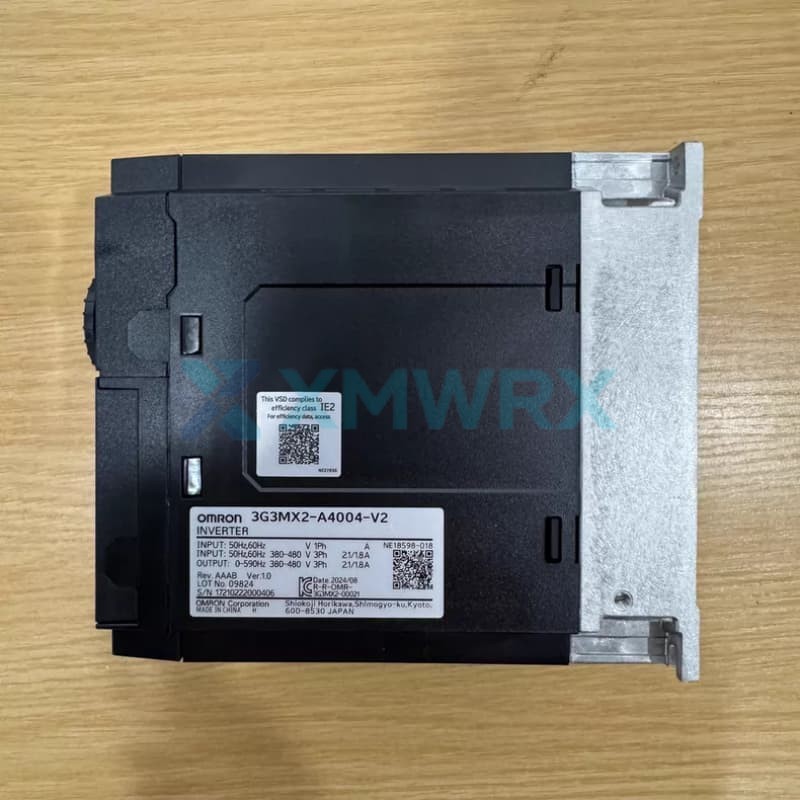

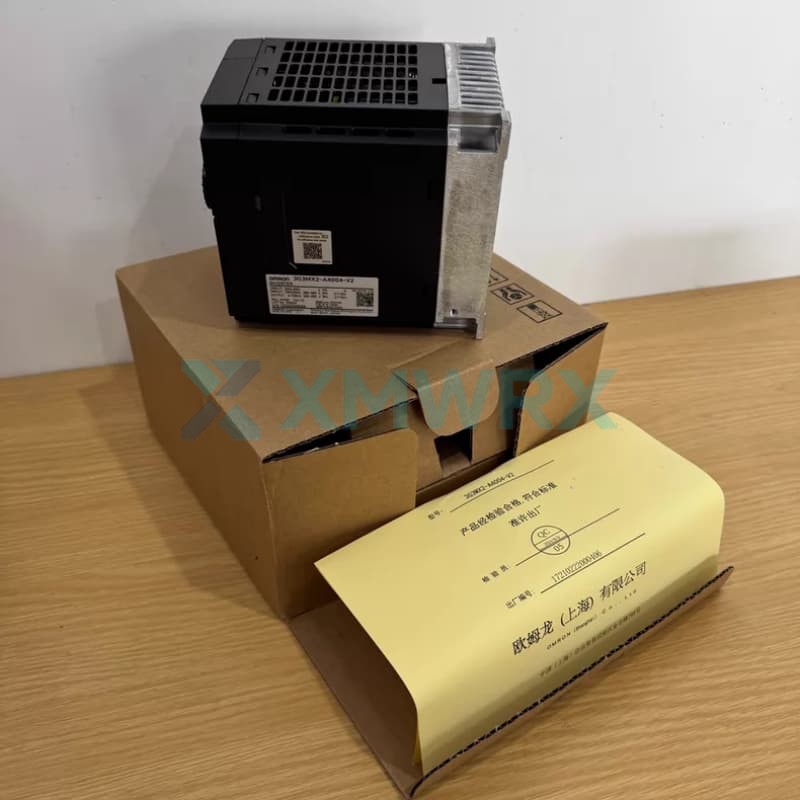

OMRON 3G3MX2-A4004-V2 Compact Multi-Function Variable Frequency Drive (VFD)

Name: OMRON 3G3MX2-A4004-V2 Compact Multi-Function Variable Frequency Drive (VFD)
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original OMRON Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	3G3MX2-A4004-V2
Product Type	Compact Multi-Function Variable Frequency Drive (VFD)
Product Origin	China
Shipping Port	Xiamen
Weight	3.3 lbs

Brand :
OMRON

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The 3G3MX2-A4004-V2 is a compact, multi-functional variable frequency drive (VFD) from Omron's MX2 series.

It is suitable for three-phase 380-480V power supplies, has a rated power of 0.4 kW, an output current of 1.8A, and is designed for base mounting. This drive supports sensorless vector control and V/f control, provides an output frequency up to 590 Hz, and features built-in Modbus communication and Safe Torque Off (STO) functionality.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-performance motor control: Sensorless vector control achieves 200% high starting torque at 0.5 Hz and supports permanent magnet (PM) motor control.
✓ Built-in positioning and logic: Built-in simple positioning function and ladder logic programming enable basic sequential control without the need for an additional controller.
✓ Integrated safety functions: Standard STO (Safe Torque Off) function, compliant with EN ISO 13849-1 Cat.3 PLe standard, enhancing equipment safety.
✓ Flexible communication and I/O: Built-in RS485 Modbus communication, with optional EtherCAT communication unit. Equipped with 10 digital inputs, 4 analog inputs, and 3 relay outputs.

Technical Specifications

Brand	OMRON
Model / Part Number	3G3MX2-A4004-V2
Power Supply Phase/Voltage	Three-phase 380 ~ 480V AC
Applicable Motor Power	0.4 kW (Heavy Load) / 0.75 kW (Light Load)
Rated Output Current	1.8 A (Heavy Load) / 2.1 A (Light Load)
Maximum Output Frequency	590 Hz
Control Method	Sensorless Vector Control, V/f Control
Overload Capacity	150% for 60 seconds (Heavy Load), 120% for 60 seconds (Light Load)
Communication Interface	RS485 (Modbus), EtherCAT (Optional Unit)
Safety Function	STO (Safe Torque Off)
Installation Method	Base Mount (Wall Mount)
Protection Rating	IP20
Dimensions	108 (W) × 128 (H) × 146.5 (D) mm
Mounting Method	DIN rail mounting
Operating Temperature	-10°C to 50°C

Frequently Asked Questions

Q: What equipment is the 3G3MX2-A4004-V2 mainly used in?

A: It is suitable for applications requiring high-performance open-loop control, such as small conveyors, mixers, fans, pumps, elevators, and simple positioning applications. Its compact size and high starting torque are particularly suitable for packaging machinery and material handling equipment.

Q: What programming and setting methods does this inverter support?

A: It can be set locally via the built-in digital operation panel, or managed and programmed via computer using Omron CX-Drive or CX-One software through USB/RS485.

Q: Is an external braking resistor required? What optional accessories are available?

A: An external braking resistor is required (sold separately, model AX-REM00K1400-IE) to achieve rapid deceleration. Common optional accessories also include: LED remote operator (3G3AX-OP01), EtherCAT communication unit (3G3AX-MX2-ECT), input/output reactors, and DC reactors.
