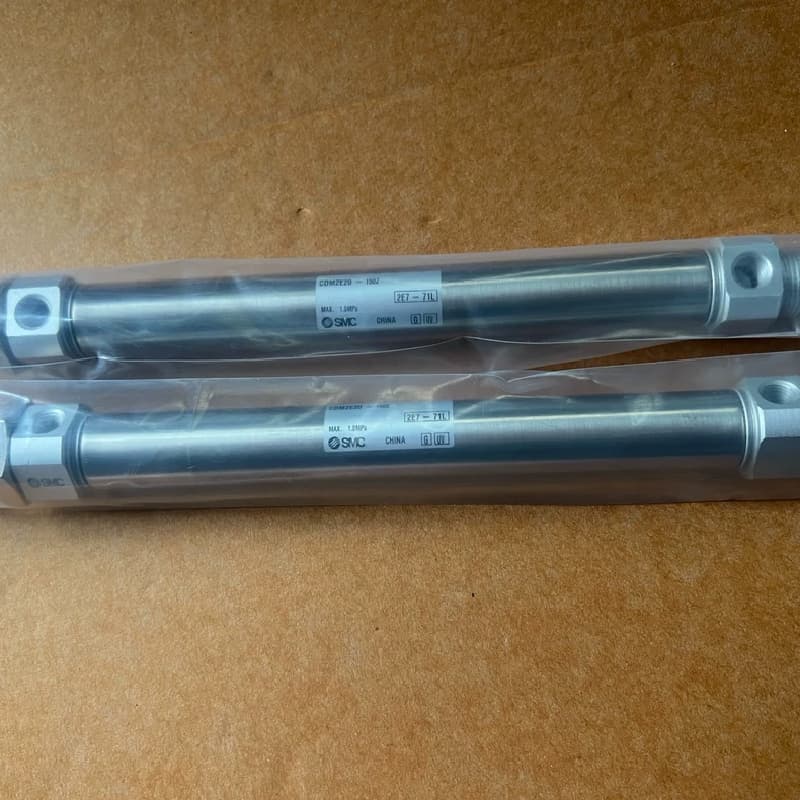

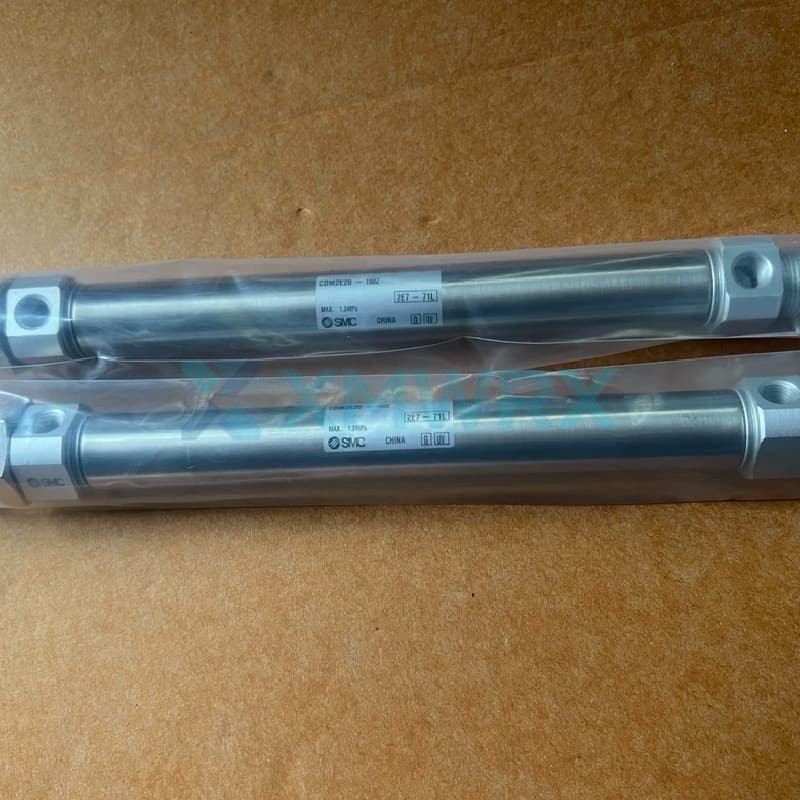

The CDM2B20-150Z is a standard cylinder in SMC's CM2-Z series, featuring a double-acting, single-piston rod design.
It has a 20mm bore, a 150mm stroke, and a stainless steel cylinder body, making it a compact "mini" cylinder. This model includes a built-in magnetic ring for easy installation of a magnetic switch for position detection. The rod end thread is a standardized external thread and comes standard with a rubber buffer.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Provides linear reciprocating motion: Utilizing a double-acting design, compressed air alternately enters and exits on both sides of the piston, driving the piston rod to extend and retract, achieving the pushing and pulling action.
- ✓ Compact design: As a mini cylinder, its small size makes it suitable for use in automated equipment with limited installation space.
- ✓ Built-in magnetic ring for easy position detection: The built-in magnetic ring allows it to work with an external magnetic switch to output a signal indicating that the piston has reached a designated position, facilitating automated control.
- ✓ Smooth operation and cushioning: Standard rubber cushioning effectively absorbs shock at the end of the stroke, reducing noise and vibration.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MDBB40-50Z |
| Cylinder Bore |
20 mm |
| Stroke |
150 mm |
| Actuation type |
Double-acting, single piston rod |
| Operating pressure |
0.05 - 1.0 MPa |
| Ambient temperature |
-10℃ ~ 60℃ |
| Piston Speed |
50 ~ 750 mm/s |
| Guaranteed pressure resistance |
1.5 MPa |
| Port diameter |
Rc 1/8 |
| Piston rod thread |
M8 x 1.25 (external thread) |
Frequently Asked Questions
Q: What are its theoretical thrust and pull forces at 0.5 MPa pressure?
A: According to technical data, at an operating pressure of 0.5 MPa, its theoretical thrust (when extended) is approximately 157 N, and its theoretical pull force (when retracted) is approximately 132 N.
Q: In what environments is this cylinder suitable for use?
A: It is a standard cylinder suitable for use in typical industrial environments. Its stainless steel cylinder barrel provides it with a degree of corrosion resistance. SMC also offers optional models for special environments, such as versions using fluororubber seals (XC22), stainless steel piston rods (XC6), or food processing grease (XC85).
Q: How to install a magnetic switch on the CDM2B20-150Z?
A: This model has a built-in magnetic ring and is specifically designed for installing magnetic switches. SMC offers a variety of magnetic switch options for the CM2-Z series, such as models M9B, M9N, and M9P, and the magnetic switches are very easy to adjust.
