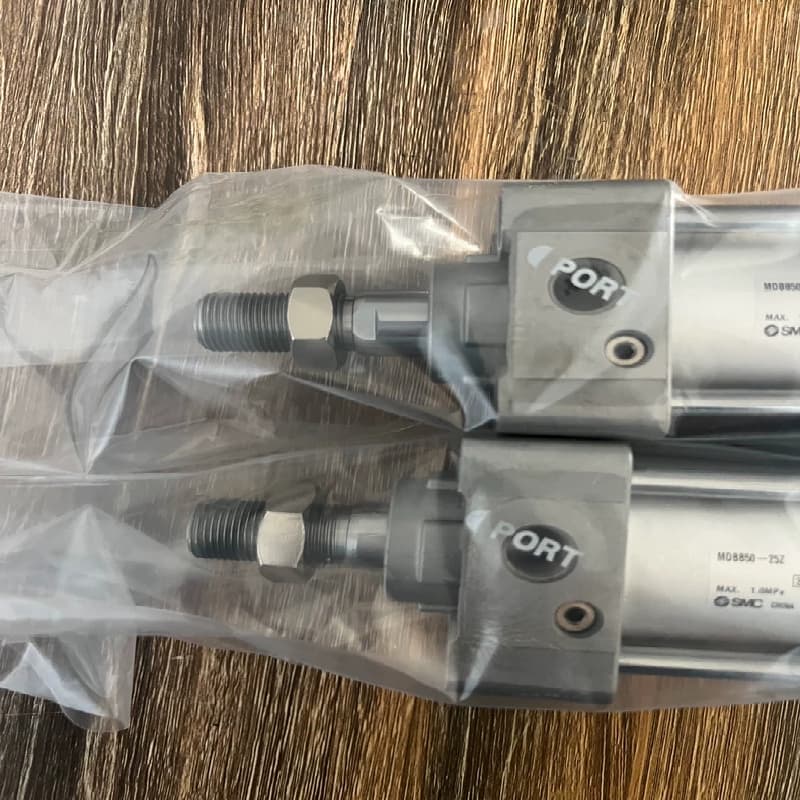

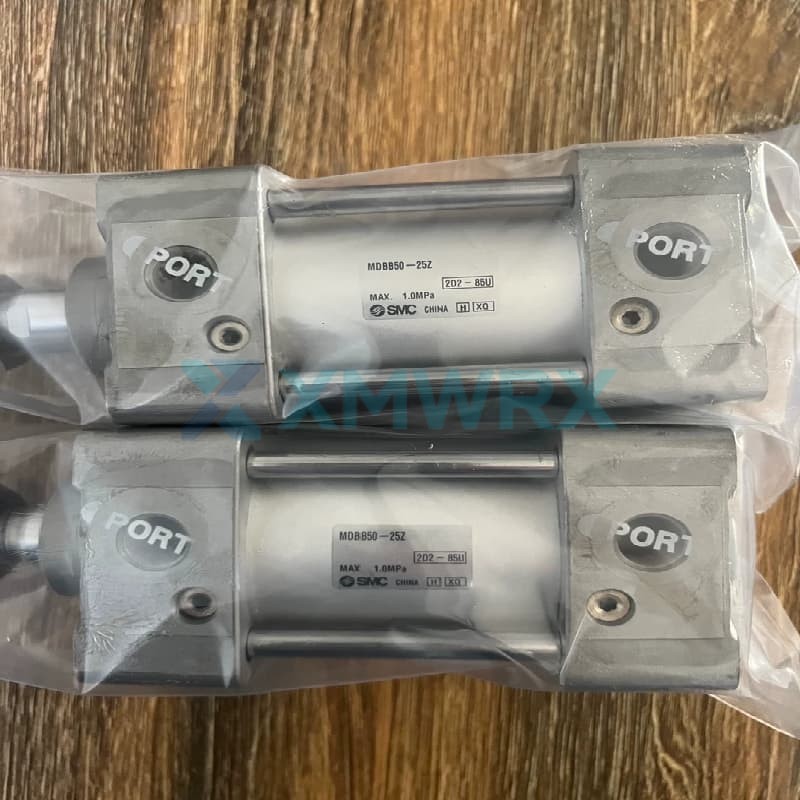

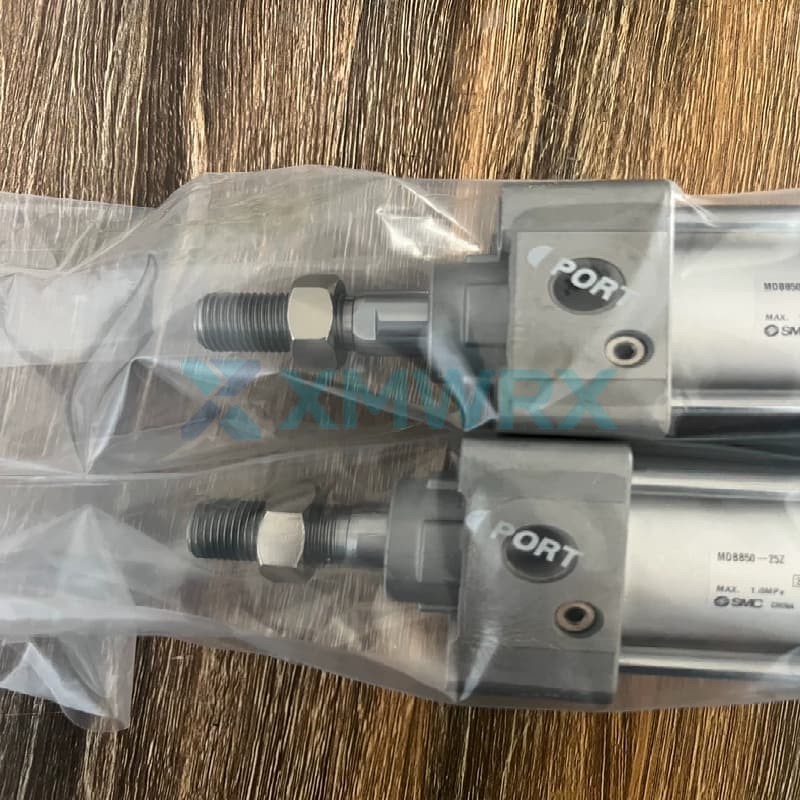

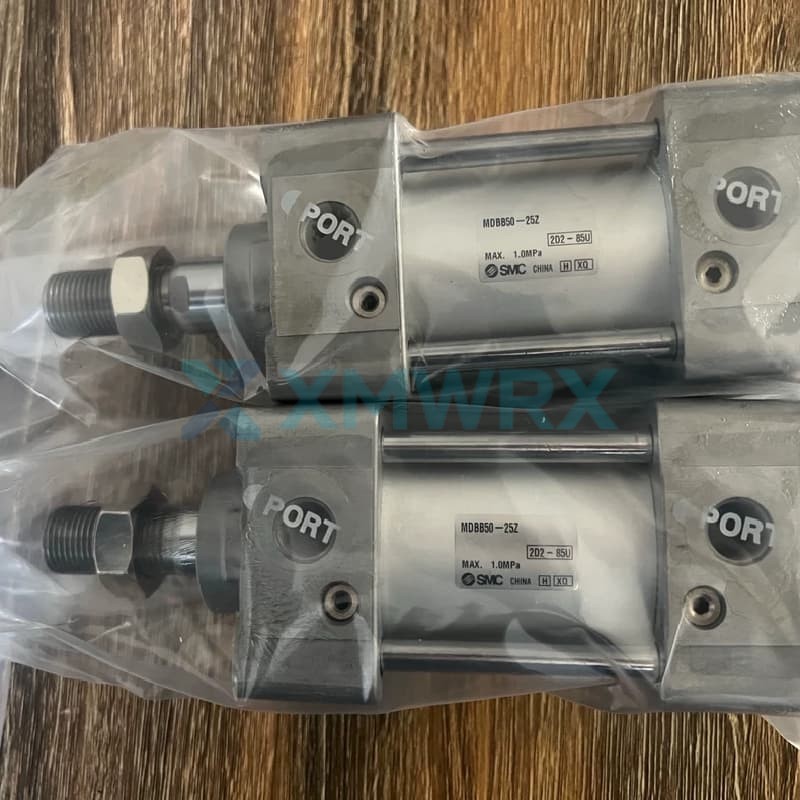

The MDBB50-25Z is a standard tie-rod cylinder from SMC's MB-Z series, featuring a double-acting, single-piston rod design.
It has a built-in magnetic ring for position detection via a magnetic switch, a 50 mm bore, and a 25 mm stroke. Equipped with a pneumatic damping device, this cylinder is suitable for automated equipment requiring smooth push-pull movements.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Provides linear power: Alternating intake and exhaust on both sides of the piston drive the piston rod to extend and retract, achieving the push-pull motion.
- ✓ Built-in magnetic ring for easy control: The built-in magnetic ring can work with an external magnetic switch to output piston position signals, facilitating automated control.
- ✓ Smooth stopping and cushioning: The standard air cushion slows the piston speed at the end of the stroke, effectively reducing shock and vibration.
- ✓ Lightweight design: Optimized cylinder head shape results in a lighter weight than the previous model, helping to reduce the overall load on the equipment.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MDBB50-25Z |
| Cylinder Bore |
50 mm |
| Stroke |
25 mm |
| Actuation type |
Double-acting, single piston rod |
| Operating pressure |
0.05 - 1.0 MPa |
| Ambient temperature |
-10℃ ~ 70℃ |
| Piston Speed |
50 - 1000 mm/s |
| Buffer type |
Pneumatic buffer |
| Cylinder material |
Aluminum alloy |
| Built-in magnetic ring |
Yes (Type D) |
| Port diameter |
Rc 1/4 |
| Piston rod thread |
M18 x 1.5 |
Frequently Asked Questions
Q: What are its theoretical thrust and pull forces at 0.5 MPa pressure?
A: According to technical data, at an operating pressure of 0.5 MPa, its theoretical thrust (when extended) is approximately 980 N, and its theoretical pull force (when retracted) is approximately 825 N.
Q: In what scenarios is this cylinder suitable for use?
A: It is a general-purpose standard cylinder, widely used in industrial automation equipment requiring medium-load linear push-pull motion, such as in automotive manufacturing, semiconductors, electronics, machine tools, food packaging, and printing.
Q: Can the MDBB50-25Z be fitted with a magnetic switch?
A: Yes. This model has a built-in magnetic ring and is specifically designed for mounting magnetic switches. It can be equipped with SMC's M9B, M9BW, and M9BAL magnetic switches.
